4. TROUBLE SHOOTING
- 135 -

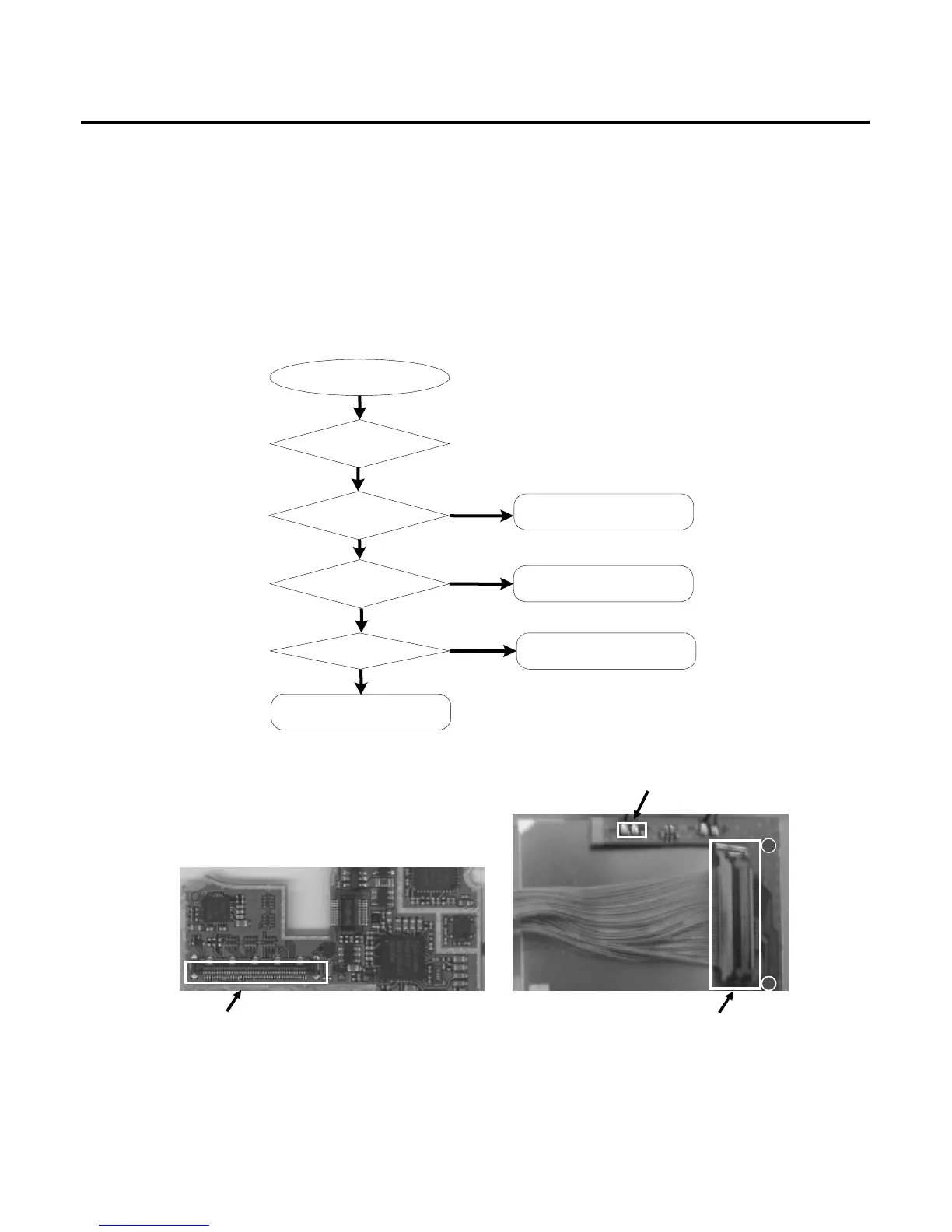

4.20 Vibrator trouble
Vibrator control signal (MOTOR_PWR-) is generated by PM6650. That signal’s path is :
Pin 25 of PM6650 → CN801 PIN 36 of Main PCB → CN101 PIN 36 of LCD Sub PCB
→ TP103 of LCD Sub PCB
Start
Change the Main PCB
Connect LCD Wire Connetor
YES
YES
YES
NO
NO
The vibrator
Donít working?
YES
Change the LCD Sub PCB
Change the LCD Module
Resolder Vibrator
Or Change the Vibrator
Vibrator Solderling
and vibrator itself OK?
NO
CN101 of LCD Sub PCB
CN801 of Main PCB
Vibrator Soldering Check Point
1
40
Is the LCD Wire Connector
appropriately Connected?
