3.5.10 Bluetooth (M100 : LBDA254FJ0, ANT100 )
The MSM6275 includes BT baseband embedded BT 1.1 compliant baseband core, so the other
bluetooth components are an bluetooth RF module and Antenna. Figure3.5.10-1 shows the bluetooth
system architecture in the KU950.
3. TECHNICAL BRIEF
- 34 -

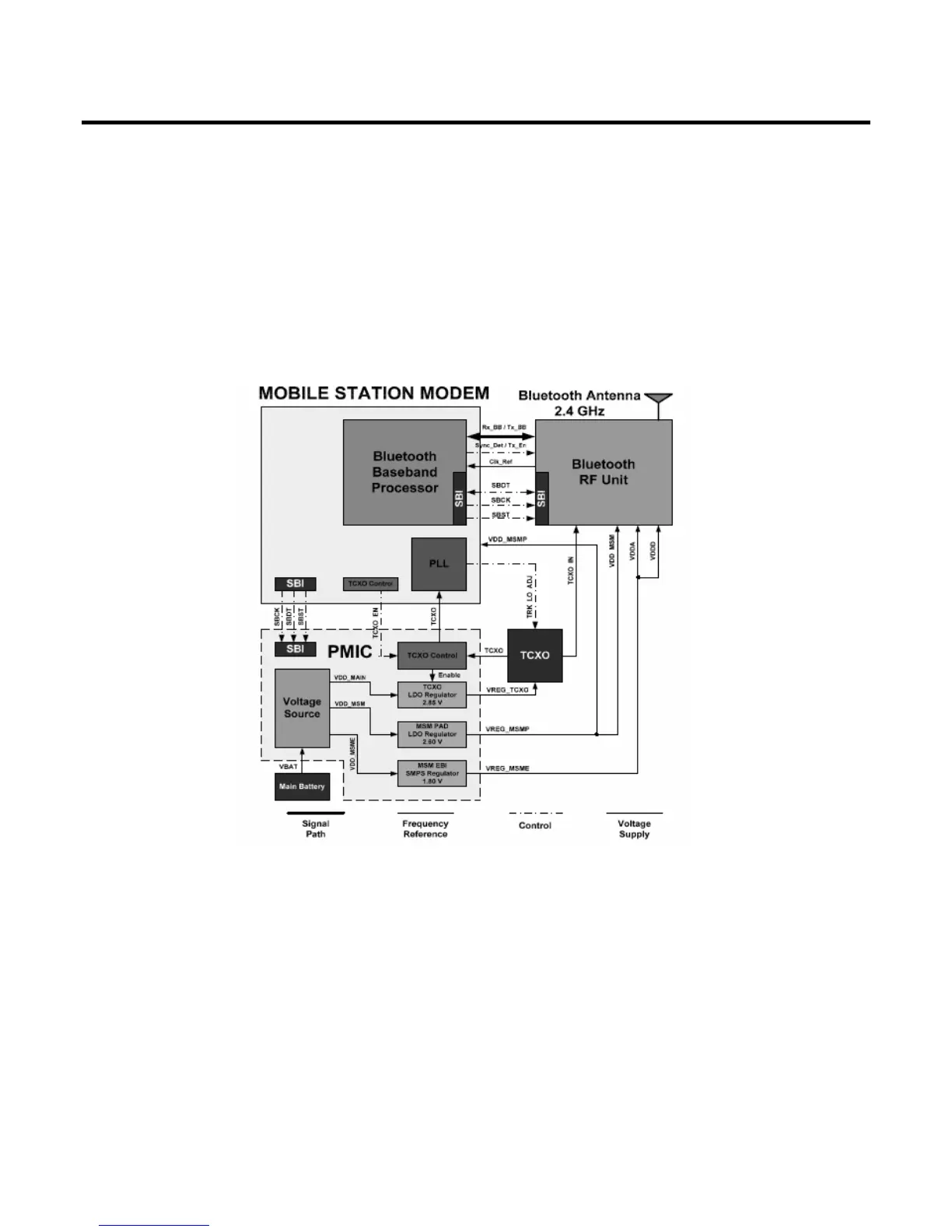

Figure3.5.10-1 Bluetooth system architecture
