MAKING CONNECTIONS

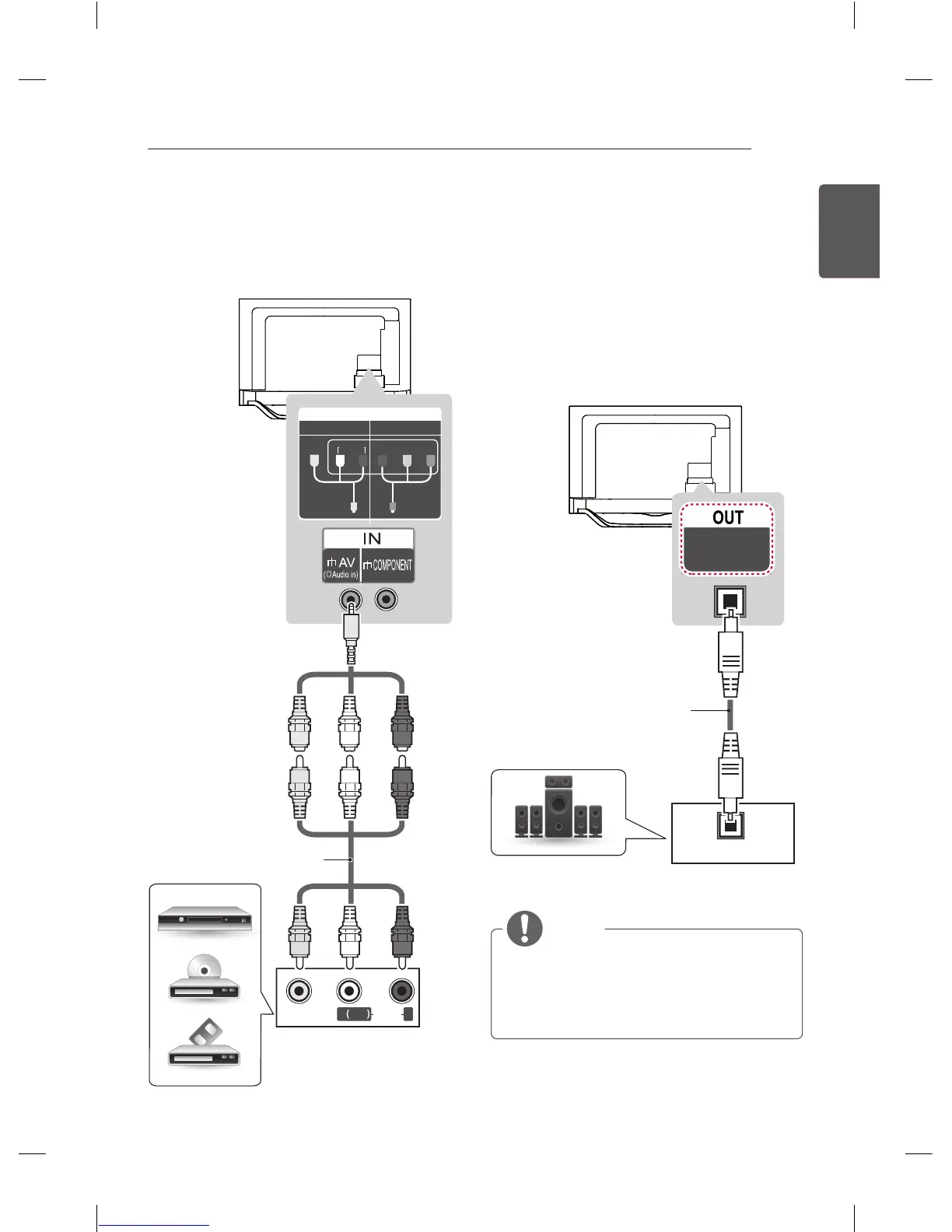

Composite connection
Transmits analog video and audio signals
from an external device to the TV. Connect the
external device and the TV with the composite
gender cable as shown.
VIDEO
MONO
( )
AUDIO
L R
COMPONENT
PB
Y
IN
COMPONENT
YP B AUDIO
AV
P R VIDEO
VCR / DVD / Blu-Ray /
HD Cable Box
RED RED
RED
WHITE
WHITE WHITE
YELLOW
YELLOW YELLOW
(Use the composite video
cable provided.)
(*Not Provided)
YELLOW
Audio connection
You may use an optional external audio system
instead of the built-in speaker.
Digital optical audio connection
Transmits a digital audio signal from the TV to an
external device. Connect the external device and
the TV with the optical audio cable as shown.
OPTICAL AUDIO IN
OPTICAL
DIGITAL
AUDIO
(*Not Provided)
Digital Audio System
NOTE
y
Do not look into the optical output port.
Looking at the laser beam may damage
your vision.
y
Audio with ACP (Audio Copy Protection)
function may block digital audio output.
