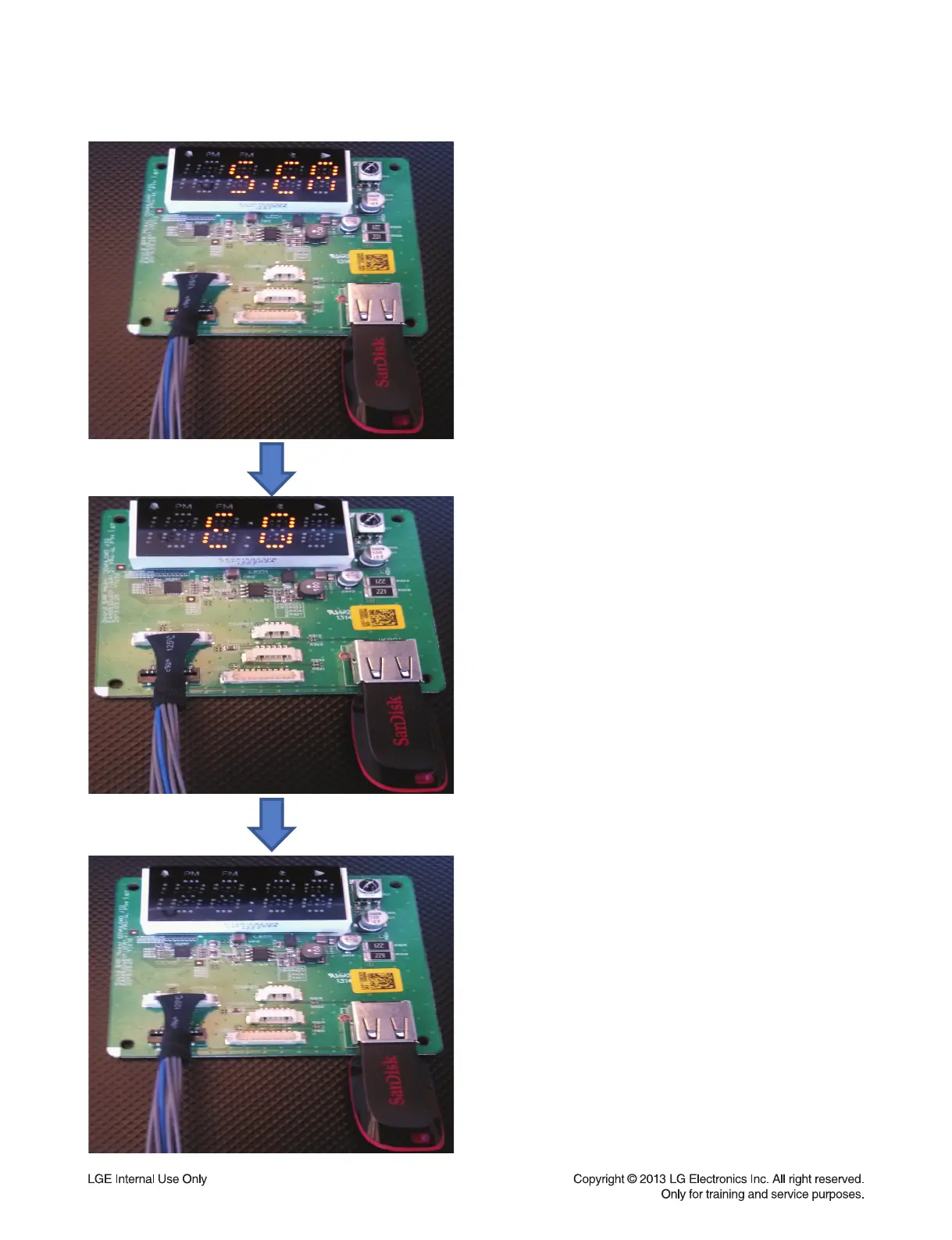

5) After “USB” display, “SER” will be display.
6) “EQ” display during update.
It will take less then 1 minute.
7) After update, display jig and main set will be
power off.
After update, please remove the display jig
and cable from main set.
