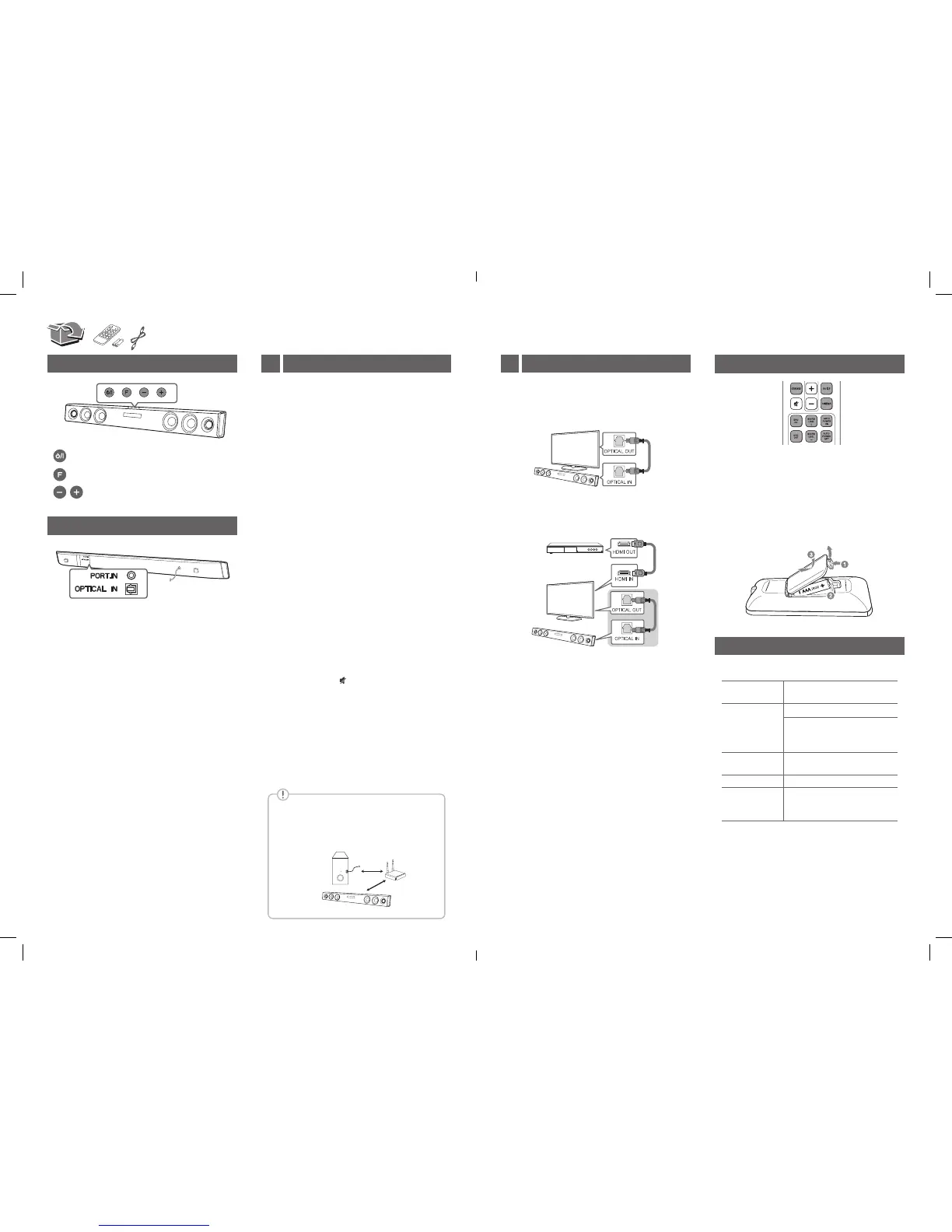

Front Panel
Rear Panel
·······························Power On /Off
····························· Selects Function
·························Adjusts Volume
PORT. IN ············ Connect to a Portable device
OPTICAL IN ··········Connect to an Optical device
Subwoofer Connection
1
Place the wireless subwoofer near the sound bar and
follow steps below.
a Connect the power cord of wireless
subwoofer to the outlet.
b Turn on the sound bar :
The sound bar and wireless subwoofer will be
automatically connected. The subwoofer's
yellow - green LED turns on..
Subwoofer Connection Manually
a Reset the Subwoofer
If the yellow - green LED on the subwoofer
blinks quickly, skip this step and go to
b
y
Press and hold PAIRING button for 5
seconds.
y
The LED lights up alternately in red and
yellow - green.
y
Unplug the power cord. Then after the LED
turns off completely, plug in the power cord in
again.
When the reset is completed, the subwoofer's
yellow - green LED blinks quickly.
b Reset the sound bar
y
Adjust volume to minimum until the red LED
on the sound bar lights up for a while.
y
Press and hold
(Mute) button on the remote
control for 3 seconds.
y
The red LED on the sound bar will blinks
quickly.
y
Turn the sound bar’s power off, then back on
again whilst the subwoofer’s LED blinks
yellow - green
When the connection is completed, you can see the
yellow - green LED on the subwoofer.
Keep the sound bar and the subwoofer 1m
or more away from other device (ex. wireless
router, microwave oven, etc.) to prevent any
wireless interference.
!P
a Connect the the sound bar to the TV using
Optical cable.
b Set up [External Speaker (Optical)] on your TV
setting menu.
TV
TV Connection
2
Remote control
Addtional Device Connection
a Connect to the external device as follows.
TV
(Set-top
Box, Player
etc.)
b Set the input source by pressing F on the
remote control or unit repeatedly.
Remote Control
Additional Information
Specication
Power
requirements
Refer to the main label.
Power
consumption
Refer to the main label.
Networked standby : 0.5 W
(If all network ports are
activated.)
Dimensions
(W x H x D)
Approx.
950 mm x 71 mm x 47 mm
Net Weight Approx. 2.47 kg
Amplier
(Total RMS
Output power)
200 W
Design and specications are subject to change
without notice.
How to disconnect the wireless net-
work connection or the wireless device
Set up the AUTO POWER ON/OFF function to off
and turn off the unit.
STANDARD/VOICE/CINEMA : Selects sound effect.
DRC ON/OFF: Makes comfortable sound at Dolby Digital.
WOOFER LEVEL +/-: Adjusts the volume level of sub-
woofer.
AUTO POWER ON/OFF: Automatically turns on by an
input source.
Replacement of battery
