LG LB670V - DVI to HDMI Connection

36
ENGLISH
MAKING CONNECTIONS

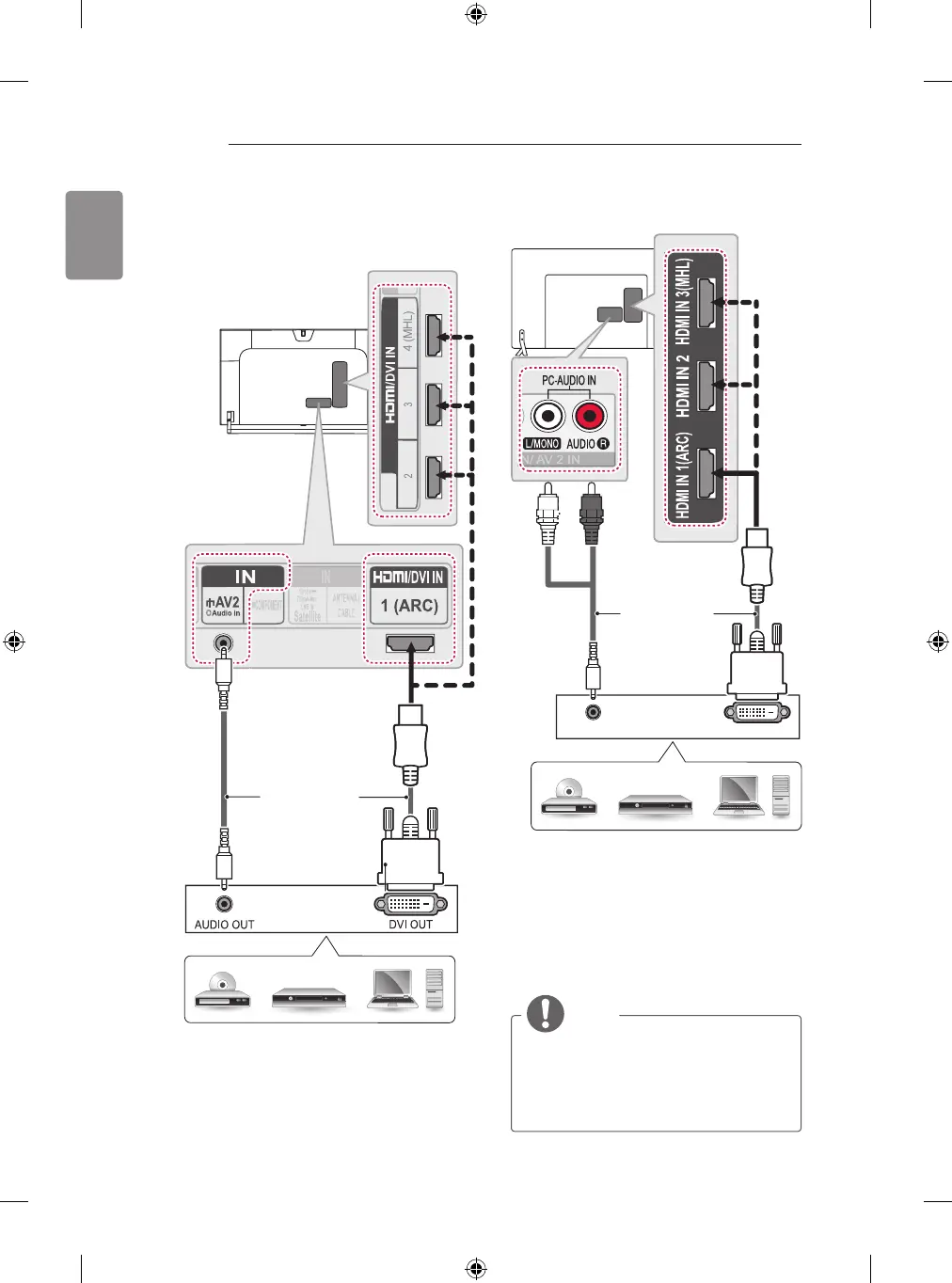

DVI to HDMI connection
(Only LB86**, LB87**)
DVD/ Blu-Ray / HD Cable Box / HD STB / PC
(*Not Provided)
YELLOW
(Only LB63**, LB65**, LB67**, LB68**, LB69**,
LB72**, LB73**)
DVI OUT
AUDIO OUT
DVD/ Blu-Ray / HD Cable Box / HD STB / PC
RED
WHITE
(*Not Provided)
Transmits the digital video signal from an external
device to the TV. Connect the external device and
the TV with the DVI-HDMI cable as shown. To
transmit an audio signal, connect an audio cable.
Choose any HDMI input port to connect. It does
not matter which port you use.
NOTE
y
Depending on the graphics card, DOS
mode may not work if a HDMI to DVI Cable
is in use.
y
When using the HDMI/DVI cable, only
Single link is supported.
