MAKING CONNECTIONS

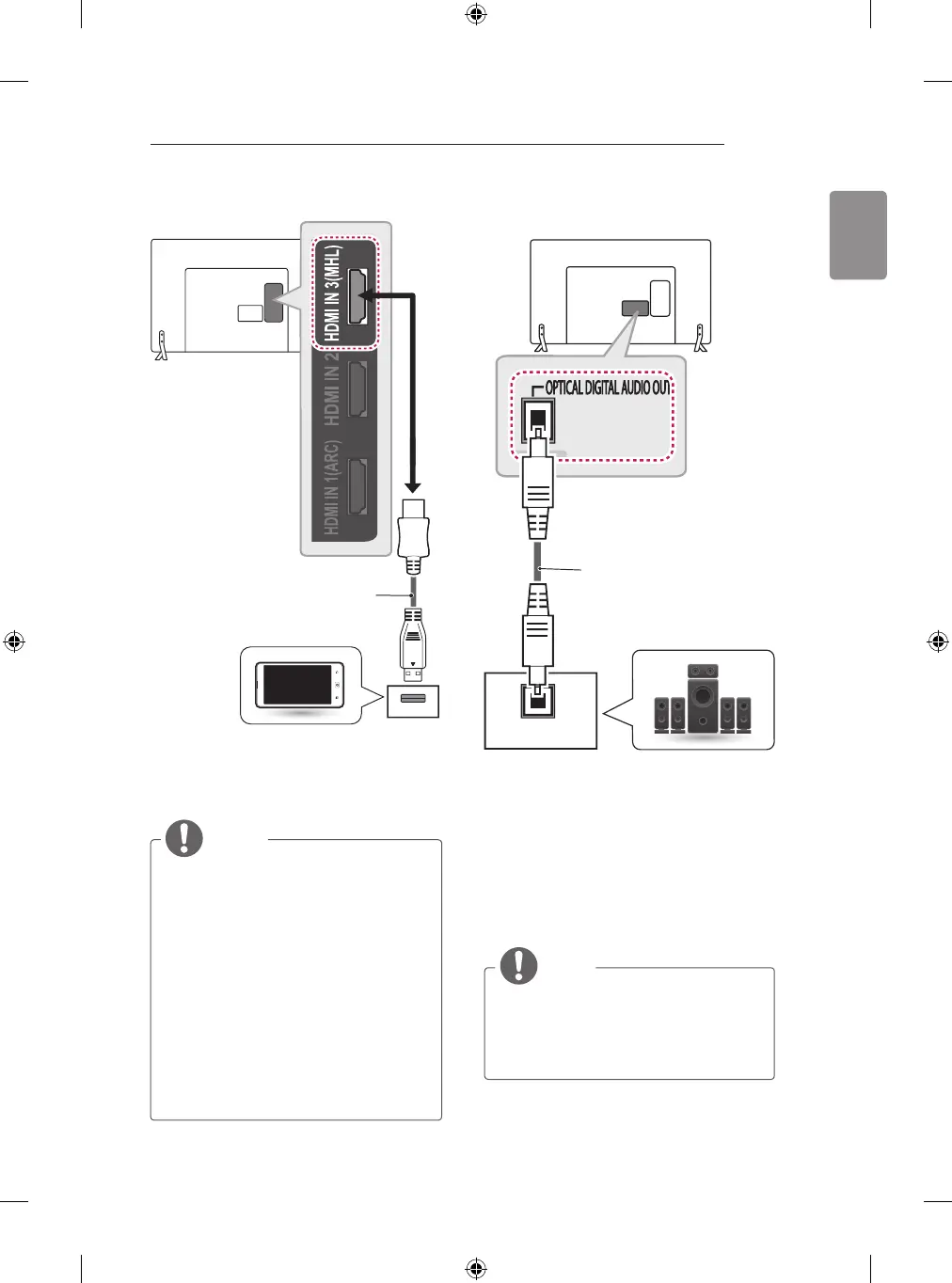

MHL connection
MHL passive cable
(*Not Provided)
Mobile phone
Mobile High-definition Link (MHL) is an interface
for transmitting digital audiovisual signals from
mobile phones to television sets.
NOTE
y
Connect the mobile phone to the HDMI IN
3 (MHL) or HDMI/DVI IN 4 (MHL) port to
view the phone screen on the TV.
y
The MHL passive cable is needed to
connect the TV and a mobile phone.
y
This only works for the MHL-enabled
phone.
y
Some applications can be operated by the
remote control.
y
For some mobile phones supporting MHL,
you can control with the
Magic Remote.
y
Remove the MHL passive cable from the TV
when:
-
the MHL function is disabled
-
your mobile device is fully charged in
standby mode
Audio connection
OPTICAL AUDIO IN
/P OUT
Digital Audio System
(*Not Provided)
You may use an optional external audio system
instead of the built-in speaker.
Digital optical audio connection
Transmits a digital audio signal from the TV to an
external device. Connect the external device and
the TV with the optical audio cable as shown.
NOTE
y
Do not look into the optical output port.
Looking at the laser beam may damage
your vision.
y
Audio with ACP (Audio Copy Protection)
function may block digital audio output.
