LG LCF600UN User Manual

CAR CD/MP3/WMA Receiver 7
Installation
A
A
If there is already an installation
sleeve for the receiver unit in the
dashboard, it must be removed.
1 Remove the rear support from the
unit.
2 Remove the control panel and trim
ring from the unit.
3 Insert the lever A into the hole on
one side of the unit.
Perform the same operation on
the other side and pull the unit out
from the mounting sleeve.
5
4
3
1
2
6
Control panel
1 Slide the unit into the ISO-DIN
frame.
2 Fit screws removed from the old
unit.
3 Slide the unit and frame into the
dash opening.
4 Install the dash panel or adapter
plate.
5 Install the trim ring to the unit.
6 Install the control panel to the unit.

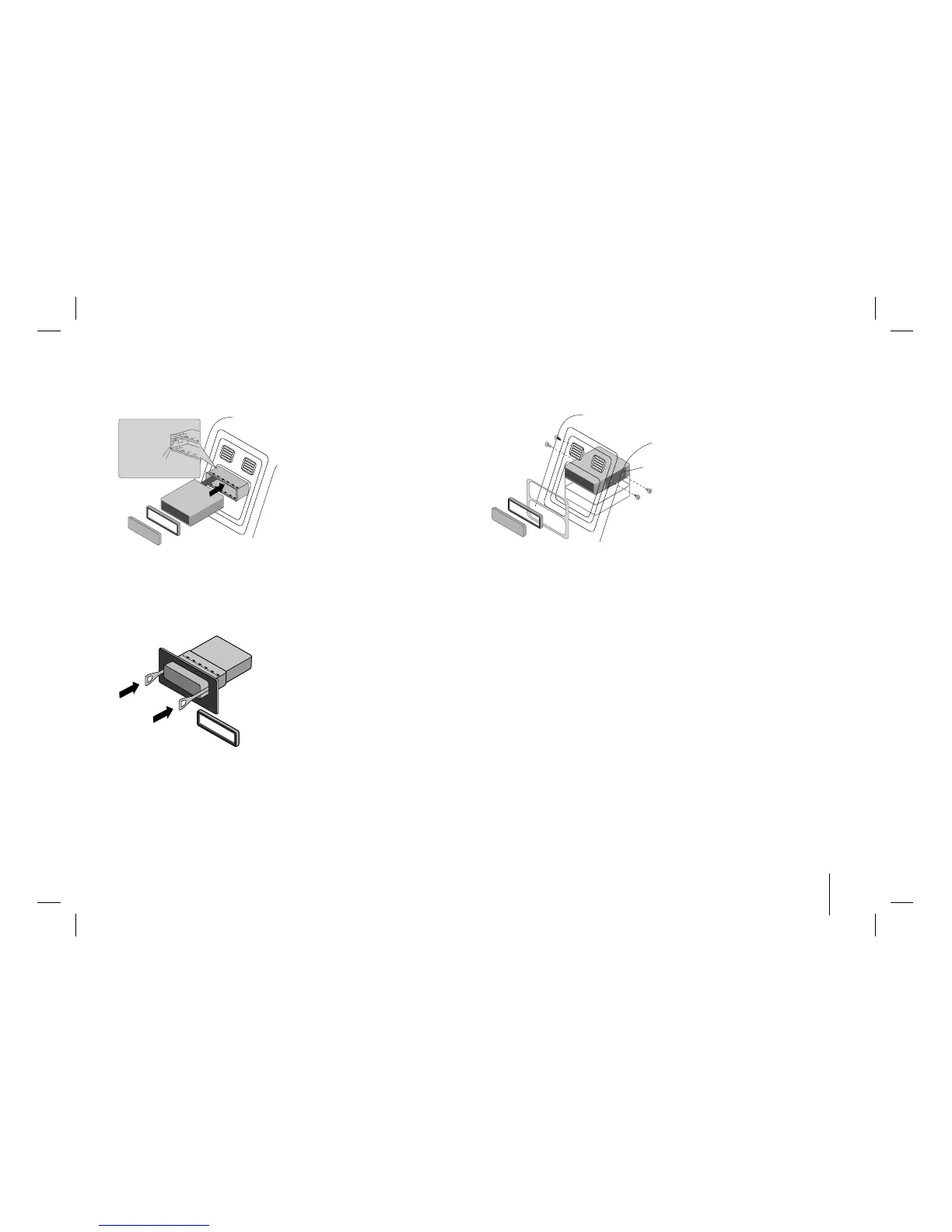

Removing the existing receiver unit
ISO-DIN Installation
Before installing, make sure that the
ignition-switch is set to OFF and
remove the terminal of the car battery
to avoid short-circuiting.
1 Remove the existing receiver unit.
2 Make the necessary connections.
3 Install the installation sleeve.
4 Install the unit into the installation
sleeve.
Bend the claws
according to
the thickness
of the
dashboard
Control panel
Basic Installation
