CAR CD/MP3/WMA Receiver

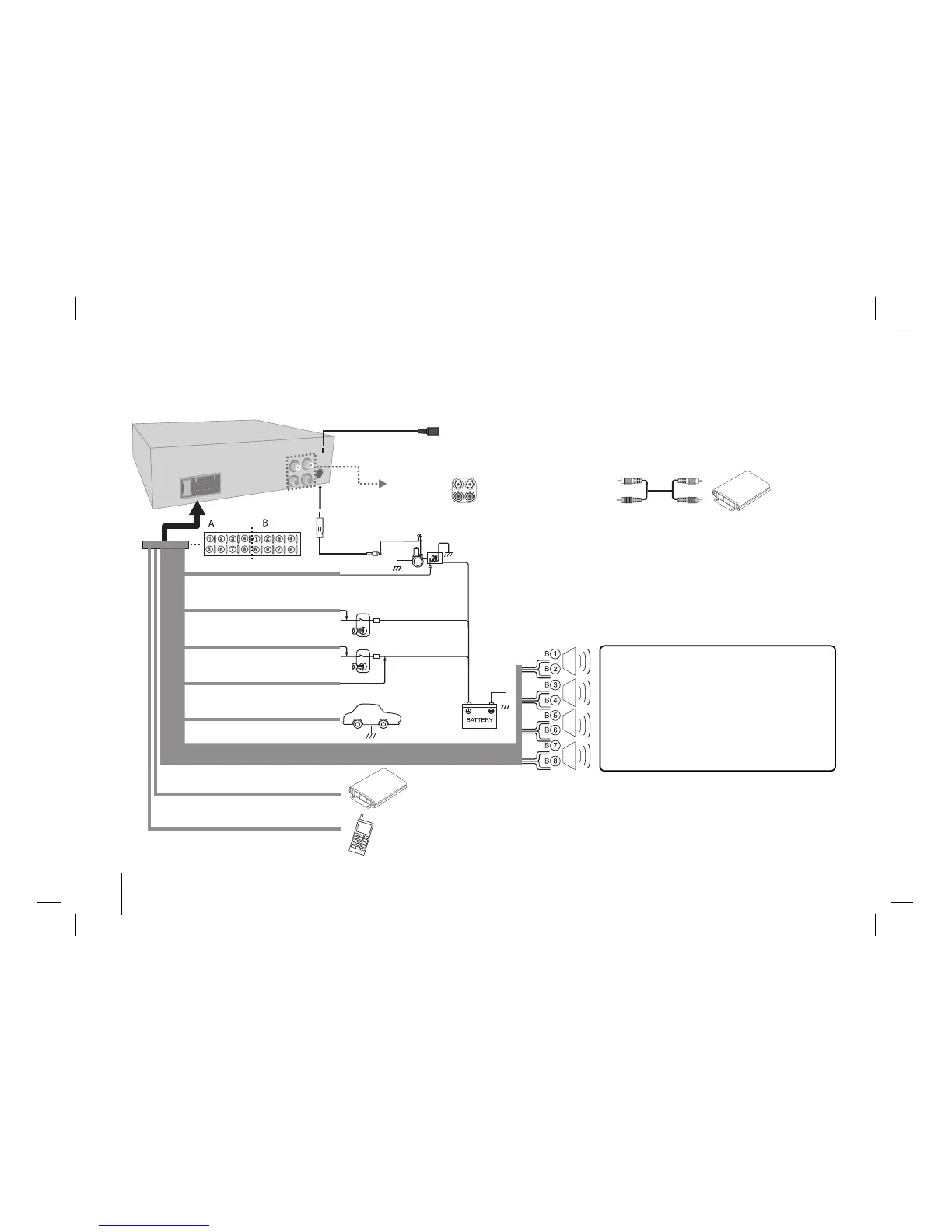

Connection
Before connecting, make sure that the ignition switch is set to OFF, and remove the battery # terminal to avoid short circuits.
A 8 Power Antenna(Blue)
A 7 Dimmer(Pink)
A 2 To Ignition(Red)
A 1 To Battery(+)(Yellow)
A 5 Ground(-)(Black)
Power
Antenna
Control Relay
Ignition Switch
Dimmer Switch
A 4 Phone Mute(Orange)
A 3 Remote On(Blue/White)
Front Left
Front Right
Rear Left (Sub-woofer Left)
Rear Right (Sub-woofer Right)
*Sub-woofer is optional.
To Audio out (OPTIONAL)
To Audio in (OPTIONAL)
Amplifier
(OPTIONAL)
B 1 Violet / Black Stripe : Rear Right –
B 2 Violet : Rear Right +
B 3 Gray / Black Stripe : Front Right –
B 4 Gray : Front Right +
B 5 Green/ Black Stripe : Rear Left –
B 6 Green : Rear Left +
B 7 White/Black Stripe : Front Left –
B 8 White : Front Left +
Amplifier
(Optional)
A 6 Not connected
Wired mic
