1. If the end of drain hose does not fit to the
drain line, use a rubber connector(not
supplied) that is resistant to heat and
detergent.
2. This should be available from a plumbing
shop or a hardware store.

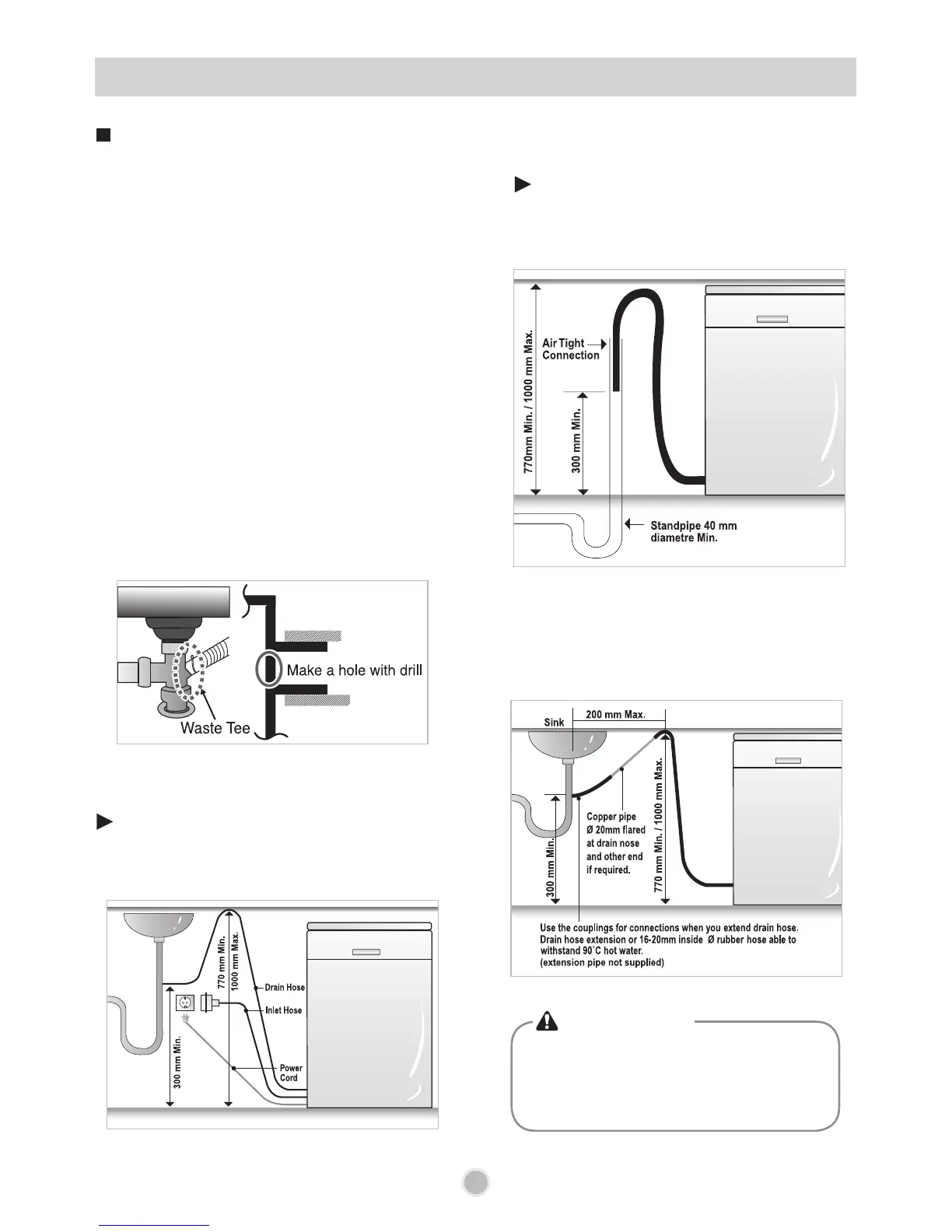

3. There are two typical connections as shown
in Figure A, B.
The S trap spigot must be drilled out cleanly
and free of obstruction to its maximum
internal diameter, if used for drainage.
To prevent siphoning, one of the following
methods must be used:
Check the waste spigot when initially installing.
An “OE” error can occur when the waste spigot
below the sink is not drilled out properly.
Please ensure the waste spigot connection to this
drain hose has been completely drilled out before
connecting and securing.
Connection to Waste spigot
When the drain hose is connected to a sink S
trap or waste disposal unit, the hose must be
looped up to the underside of the bench top
and secured.
Drain hose Extension
Extend drain hose as shown below.
Fig. A
When the drain hose is connected to a
separate standpipe, it is essential that an
airtight connection be made.
Refer to Fig.B
Fig. B : Drainage connection - stand pipe.
9
INSTALLATION INSTRUCTIONS
Installation of drain hose
•
When you connect or extend drain hose,
make sure that the drain hose is not
kinked.
(Bends should have a 40 mm radius.)
CAUTION
To Next Page
