8) Aqua Stop
① Press the holder hook.
② Pull the hose assembly.
9) Drain Hose
① Press the rear side hook.
② Pull the holder forward.
③ Pull the holder upward.

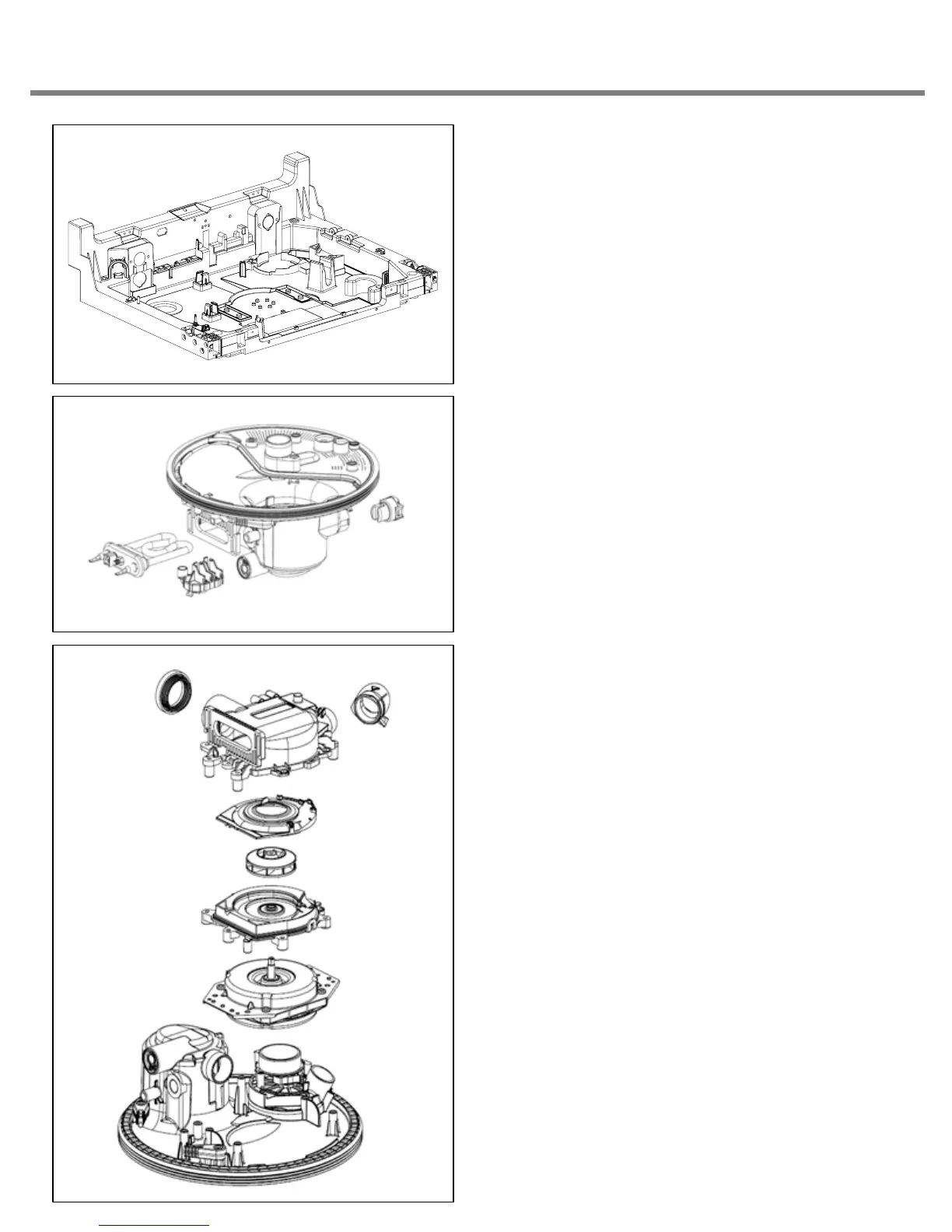

9. Sump Assembly
1) Heater
① Remove the wire connections.
② Pull the heater out of the sump after
releasing the nut.
2) Pressure Switch & Soil Sensor
① Remove the wire connections.
② Disconnect 1 hose assembly.
③ Remove 1 screw.
④ Pull up Pressure Switch and Soil Sensor.
3) Impeller & Washing Motor
① Remove 4 screws & 1 hose assembly.
② Lift up pump assembly.
③ Remove 6 screws.
④ Remove 1 screw under a motor.
⑤ Lift up 2 pump cases.
⑥ Remove 1 screw.
⑦ Lift up impeller.
⑧ Remove 1 screw under a motor.
⑨ Lift up pump cover.
To Next Page
