10. CALIBRATION
- 143 -
Copyright © 2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only

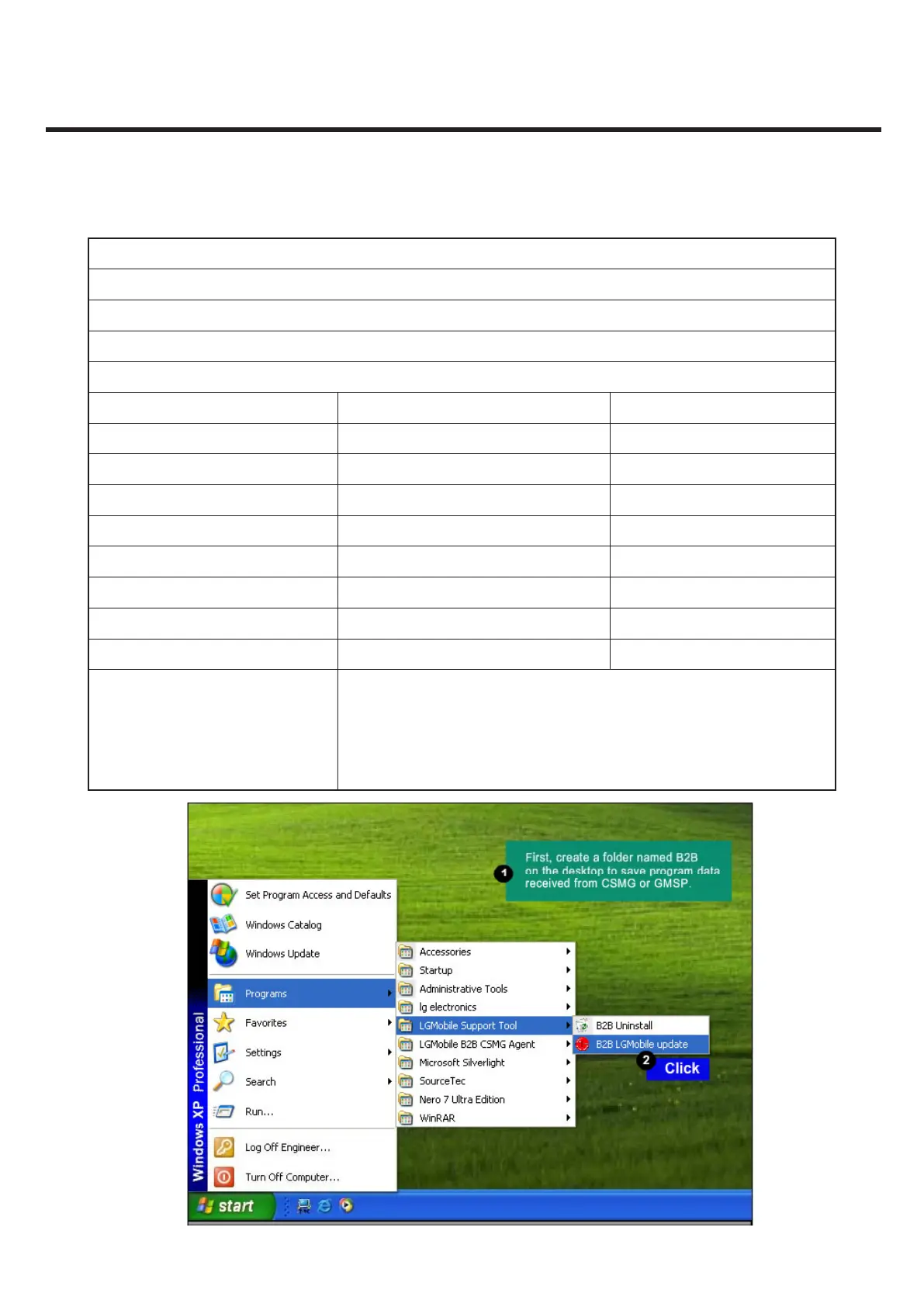

10. CALIBRATION
CAL INFORMATION
S/W VERSION
[TachyonV42] LGE410 20130712 ALL File Calibration
Please Check the Version to “B2B”
H/W
Name Part No.
PIF PIF200(All Type) BJAY0024021
USB Cable USB Cable RAD32247898
Power Cable DC Power Cable RAD32247878
I/O Cable 5P E-SATA_DC_Plug RAD32167861
RF Cable_Main MS-156C BJAY0024004
Power Supply_PIF Power Supply 5.3V
Power Supply_Phone Power Supply 5.0V
RF Test Equipment E5515C(8960)
NOTICE
1. Use the Battery (Refer to Attached ppt)
1) Phone states: Power o
2) If do not use the battery, TX fails.
2. Port Setting (Refer to Attached ppt)
1) Uart Port1 : Use the “LGE CDMA USB Serial Port”
To Next Page
