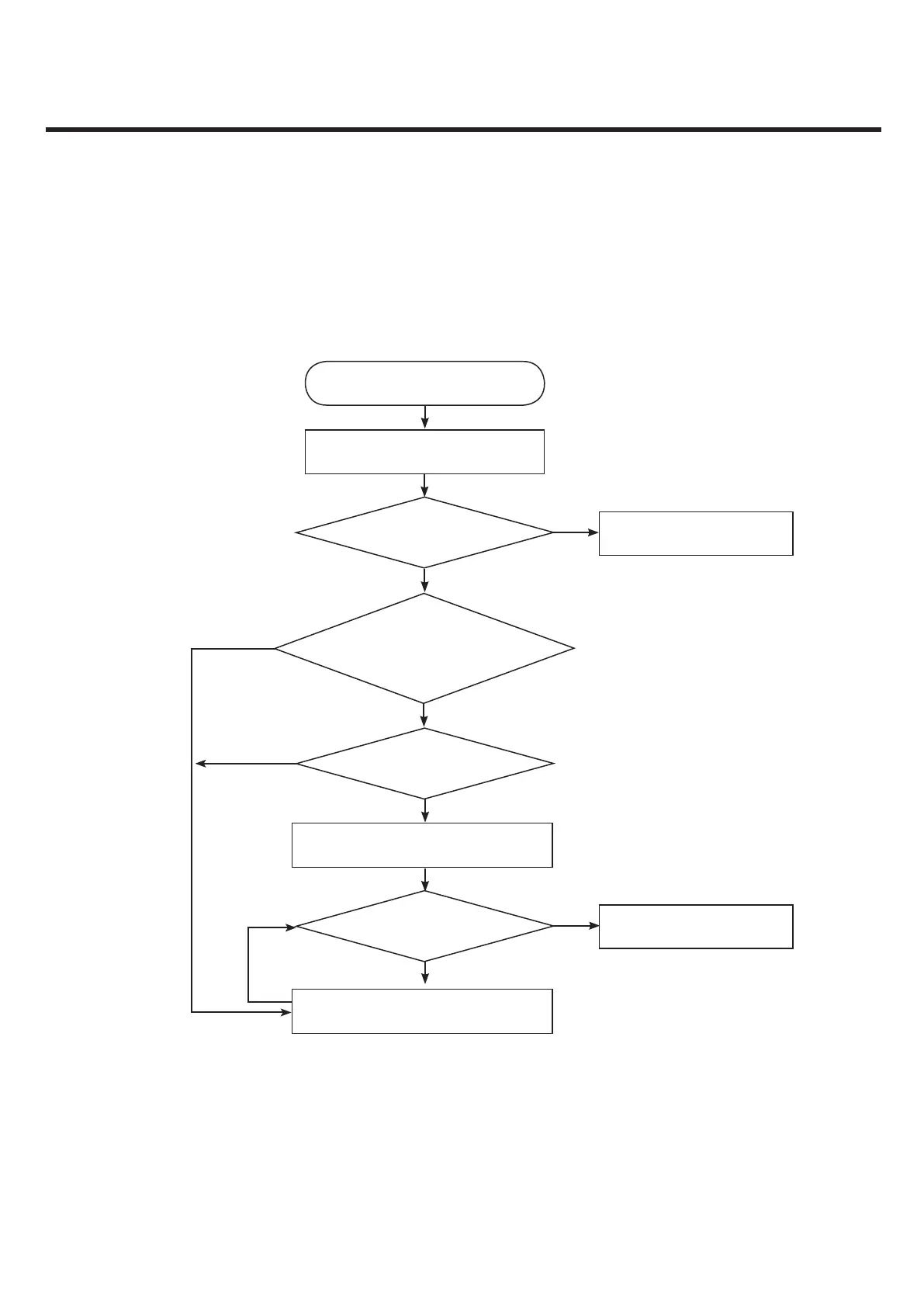

4.12 2M FF Camera Trouble Shooting
2M camera control signals are generated by MSM7225A.
Check the camera Conn.
and reconnect the camera
No
No
END
END
Yes
Yes
START
Yes
Change the camera
Change the Main board
No
No
Yes
MSM7227 output
signal check MCLK(TP1), Reset(TP2),
PWDN(TP3)
Camera is OK?
Check IOVDD(TP4),
DVDD(TP5), AVDD(TP6)
Camera is OK?
