4. TROUBLE SHOOTING
- 79 -
Copyright © 2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
4.14 Proximity Sensor on/o Trouble Shooting
Proximity Sensor is worked as below :
Call connected -> Object moved at the sensor -> Control the screen’s on/o operation automatically
Measurement
VREG_MSME_1.8V
VREG_PROX_3.0V
PROX_OUT
PROX_I2C_SCL / SDA

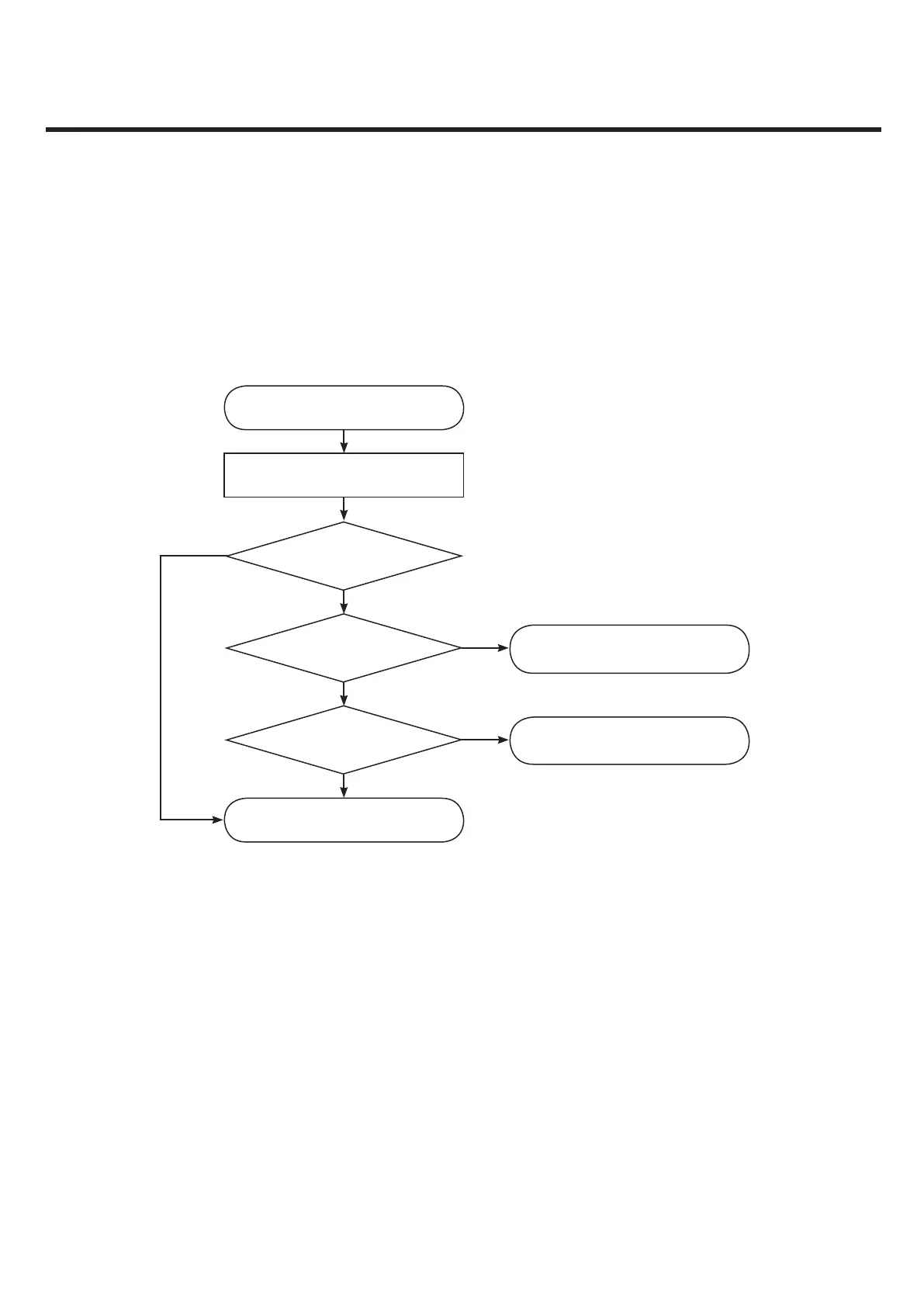

Call Connect & Object moved at the
Proximity Sensor
LCD o?
No
No
Yes
Work well?
START
END
Change the
Proximity Sensor (U9002)
No
Yes
Chang the main board
Yes
Check PROX_I2C_SDA /
SCL Output & Prox_out
(TP1,2,3)
