4.13 Main LCD trouble

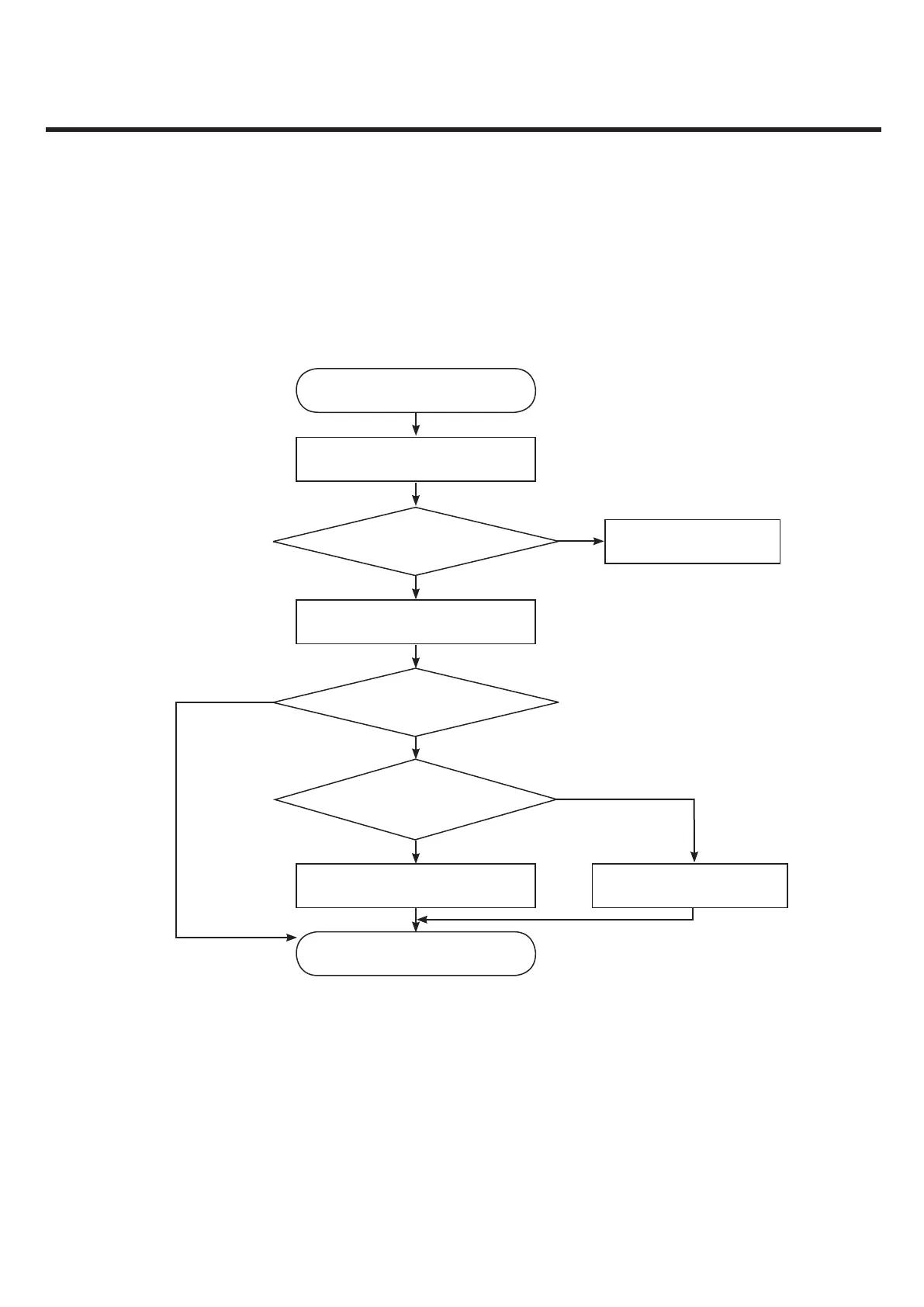

Main LCD control signals are generated by MSM7225A. Those signal’s path are :
MSM7225A -> LCD Module
Press Power key to tun the power On
Is the circuit powered?
Yes
Follow the Power ion
trouble-shooting
No
LCD display OK?
START
No
Yes
Change the LCD Module
Disconnect and reconnect
LCD connector
Yes
END
Change the Main board
No
Check Power
VREG_MSME_1.8V(TP1)
VREG_LCD_2.8V(TP2)
