4. TROUBLE SHOOTING
- 34 -
Copyright © 2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only

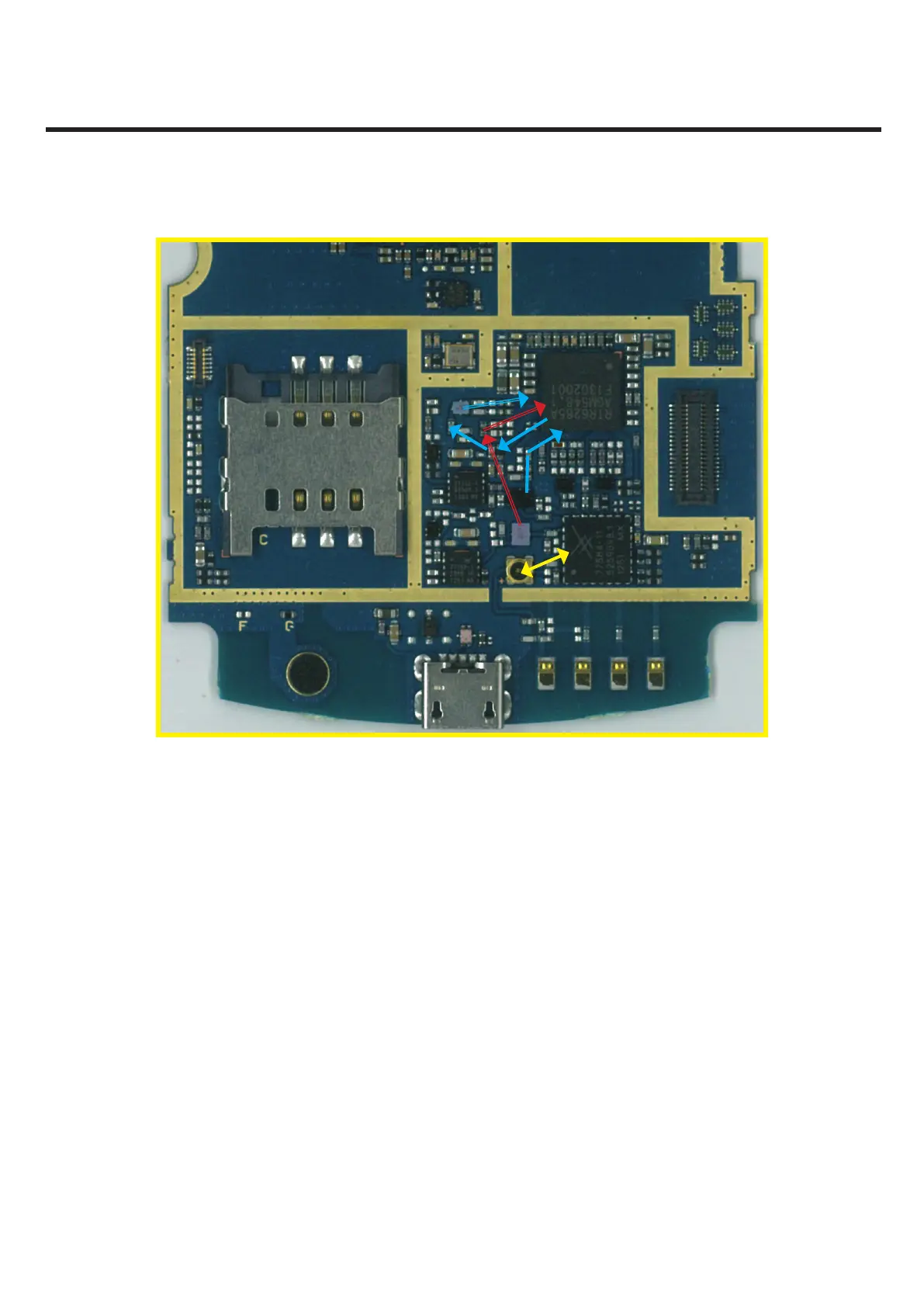

WCDMA I and VIII Band TX Signal PATH
D2. WCDMA 2100 TX PATH
E2. WCDMA 900 TX PATH
F1. COMMON TX/RX PATH
