30 MPS Variable Multi Split System(50Hz, R410A)

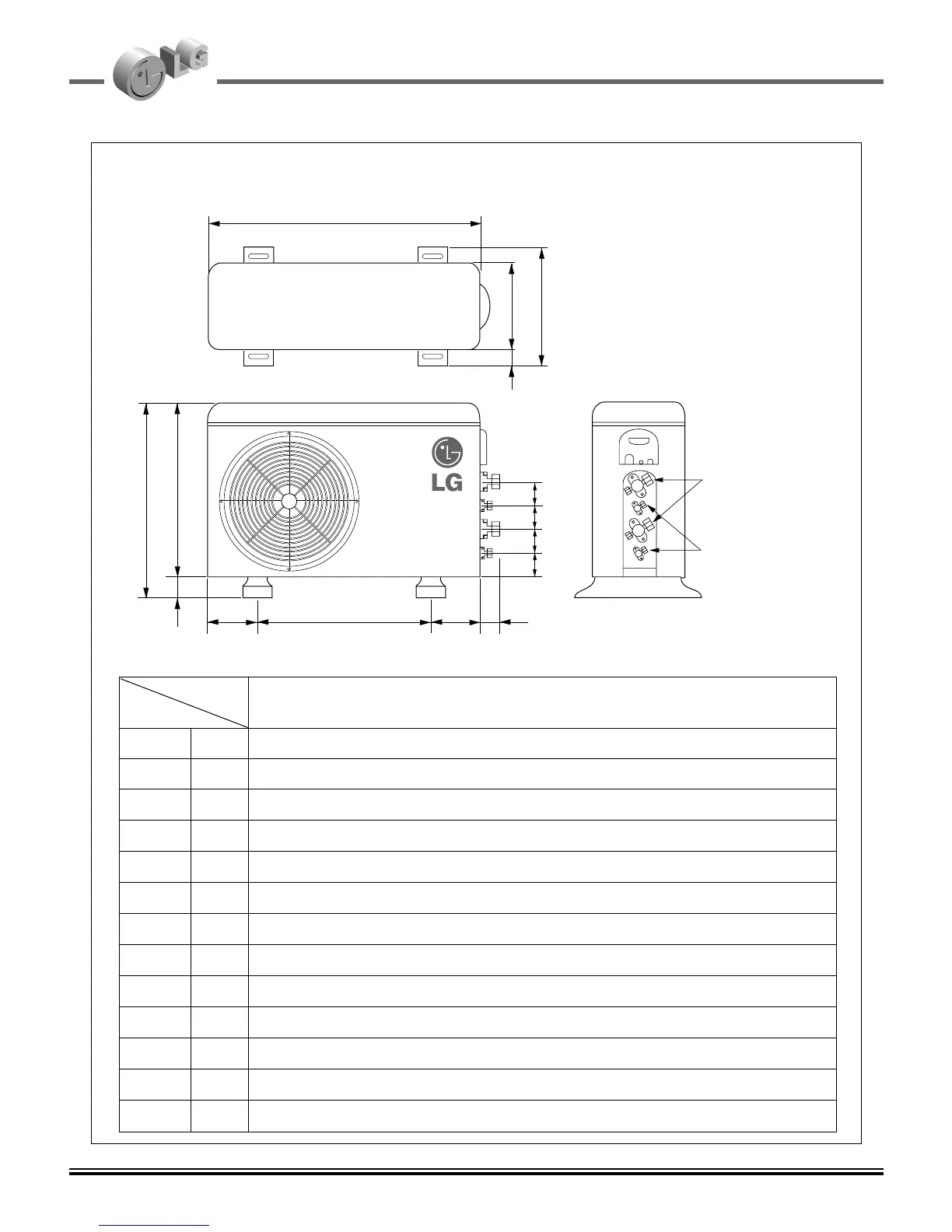

7. Dimensional Drawings
A2UC186FA0, A2UH186FA0
W
D
L1
L2
L9
L4
L3
H
L10
L10
L10
L8
Gas side
3-Way valve
Liquid side
2-Way valve
L7L5L6
W mm 870
H mm 655
D mm 320
L1 mm 370
L2 mm 25
L3 mm 630
L4 mm 25
L5 mm 546
L6 mm 160
L7 mm 160
L8 mm 64
L9 mm 76.5
L10 mm 50
A2UC186FA0, A2UH186FA0
Model
Dimensions
