LG LM50 2004-E1 - Piping Diagrams

2004 Product Data 43

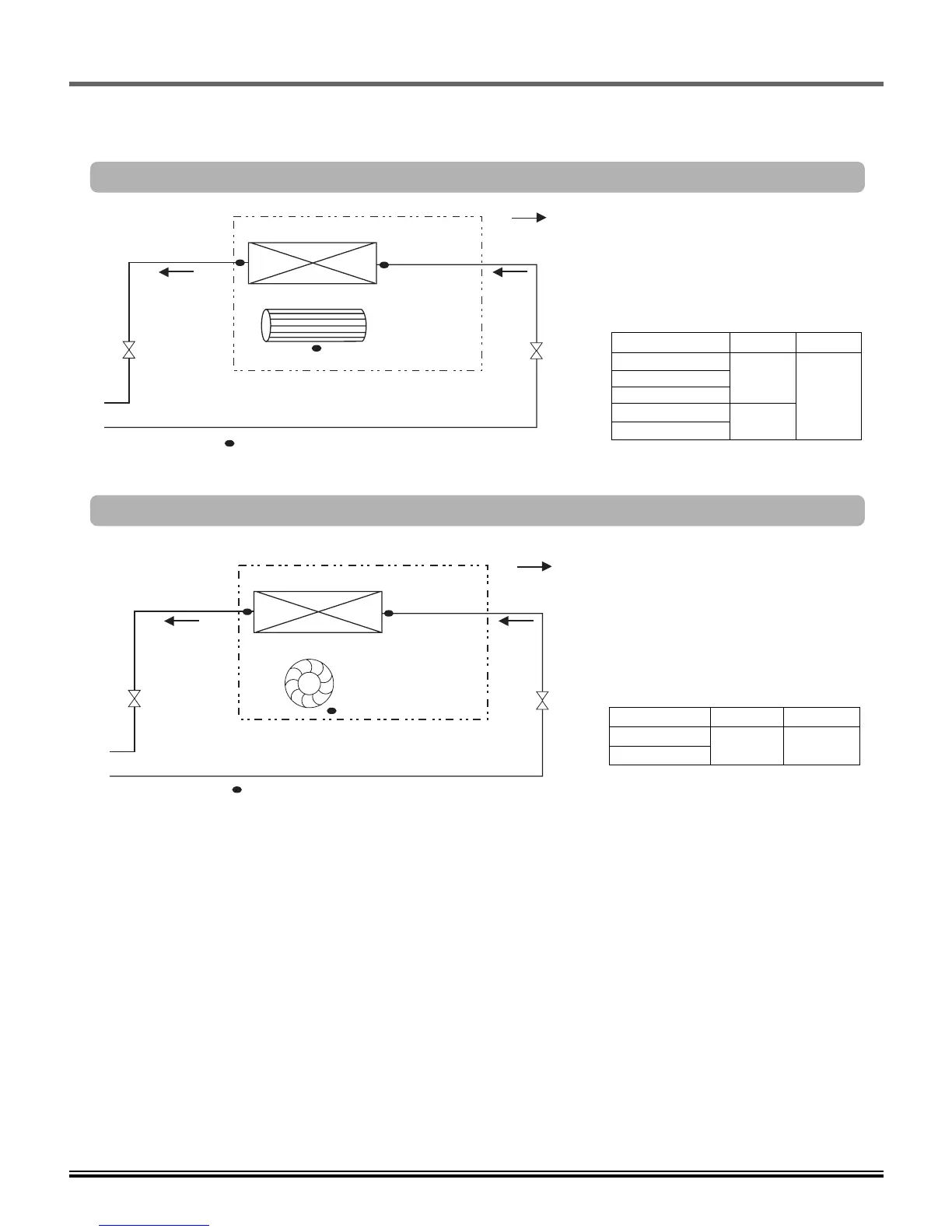

9. Piping Diagrams
Heat Exchanger
C.F.F
lndoor unit
:Cooling
: Thermistor
Gas
Ø9.52(3/8)
Ø12.7(1/2)
Liquid
Ø6.35(1/4)
Model
AMNC076LQL0
AMNC096LQL0
AMNC126LRL0
AMNC186LTL0
AMNC246LTL0
[unit:mm(inch)]
Refrigerant pipe connection port diameter
Heat Exchanger
Turbo Fan
lndoor unit
:Cooling
: Thermistor
[unit:mm(inch)]
Refrigerant pipe connection port diameter
Model
AMNC096AP*1
AMNC126AP*1
Gas
Ø9.52(3/8)
Liquid
Ø6.35(1/4)
9.1 Indoor Unit
9.1.1 Cooling Only
Wall Mounted
ART COOL
