LG LM50 2004-E1 - Indoor Unit; Wiring Diagrams

2004 Product Data 33

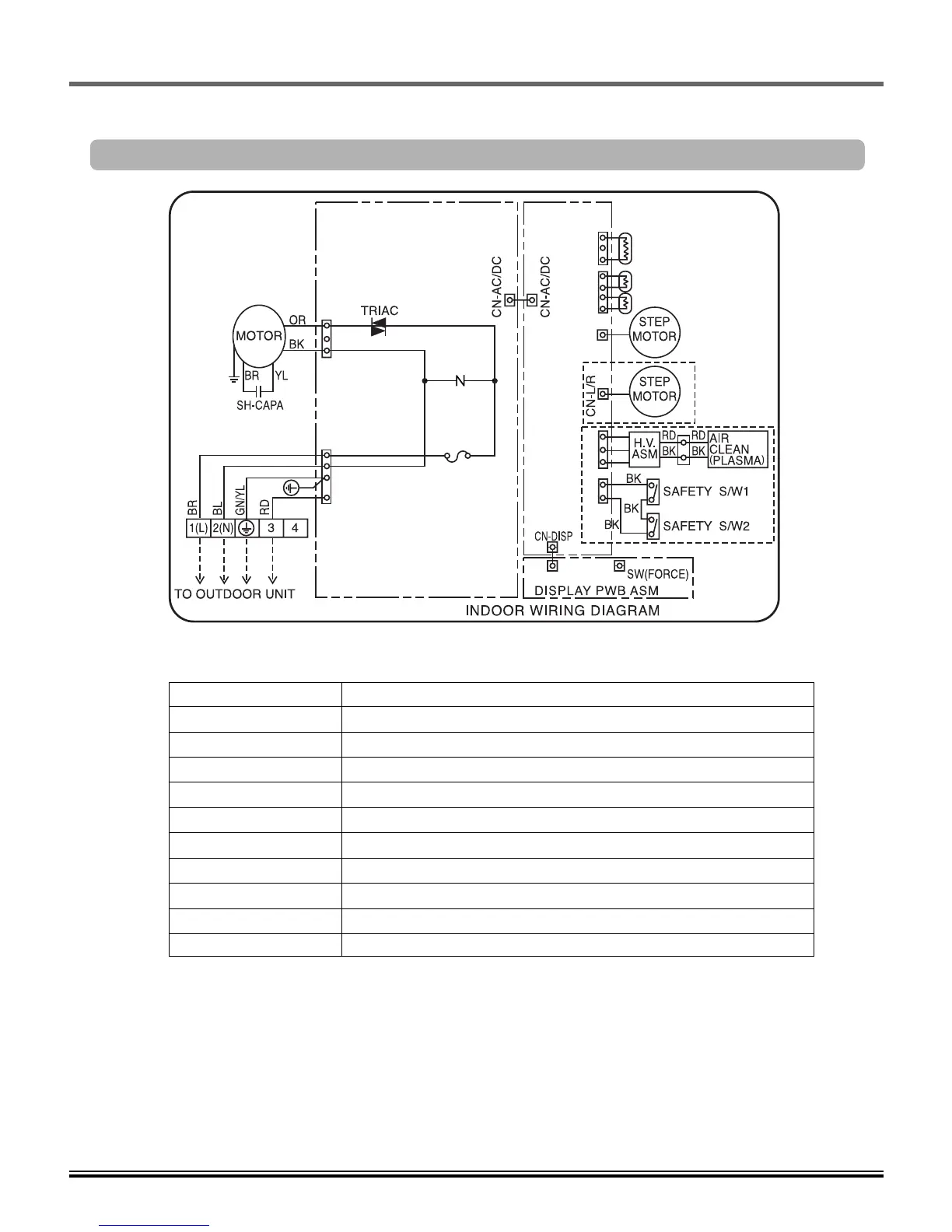

8. Wiring Diagrams
3854A20135W
CN-TH1
THERMISTOR(OUT-PIPE)
THERMISTOR
(IN-PIPE)
THERMISTOR (ROOM)
CN-TH2
CN-U/D
CN-MOTORCN-POWER
AC PCB ASM DC PCB ASM
FUSE
250V 2A
ZNR
8.1 Indoor Unit
Wall Mounted
CONNECTOR NUMBER
Location
CN-POWER AC POWER SUPPLY
CN-MOTOR AC FAN MOTOR OUTPUT
CN-ACDC AC/DC CONNECTION
CN-COMM COMMUNICATION
CN-DISP DISPLAY
CN-DISP2 DISPLAY
CN-UD STEP MOTOR
CN-LR STEP MOTOR
CN-TH1 ROOM/PIPE SENSOR
CN-TH2 DISCHARGE PIPE SENSOR
