LG LM50 2004-E1 - Wall Mounted

44 MPS Variable Multi Split System(50Hz, R410A)
9. Piping Diagrams

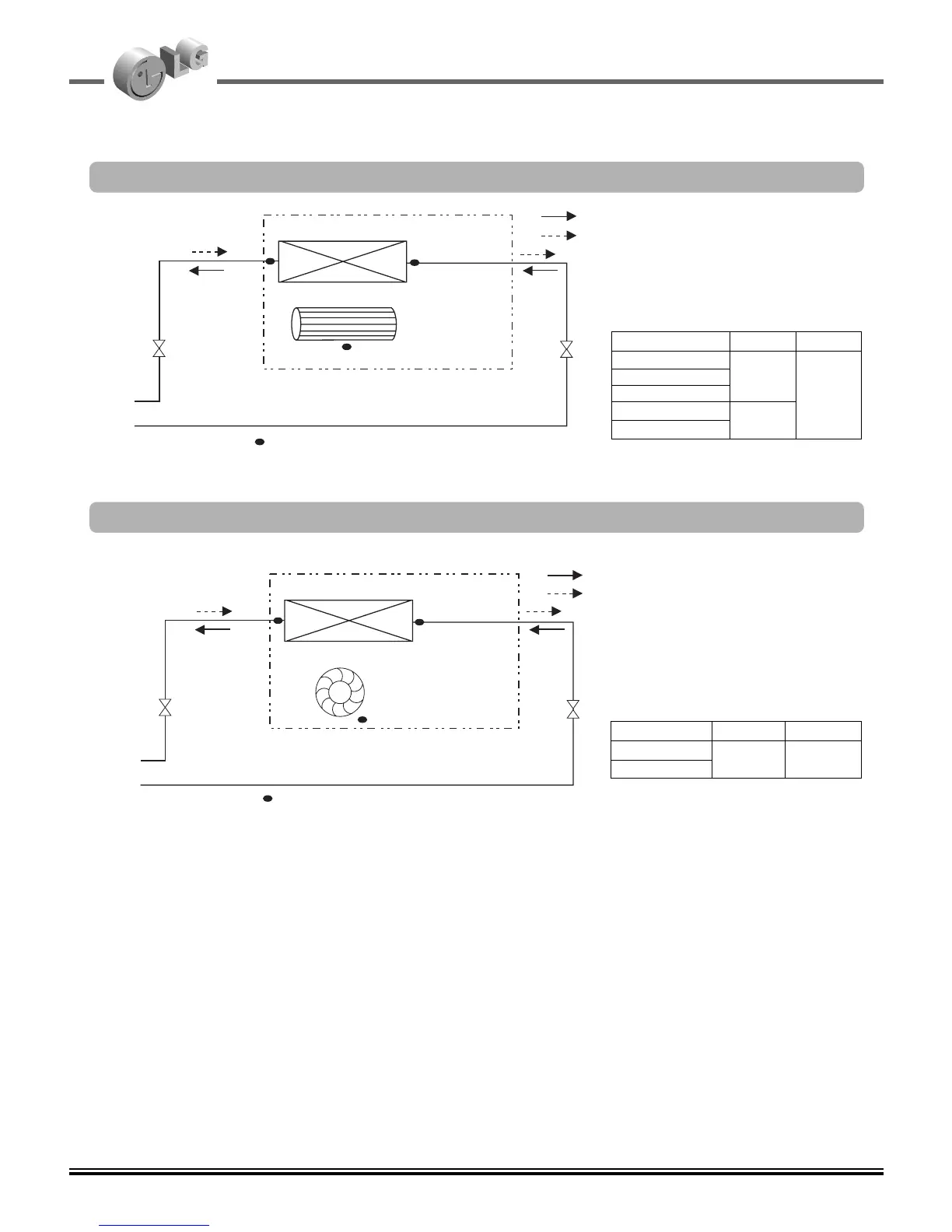

Heat Exchanger
C.F.F
lndoor unit
:Cooling
: Thermistor
:Heating
[unit:mm(inch)]
Refrigerant pipe connection port diameter
Heat Exchanger
Turbo Fan
lndoor unit
:Cooling
:Heating
: Thermistor
[unit:mm(inch)]
Refrigerant pipe connection port diameter
Wall Mounted
ART COOL
9.1.2 Heat Pump
Model
AMNH096AP*1
AMNH126AP*1
Gas
Ø9.52(3/8)
Liquid
Ø6.35(1/4)
Gas
Ø9.52(3/8)
Ø12.7(1/2)
Liquid
Ø6.35(1/4)
Model
AMNH076LQL0
AMNH096LQL0
AMNH126LRL0
AMNH186LTL0
AMNH246LTL0
