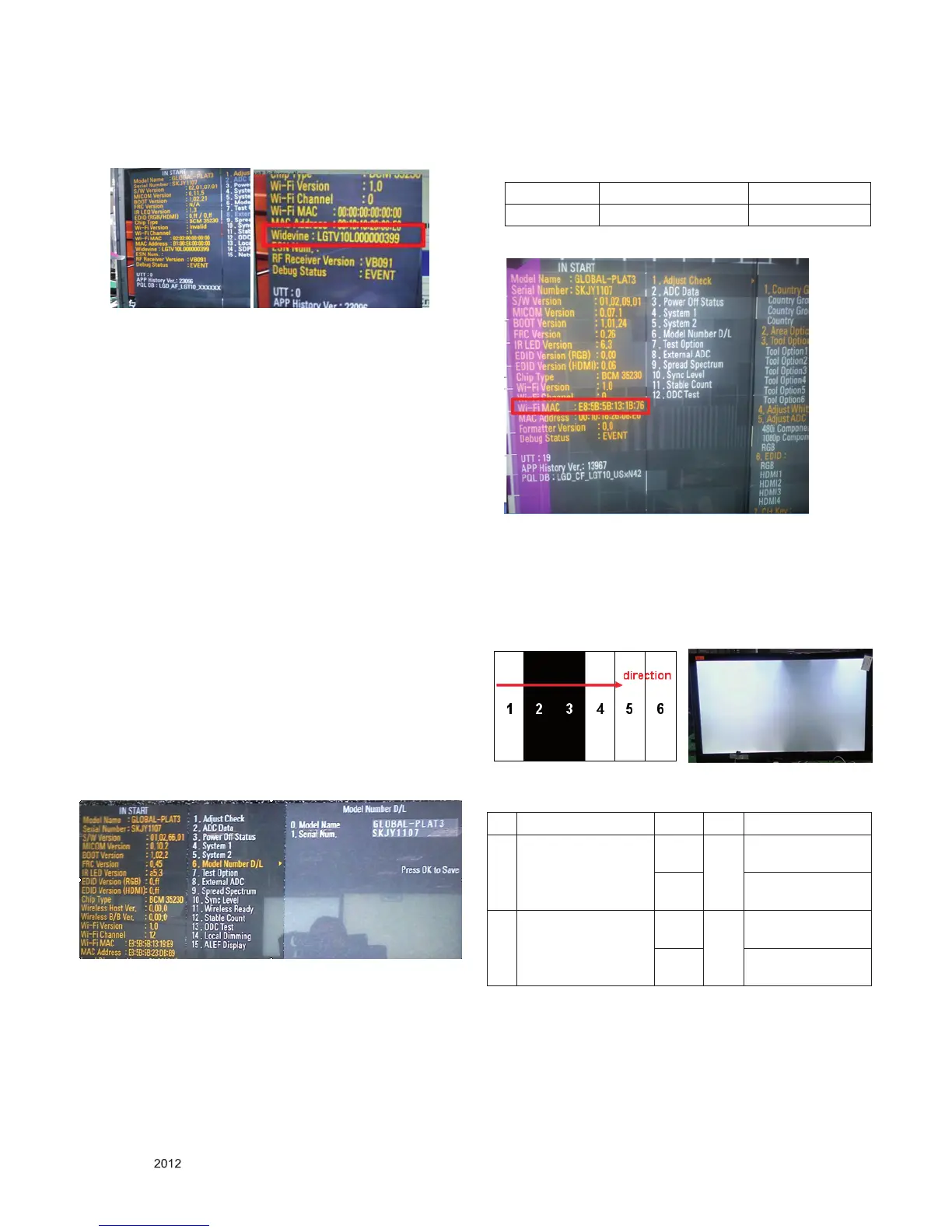

5.5. WIDEVINE Key Inspection
1) Conrm Key input Data at the “IN START” MENU Mode
5.6. Model name & Serial number D/L
5.6.1. Notice
1) Serial number D/L is using of scan equipment.
2) Setting of scan equipment operated by Manufacturing
Technology Group.
3) Serial number D/L must be conformed when it is produced in
production line, because serial number D/L is mandatory by
D-book 4.0
4) Check the model name In-start menu -> Factory name
displayed (ex 32LS5700-DA)
5) Check the Diagnostics (DTV country only) -> Buyer model
displayed (ex 32LS5700-DA)
5.6.2. Method : Auto
1) Press “Power on” key of service remocon.(Baud rate : 115200
bps)
2) Connect RS232 Signal Cable to RS-232 Jack
3) Write Serial number by use RS-232.
4) Must check the serial number at Instart menu
5.6.3. Method : Manual
* If the TV set is downloaded By OTA or Service man, Sometimes
model name or serial number is initialized.
( Not always) It is impossible to download by bar code scan, so
It need Manual download.
1) Press the ‘instart’ key of ADJ remote controller.
2) Go to the menu ‘6.Model Number D/L’ like below photo.
3) Input the Factory model name or Serial number like photo.
5.7. Wi-Fi MAC ADDRESS CHECK
5.7.1. Notice
1) Using RS232
Command Set ACK
Transmission [A][l][][Set ID][][20][Cr] [O][K][x] or [N][G]
2) Check the menu on in-start
5.8. Local Dimming Inspection
5.8.1. Edge LED models with local dimming
1) Press ‘TILT” key of the Adj. R/C and check moving pat-
terns. The black bar patterns moves from left to right. If local
dimming function does not work, a whole screen shows full
white.
5.9. Internal press test
No Item Vallue Unit Remark
1. Dielectric
Voltage(AC<->FG)
1.5 kV At 100mA for
1sec(Line)
1.5 At 100mA for
1min(OQC)
2. Dielectric
Voltage(Without FG)
3 kV At 100mA for
1sec(Line)
3 At 100mA for
1min(OQC)
