LG LM6210 Series Service Manual

10 / 79

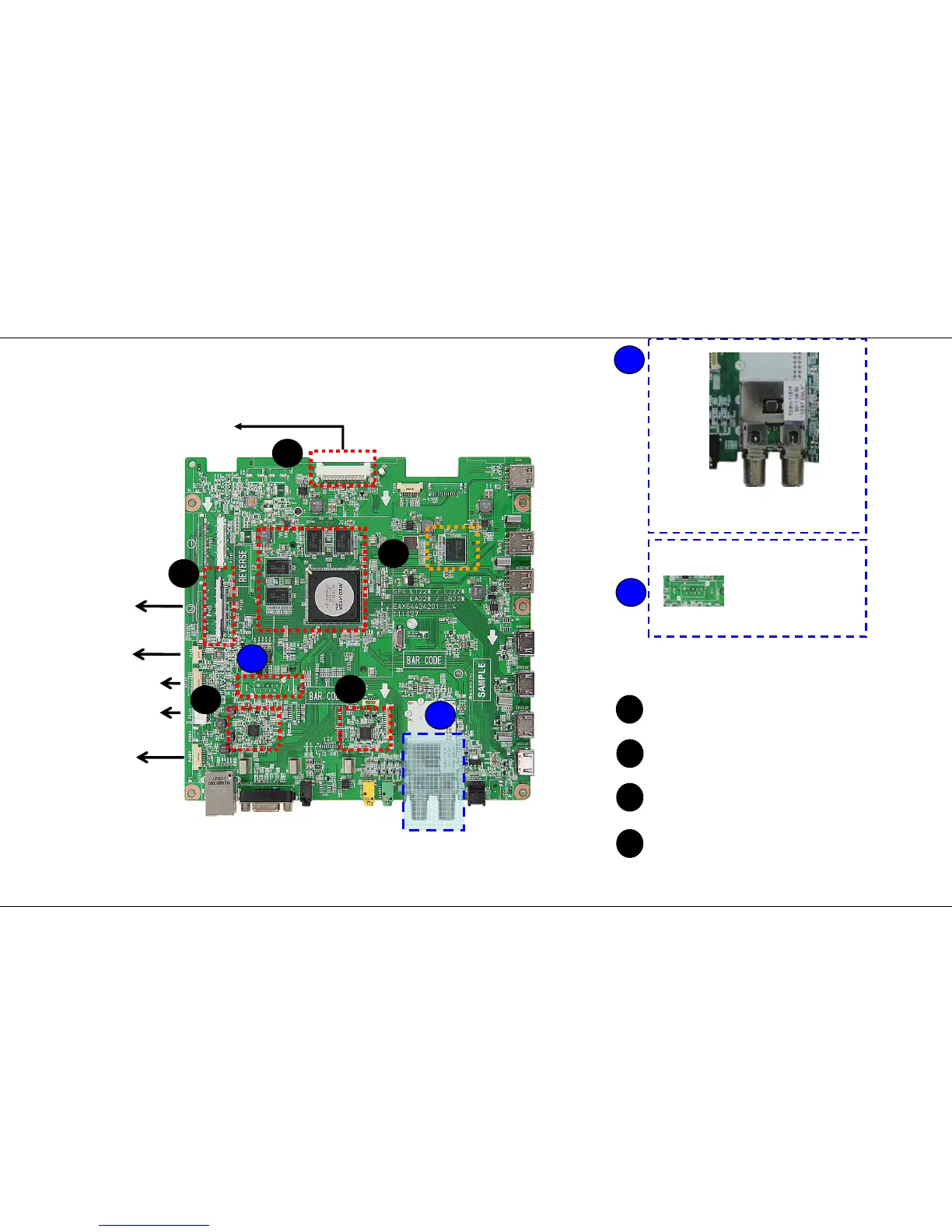

Main PCB for Broadband
To PSU
1
2
3
1
Main processor, DDR Memory
eMMC Memory
2
3
4
Micom for Key/IR sensing
Audio AMP (10W+10W)
LVDS &EPI Wafer
Soft touch +IR
Front Spk
To module
4
All model
1
Only for Dev
1
2
Chassis : LT22E
PCB P/No : EAX64434205
WIFI
RF Assy
2
2
Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
