LG LM6210 Series Service Manual

- 16 -
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
4.5. ADC Calibration : Comp 480i/Comp 1080p/RGB
4.5.1. ADC Calibration : Internal Auto ADC
1) Press “ADJ” key on R/C for adjustment.
2) Enter Password number. Password is “0 0 0 0”.
3) Move to the “8. ADC Calibration” by using ▲/▼(CH +/-) and
press ENTER(►).
4) Move to the “ADC Type” by using ▲/▼(CH +/-)
5) Press the right direction key(►) to ADC Type “OTP”.
6) Press the right direction key(►) to Start.
7) After about a few seconds, appear “ADC Calibration
Completed”, then complete
4.5.2. ADC Calibration - Manual
※ Required Equipments
▪ Remote controller for adjustment
▪ MSPG-925F/MSPG-1025/MSPG-3233 Pattern Generator
4.5.2.1. Process
1) Change the Input to Component1 or 2 mode..

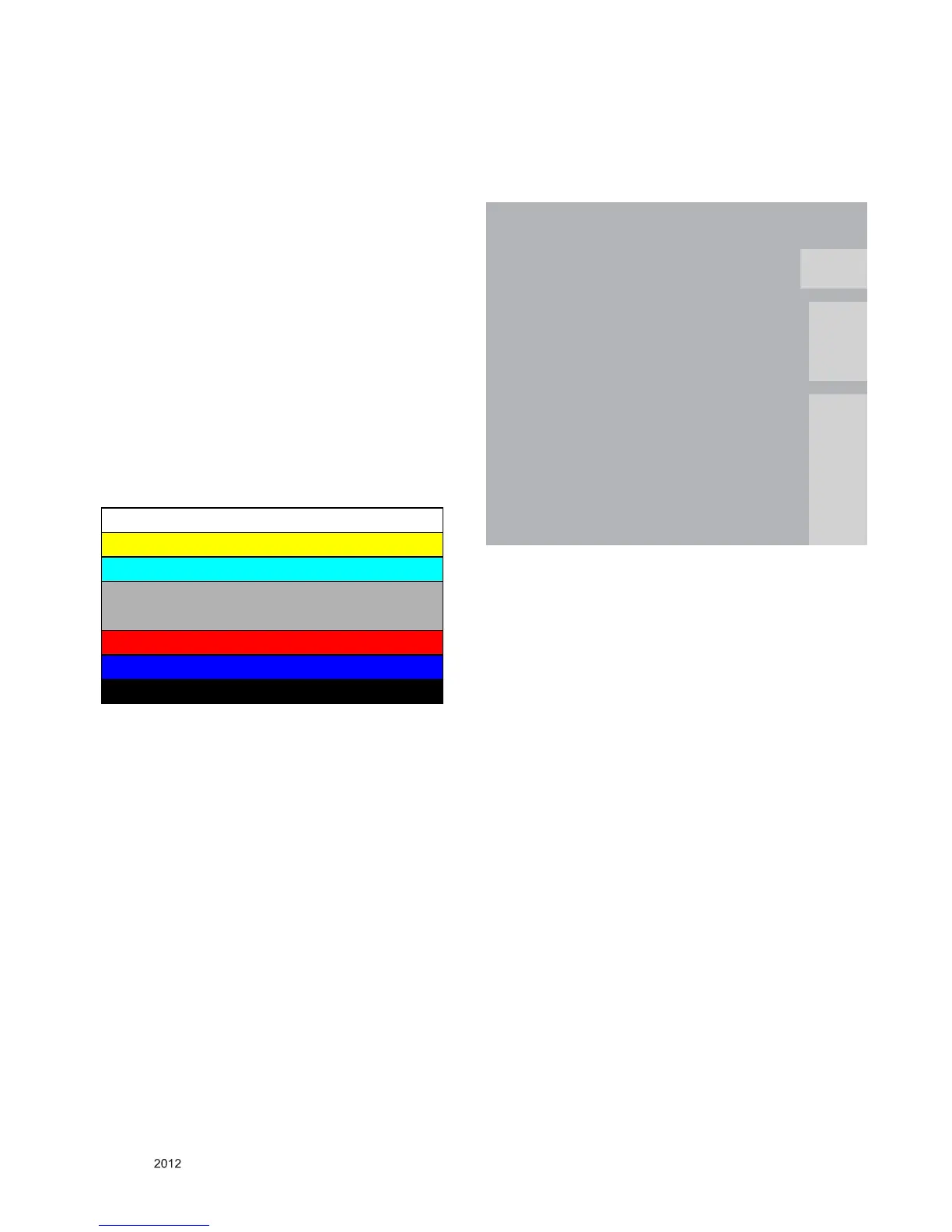

2) Input the Component 480i@60Hz 100% Color Bar YPbPr
signal into Component1 or 2.
(MSPG-925F 480i Model: 209 / Pattern: 65 )
(MSPG-925F 1080p Model: 225 / Pattern: 65 )
[Fig. 2]
3) Press “ADJ” key on R/C for adjustment.
4) Enter Password number. Password is “0 0 0 0”.
5) Move to the “8. ADC Calibration” by using ▲/▼(CH +/-) and
press ENTER(►).
6) Move to the “ADC Type” by using ▲/▼(CH +/-)
7) Press the right direction key(►) to ADC Type “External”.
8) Press the right direction key(►) to Start.
9) After about a few seconds, appear “ADC Calibration
Completed”, then complete.
10) Change input source component 1080p, Do 3)~9) steps.
11) Change input source RGB 1080p and Do 3)~9) steps.
4.6. Check SW Version
4.6.1. Method
1) Push In-star key on Adjust remote-controller.
2) SW Version check(ex. 47LW9800-DA)
5. SET assembly adjustment method
5.1. Input Area-Option
(1) Prole : Must be changed the Area option value because
being different of each Country’s Language and
signal Condition.
(2) Equipment : adjustment remote control.
(3) Adjustment method
- The input methods are same as other chassis.(Use IN-START
Key on the Adjust Remocon.)
Refer to Job Expression of each main chassis ass’y
(EBTxxxxxxxx) for Option value
5.2. Adjustment of White Balance
● In case of keeping module is in the circumstance of 0°C, it
should be placed in the circumstance of above 15°C for 2
hours
● In case of keeping module is in the circumstance of below
-20°C, it should be placed in the circumstance of above 15°C
for 3 hours.
IN START
Model Name : 47LW9800-DA
1.Adjust Check ▶
Adjust Check
Serial Number : 012PTED6N500 2.ADC Date 1. Country Group(Press OK to Save)
S/W Version : 3.02.06.01 3.Power Off Status Country Group Code 10
MICOM Version : 3.05.3 4.System1 Country Group TW
BOOT Version : 1.02.22 5.System2 Country TW/CB/PA
FRC Version : 1.50 6.Model Number D/L 2. Tool Option
IR LED Version : c8 7.Test Option Tool Option1 33112
EDID(RGB/HDMI) : 0.03/0.02 8.External ADC Tool Option2 5461
Chip Type : BCM35230 9.Spread Spectrum Tool Option3 3327
Wireless Host Ver. : 0.00.0 10.Sync Level Tool Option4 17593
Wireless B/B Ver. : 0.00.0 11.Wireless Ready Tool Option5 47695
Wi-Fi Version :1.0 12.Stable Count Tool Option6 697
Wi-Fi Channel :0 13.ODC Test 3. Adjust White Balance : OK
Wi-Fi MAC :00:00:00:00:00:00 14.Local Dimming 4. Adjust ADC : OTP
MAC Address :FF:FF:FF:FF:FF:FF 15.SDP Server Selection 480i Component OK
Widevine :LGTV10L000011618 16. Network Error History 1080p Component OK
Local Dimming Ver. :0x0707 RGB OK
Formatter Version : 0.6c 5.EDID : OK
RF Receiver Version : RGB OK(0x98)
Debug Status : Release HDMI1 OK(0x7F,0xCB)
HDMI2 OK(0x7F,0xBB)
UTT : 40 HDMI3 OK(0x7F,0xAB)
APP History Ver. : 35190 HDMI4 OK(0x7F,0x9B)
PQL DB : LGD_AF_LGT10_xxxxxx
