LG LM6210 Series Service Manual

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
I2C_SCL1
L/DIM0_SCLK
R7601
10K
L/DIM_OUT
+3.3V_NORMAL
L/DIM0_MOSI
R7607
4.7K
L/DIM_OUT
R7606 33
L/DIM_OUT
P7600
12507WR-08L
L/DIM_OUT
1
2
3
4
5
6
7
8
9
I2C_SDA1
L/DIM0_VS
R7600
10K
OPT
AR7600
33
1/16W
L/DIM_OUT

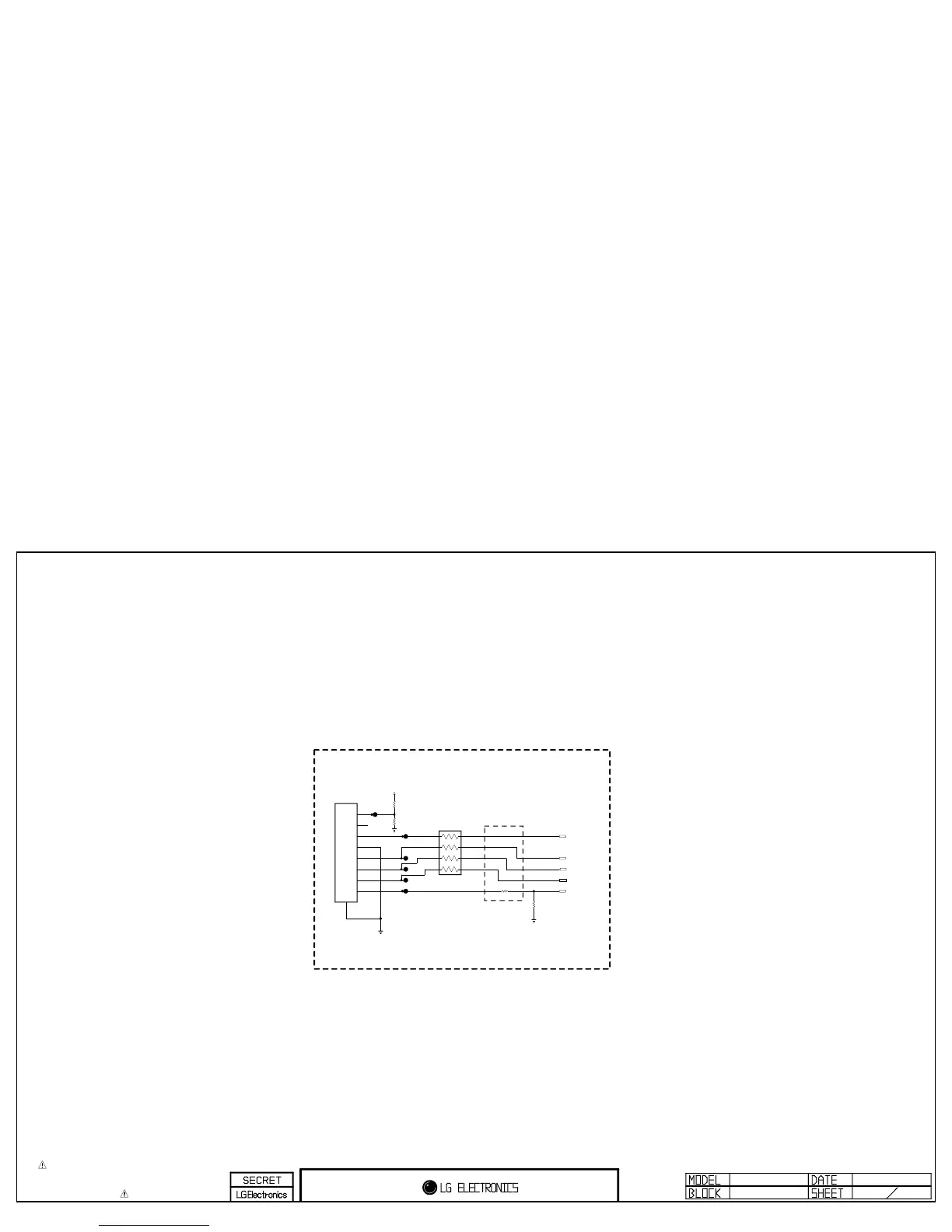

LOCAL DIMMING
[To LED DRIVER]
76
LOCAL DIMMING
2011.12.13
Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only

LG LM6210 Series Specifications

General

Brand	LG
Model	LM6210 Series
Category	LCD TV
Language	English
