LG LM6210 Series Service Manual

14 / 79

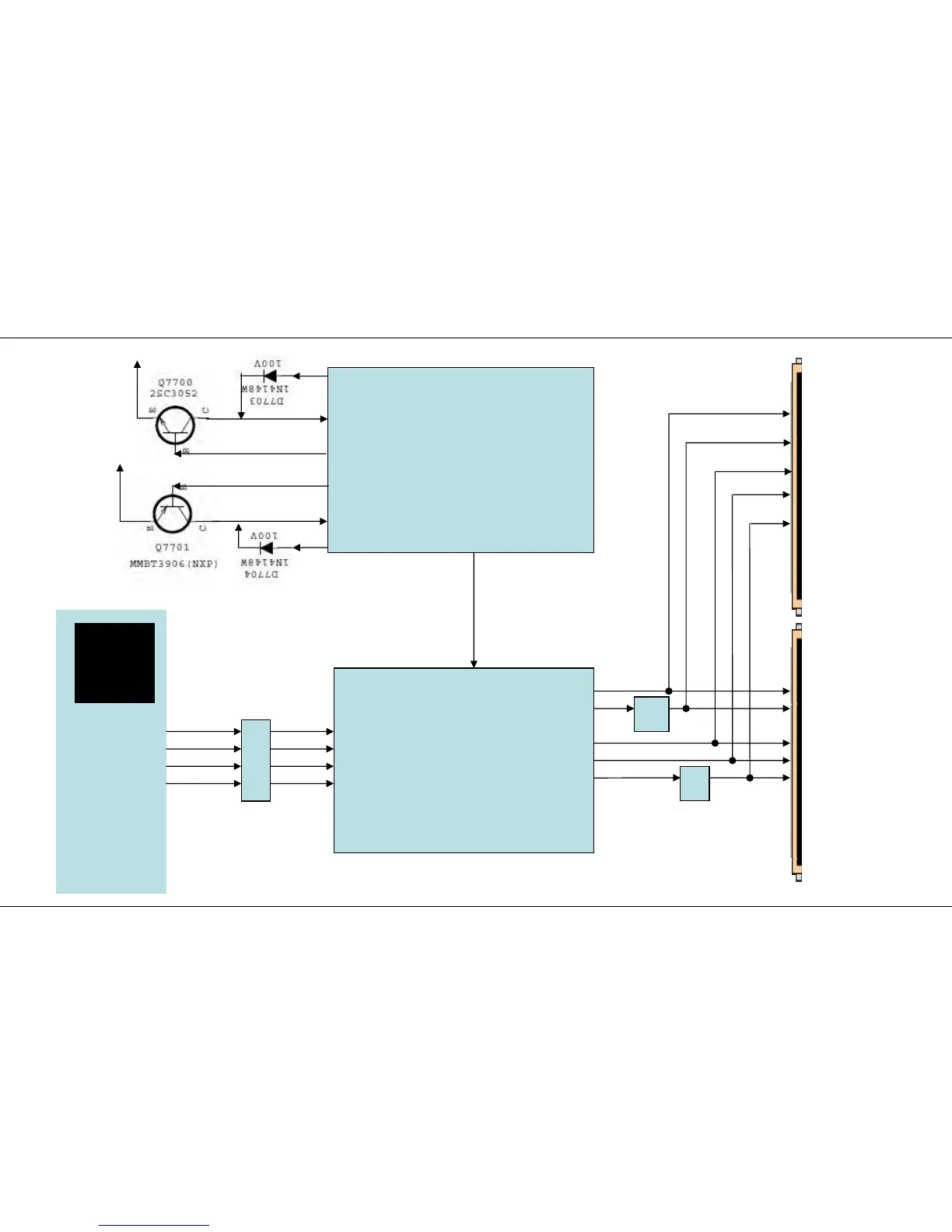

NetCast3.0 Backend block diagram (EPI & T-con)
IC7700
TPS65178
IC7701
TPS65198
50Pin
EPI LEFT
50Pin
EPI RIGHT
VCOM, GIP_RST
R(0옴)
OPT
DISCHG
VGL_I
VGL_I
VGH_ODD, VGH_EVEN
VGH_R, VGH_F, VST
R
(0옴)
CLK1~6_I
CLK1~6
VCOM_P/N/LOOP
VGL_FB
CTRLN
VCC
CTRLP
VGH_FB
VDD
SWP
SWN
Main
SoC
MTK
R
(47옴)
EO_SOC
MCLK_SOC
GST_SOC
GCLK_SOC
GCLK
MCLK
GST
EO
[TCON6]
[TCON5]
[TCON4]
[TCON3]
Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
