INSTALLATION 15

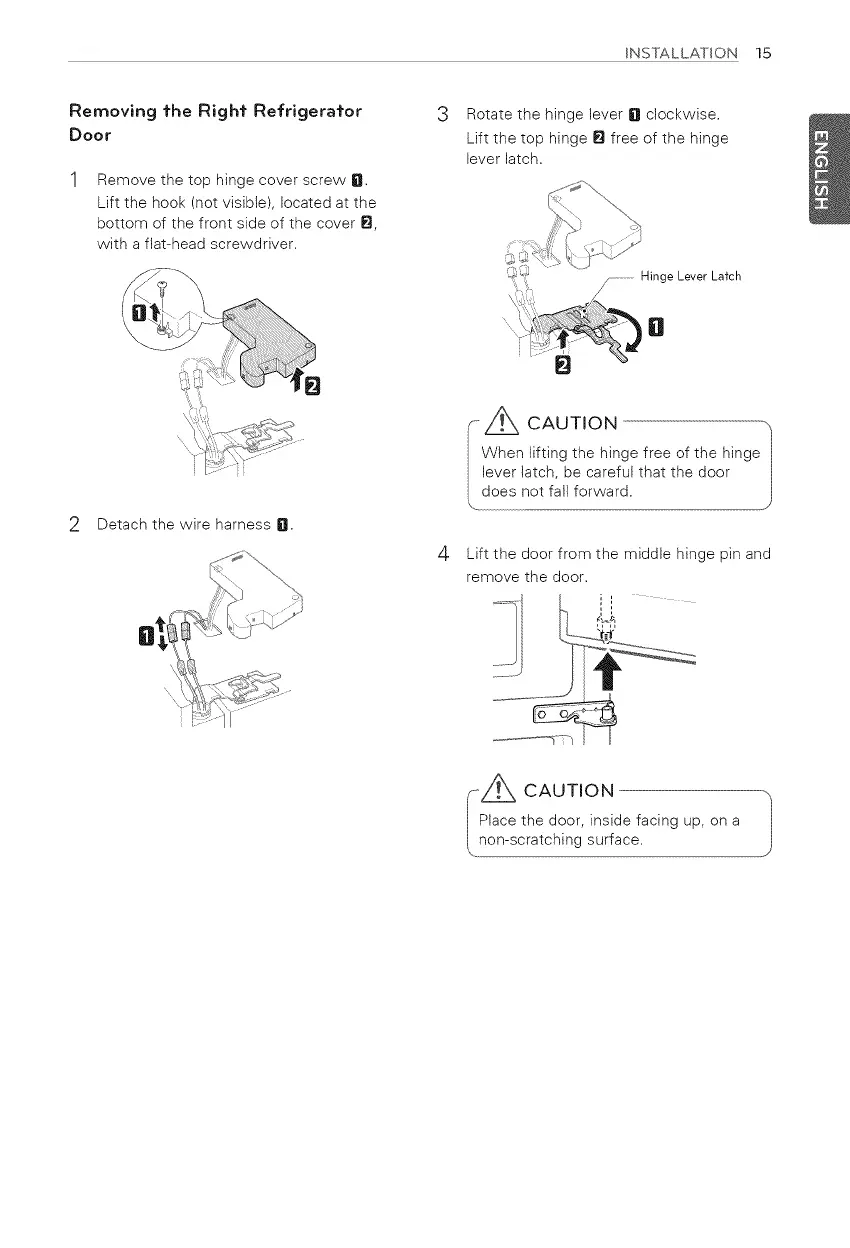

Removing the Right Refrigerator
Door
Remove the top hinge cover screw D.
Lift the hook (not visible), located at the
bottom of the front side of the cover 8,
with a flat-head screwdriver.
3
Rotate the hinge lever O clockwise.
Lift the top hinge 8 free of the hinge
lever latch.
................Hinge Lever Latch
/
8
2 Detach the wire harness D.
4
- CAUTION "/
When lifting the hinge free of the hinge_
lever latch, be careful that the door
Lift the door from the middle hinge pin and
remove the door.
_-Z_ CAUTION
Place the door, inside facing up, on a J
To Next Page
