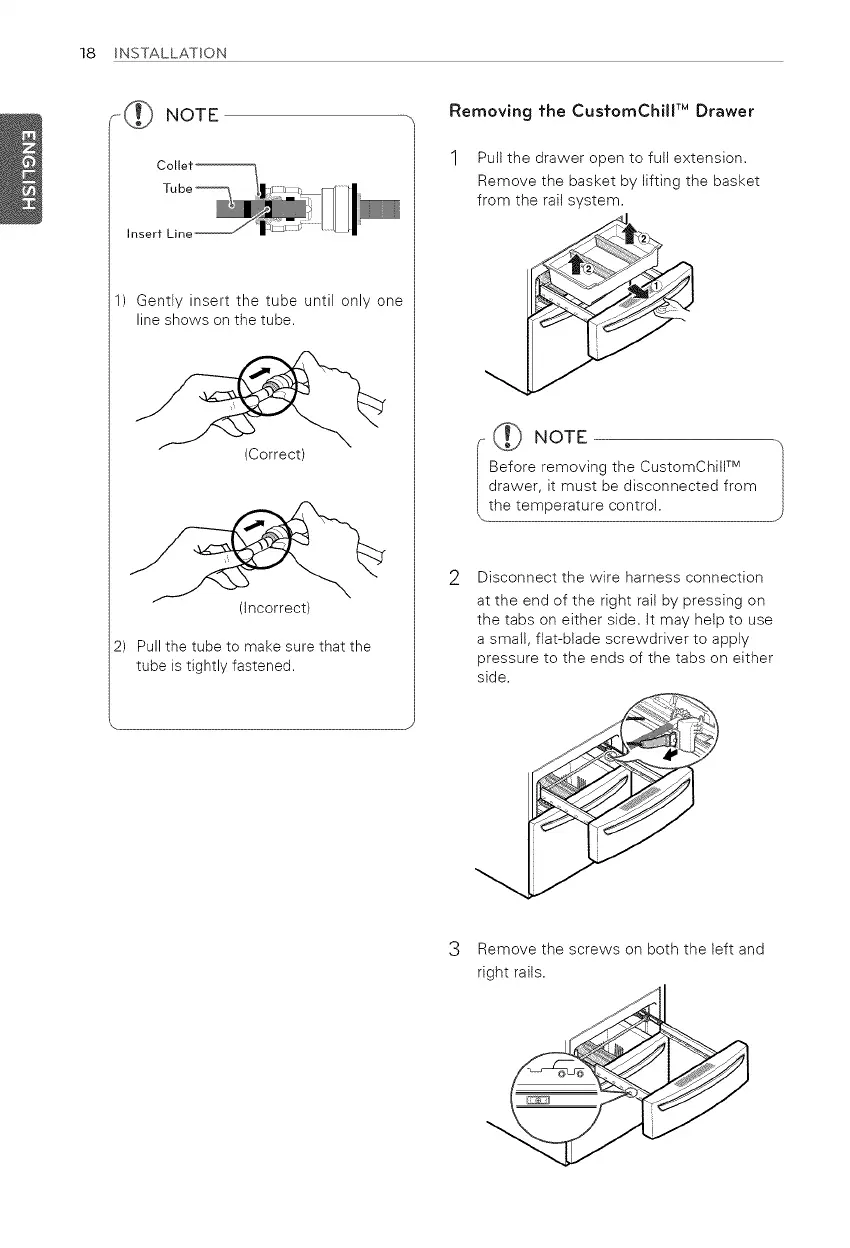

LG LMXC23746S - Removing the Customchill

18 INSTALLATION
_(_b NOTE
) Gently insert the tube until only one
line shows on the tube.
(Correct)
(Incorrect)
2) Pull the tube to make sure that the
tube is tightly fastened.
Removing the CusfomChilP Drawer
2
Pull the drawer open to full extension.
Remove the basket by lifting the basket
from the rail system.
- ) NOTE TM ]
Before removing the CustomChill
drawer, it must be disconnected from
the temperature control.
Disconnect the wire harness connection
at the end of the right rail by pressing on
the tabs on either side. It may help to use
a small, flat-blade screwdriver to apply
pressure to the ends of the tabs on either
side.
3 Remove the screws on both the left and
right rails.
