iNslali_aliONiNSIRUcliONS
WINDOW VENT PANELAND EXTENSIONS

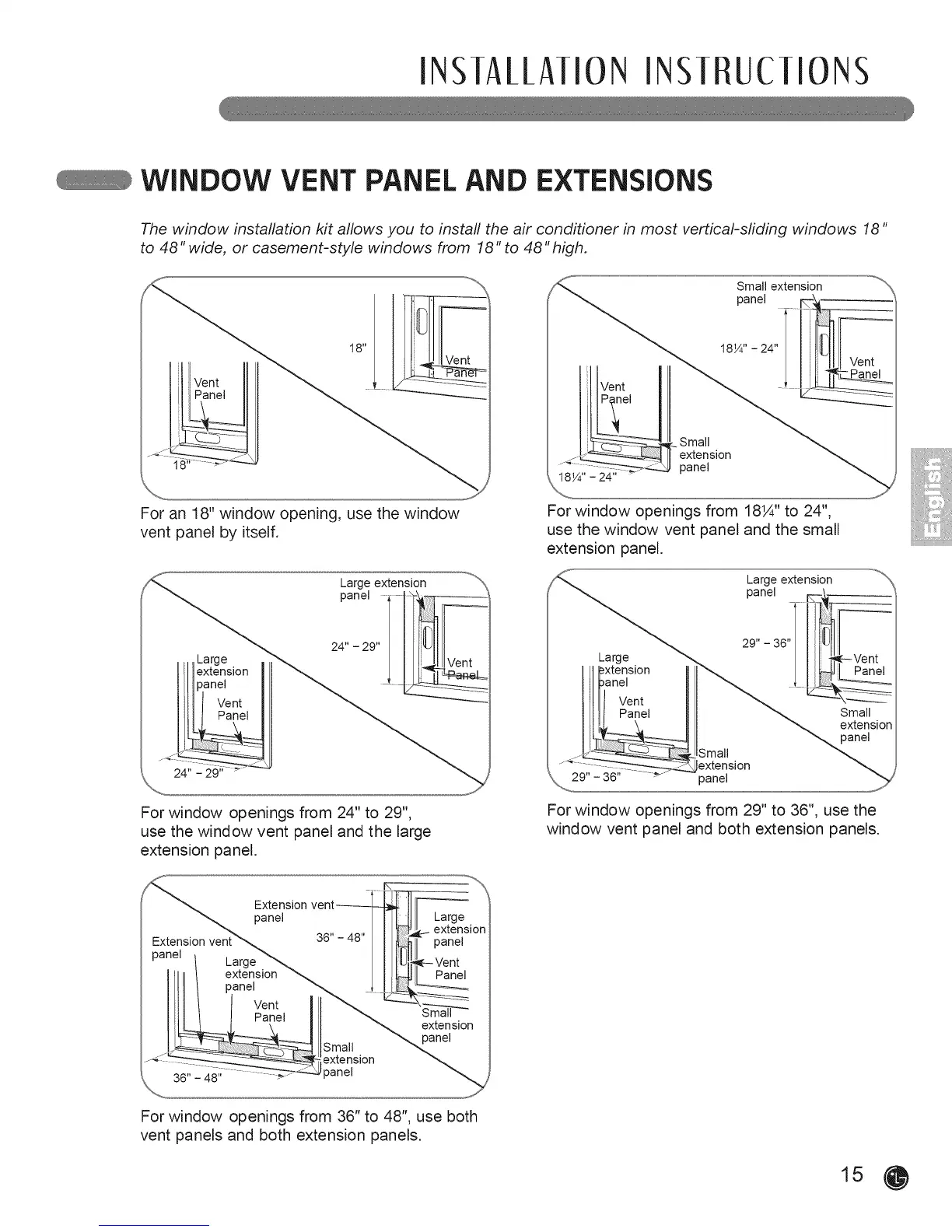

The window installation kit allows you to install the air conditioner in most vertical-sliding windows 18"
to 48" wide, or casement-style windows from 18" to 48"high.
For an 18" window opening, use the window
vent panel by itself,
Small extension
panel
Small
- extension
panel
For window openings from 18¼" to 24",
use the window vent panel and the small
extension panel.
Large
extension
panel
Vent
Panel
24" - 29"
For window openings from 24" to 29",
use the window vent panel and the large
extension panel.
Large extension
panel
Large
29" - 36
Vent
Panel
Small
lextension
panel
Small
extension
panel
For window openings from 29" to 36", use the
window vent panel and both extension panels.
Extension
panel
Extension 36" - 48"
panel Large
_ eitensi°n
panel
I Vent III
Panel III
Small
J_: _ extension
36" - 48';........ _-" .... panel
panel
Panel
Sm_
extension
panel
For window openings from 36" to 48", use both
vent panels and both extension panels.
