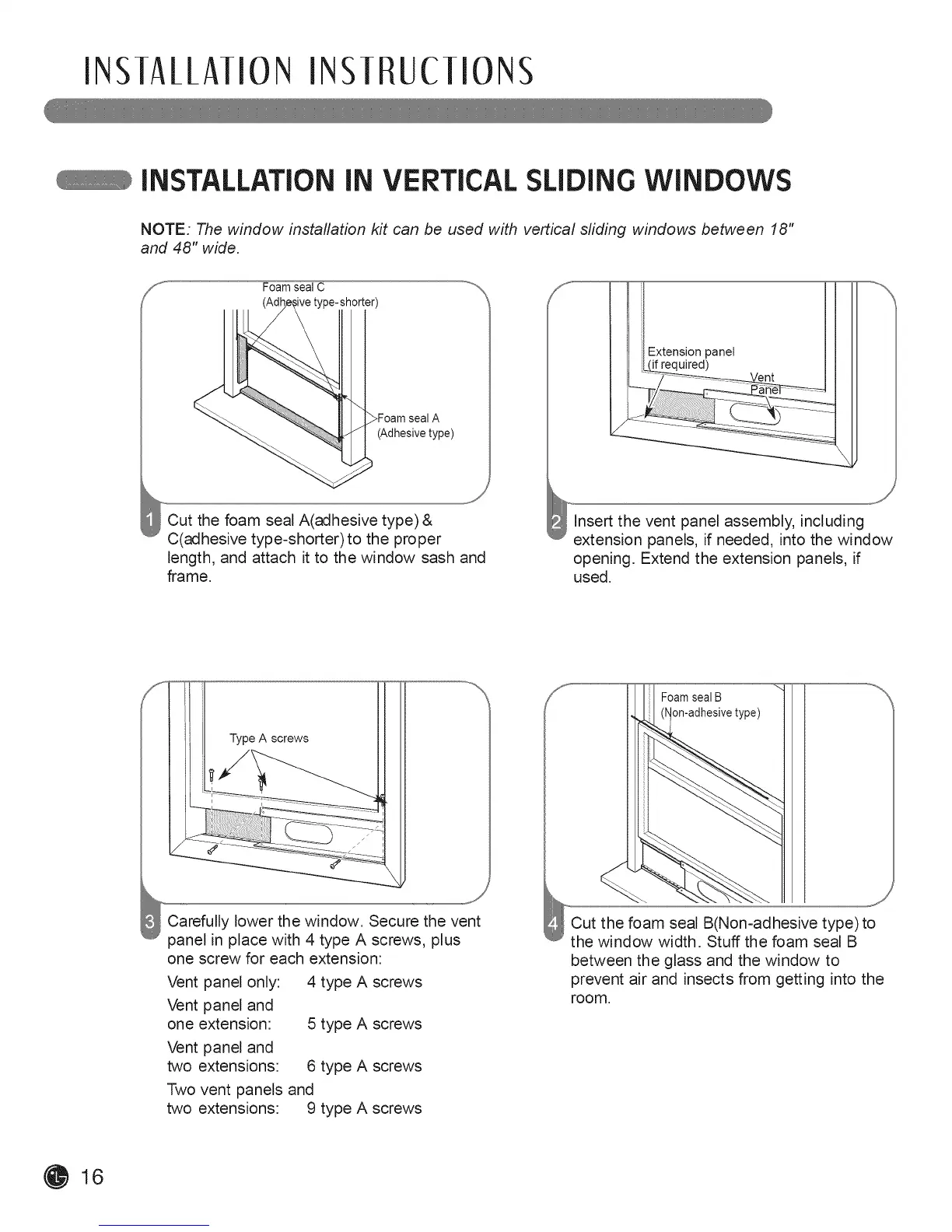

iNslAilaliON iNslRUcliONs
iNSTALLATiONiN VERTICALSLiDiNGWINDOWS
NOTE: The WindoW installation kit can be used with vertical sliding windows between 18"
and 48" wide.
<
Foam seal C
type-shorter)
(Adhesive type)
Cut the foam seal A(adhesive type) &
C(adhesive type-shorter)to the proper
length, and attach it to the window sash and
frame.
Extension panel
_L(_required) |
T-------_ v_____ent I
/ / -
Insert the vent panel assembly, including
extension panels, if needed, into the window
opening. Extend the extension panels, if
used.
.... JJ
Carefully lower the window. Secure the vent
panel in place with 4 type A screws, plus
one screw for each extension:
Vent panel only:
Vent panel and
one extension:
Vent panel and
two extensions:
4 type A screws
5 type A screws
6 type A screws
Two vent panels and
two extensions: 9 type A screws
Foamseal B
on-adhesive type)
Cut the foam seal B(Non=adhesive type) to
the window width. Stuff the foam seal B
between the glass and the window to
prevent air and insects from getting into the
room.
O16
