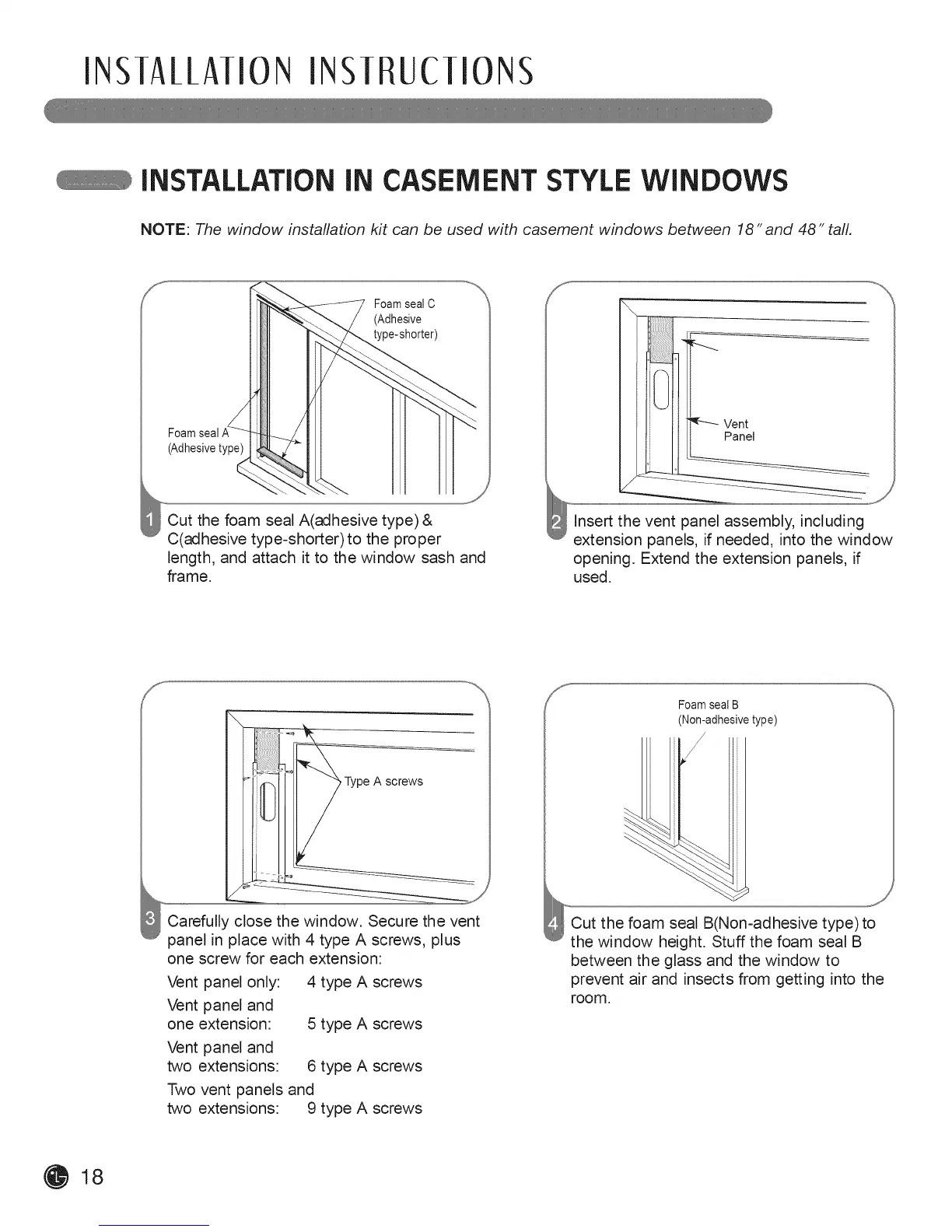

iNslAilaliON iNslRUcliONs
iNSTALLATiONiN cASEMENT STYLEWINDOWS
NOTE: The window installation kit can be used with casement windows between 18" and 48" tall.
......_,,%
Foam seal C
(Adhesive
type-shorter)
Foamseal
(Adhesivetype)
Cut the foam seal A(adhesive type) &
C(adhesive type-shorter)to the proper
length, and attach it to the window sash and
frame.
f_
Insert the vent panel assembly, including
extension panels, if needed, into the window
opening. Extend the extension panels, if
used.
_,Type A screws
Carefully close the window. Secure the vent
panel in place with 4 type A screws, plus
one screw for each extension:
Vent panel only:
Vent panel and
one extension:
4 type A screws
5 type A screws
Vent panel and
two extensions: 6 type A screws
Two vent panels and
two extensions: 9 type A screws
Foamseal B
(Non-adhesive type)
_J
Cut the foam seal B(Nomadhesive type) to
the window height. Stuff the foam seal B
between the glass and the window to
prevent air and insects from getting into the
room.
