LG LRE3061ST Service Bulletin Booklet

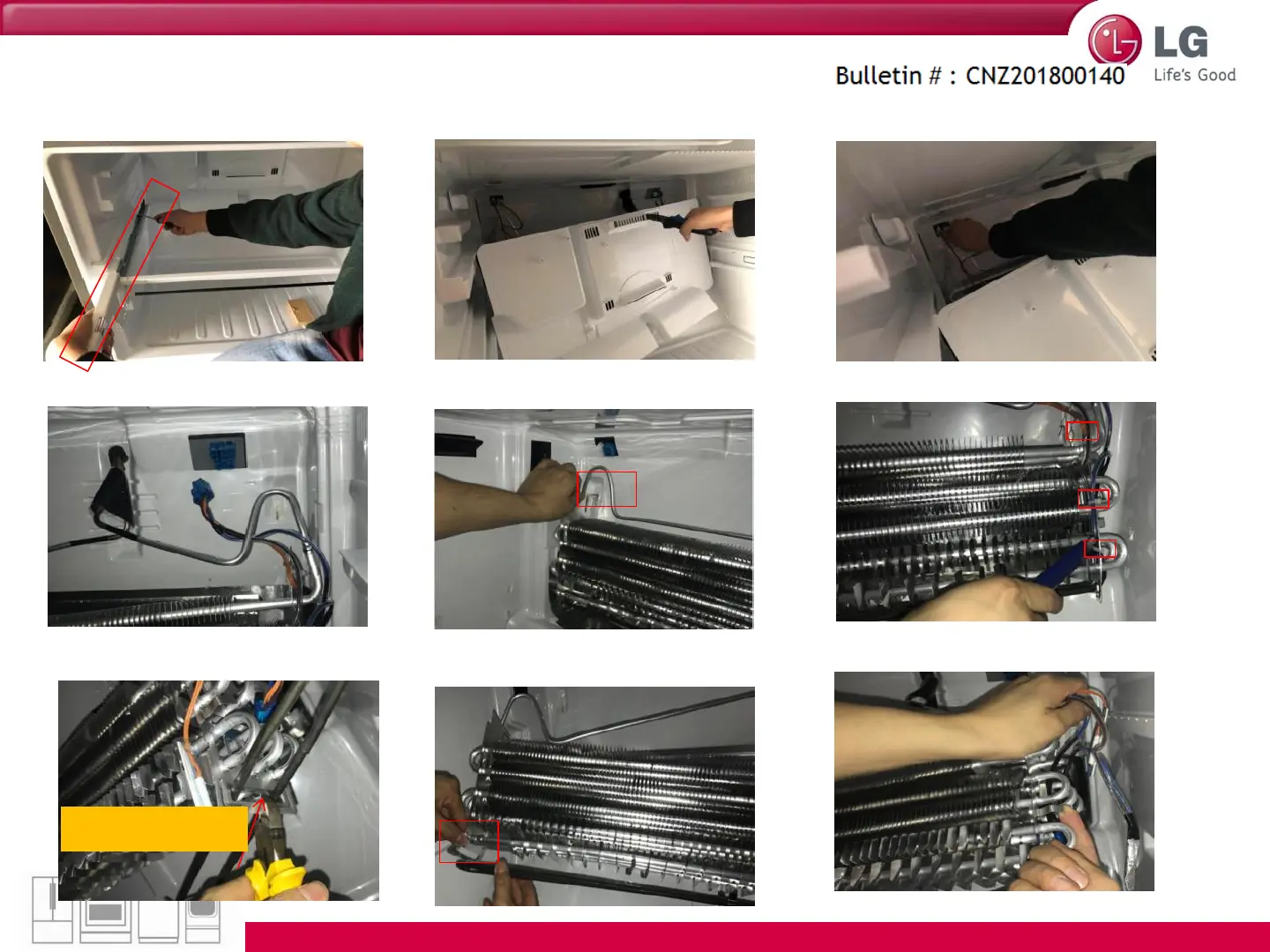

SVC guide for replace sheath heater
1.Remove Freezer door (Use screw driver to push
in the hook at both sides of case inner ) and then
remove the guide rail.
2. Use pliers to pull out the
Grille Fan shown in the figure.
3. Disconnect housing in the back (3EA),pull the
cover out
5.Separate the EVA hook from the
inner case ( Each side has a hook ）
4. Disconnect housing
6. Cut off 3 ties as shown by knife and then
throw it
8. Take the sheath heater out of the hole at the left-
side bottom position
7. Use sharp pliers to cut off the
bracket at right-side bottom position
9. Release the middle hook , remove sheath
heater from Evaporator assembly
Cut the Middle
position of bracket
26

LG LRE3061ST Specifications

General

Style	single oven, freestanding
Color	stainless steel
Total Capacity	6.3 cubic feet
Induction	no
Number of Oven Racks	2
Number of Oven Rack Positions	7
Interior Light	yes
Fuel	electric

Weight and Dimensions

Depth	28 inches
Height	47 7/16 inches
Width	30 inches
Net Weight	167 pounds
