LG LRE3061ST Service Bulletin Booklet

SVC guide for replace sheath heater
All the hook seat in hole properly
and then assemble the Freezer Door
And power on and error code check
No gap between the grill fan and
inner case

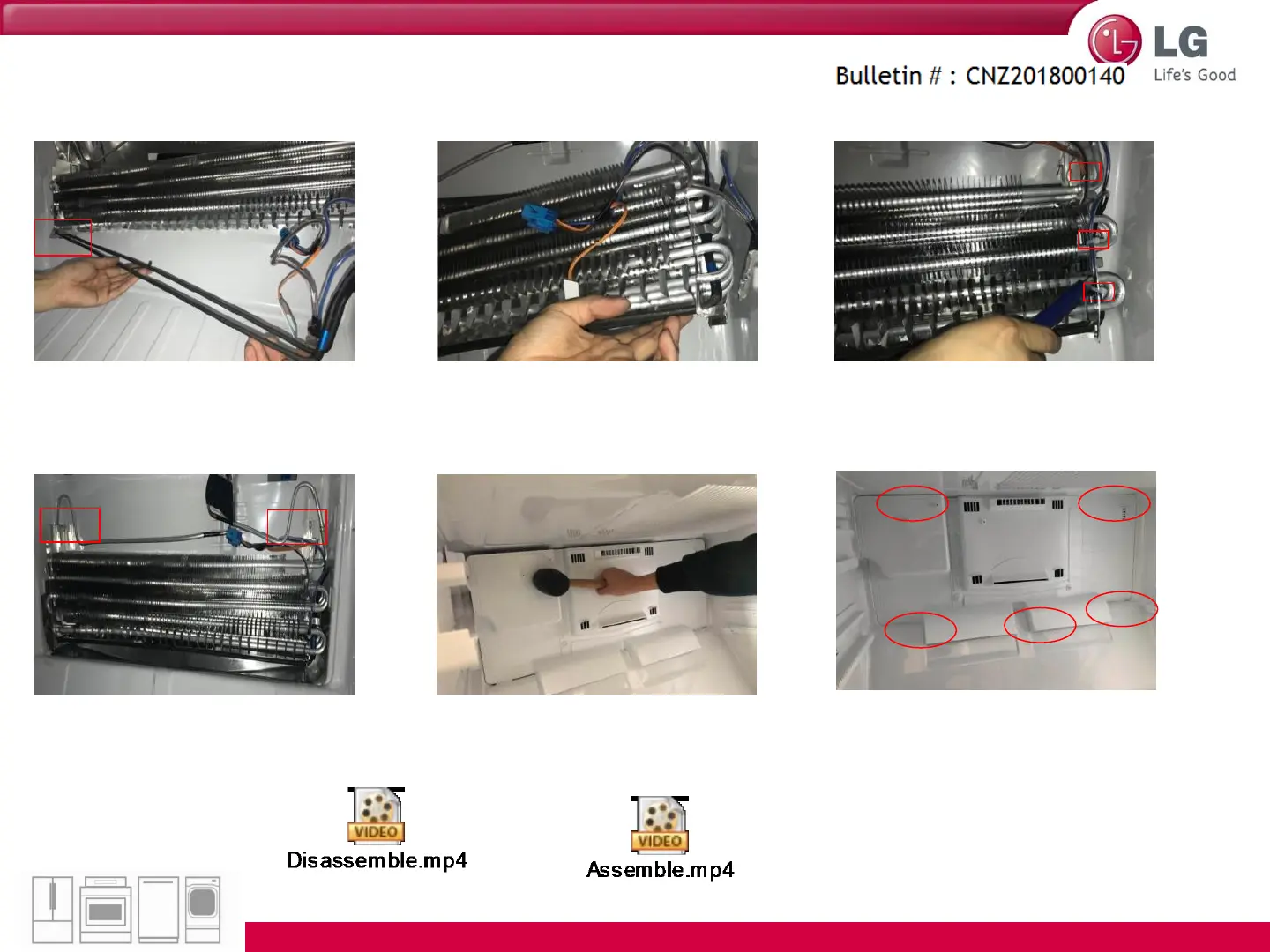

10. Replace a new sheath heater, insert to the
bracket hole at left-side bottom
11. Re-attach the sheath heater to the Evaporator 12. Re-tie lead wire and sensor at 3 initial positions
13. Put back the 2 hooks into case inner, reseat
the evaporator assembly
14. Reconnect 4 housing( 1 is for EVA, and 3
for cover assembly grill), push back in ( use
rubber hammer if possible to make grill fan
assembly seated properly)
15. Check grill fan assembly good
SVC Video guide for replace sheath heater (Double click)
27

LG LRE3061ST Specifications

General

Style	single oven, freestanding
Color	stainless steel
Total Capacity	6.3 cubic feet
Induction	no
Number of Oven Racks	2
Number of Oven Rack Positions	7
Interior Light	yes
Fuel	electric

Weight and Dimensions

Depth	28 inches
Height	47 7/16 inches
Width	30 inches
Net Weight	167 pounds
