3-17
Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes
7. Remove 4 screws from the side pandel
8. Pull the back of the side panel out from the range
approximately 10˚. Push forward and remove the
side panel.
COMPONENT ACCESS

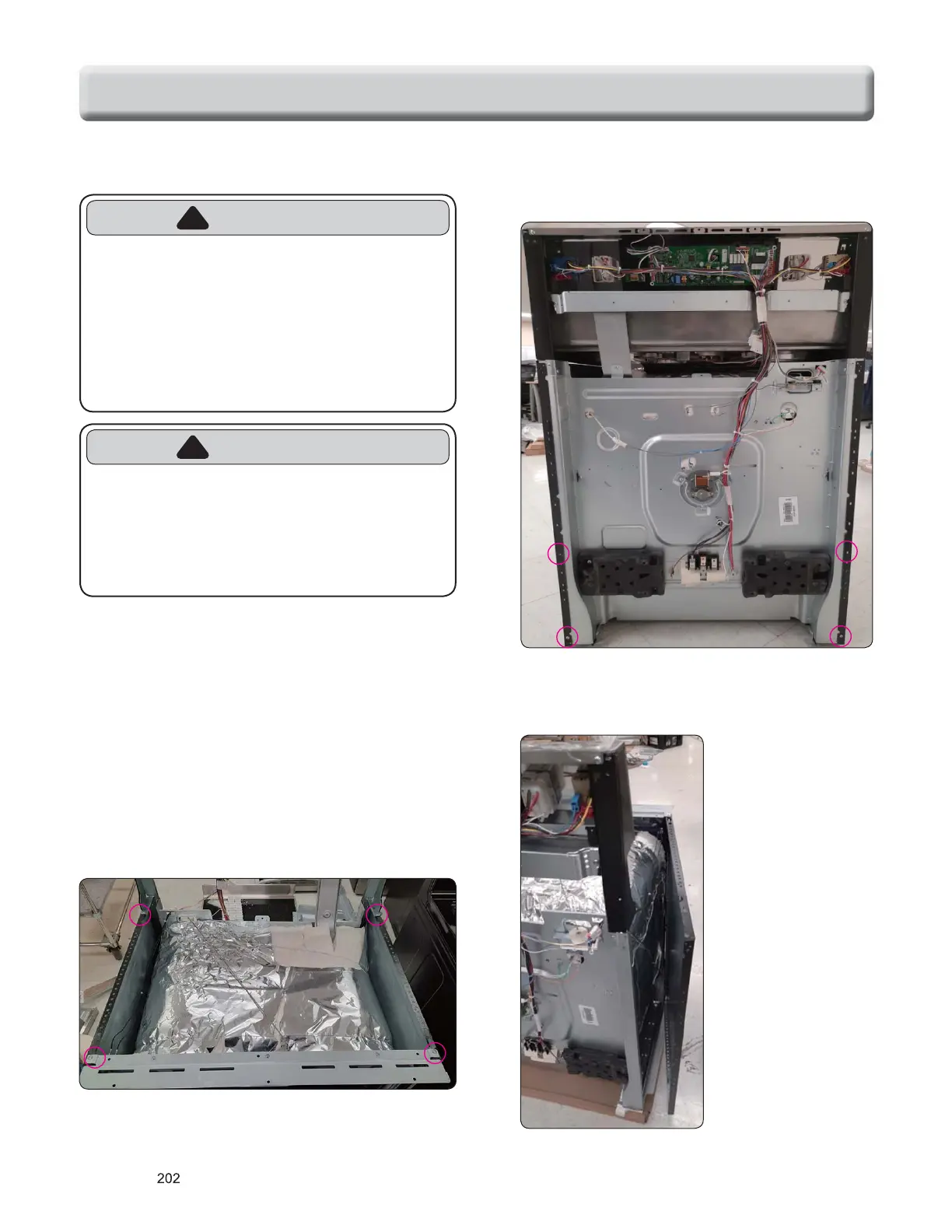

REMOVING THE SIDE PANEL
1. Turn o the electrical supply going to the range.
2. Remove the oven door from the range
(see page 3-13 for the procedure).
3. Pull the range away from the wall so you can
access the back of the unit.
4. Remove the rear, motor cover and control
assembly. (See the page 3-2)
5. Raise the cooktop assembly (See the page 3-4
For the procedure).
NOTE: put the cooktop assembly down on the
side panel which is not detached.
6. Remove 4 screws from the side panel.
WARNING
t DISCONNECT power supply cord
from the outlet before servicing.
t Replace all panels and parts before
operating.
t RECONNECT all grounding devices.
- Failure to do so can result in severe personal
injury, death or electrical shock.
!
CAUTION
t Be careful when you work on the
electric range handling the sheet
metal part.
- Sharp edge may be present and you can cut
yourself.
!
1
To Next Page
