LG LREL6323D User Manual

13
INSTALLATION
ENGLISH

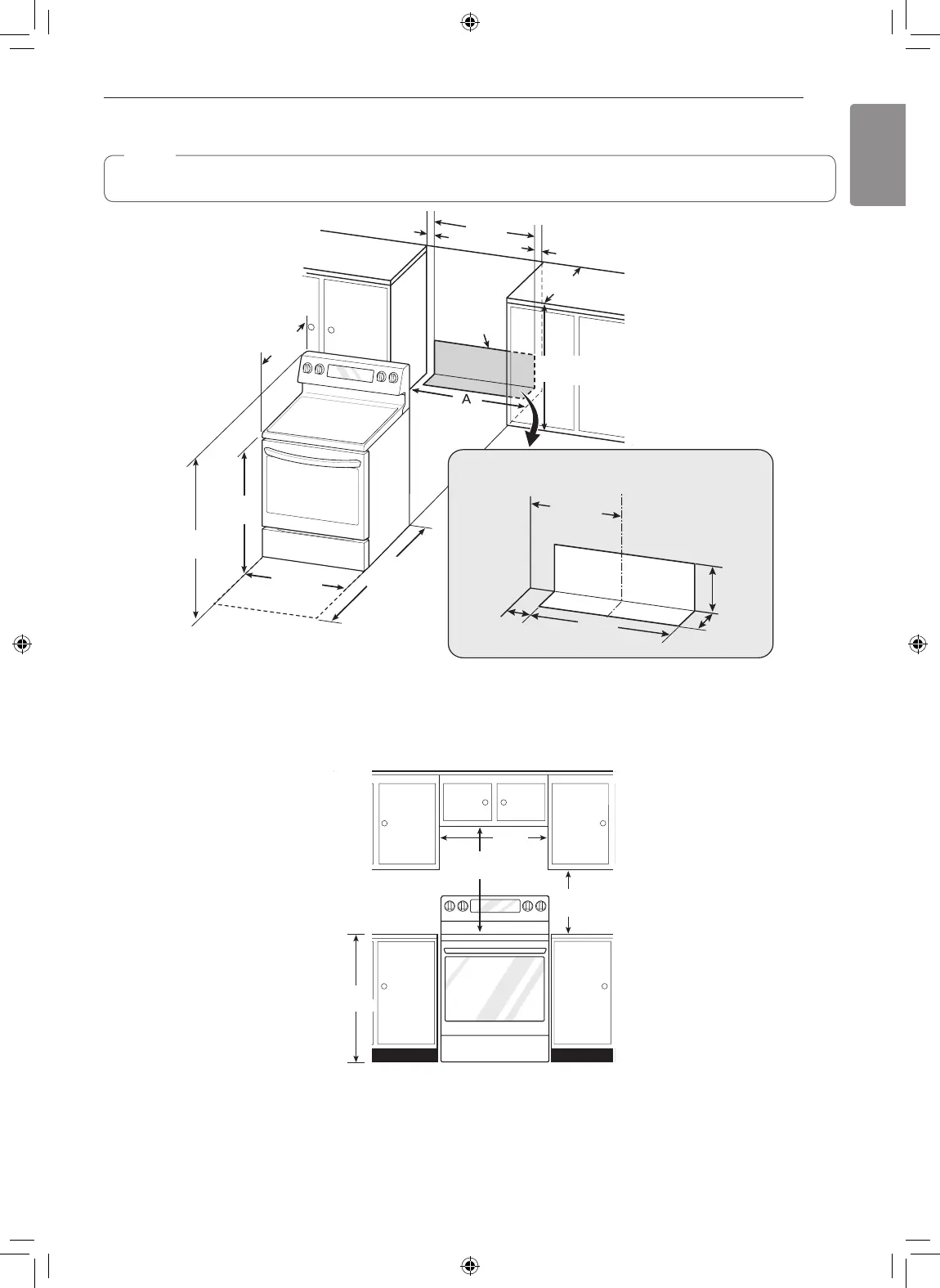

Dimensions and Clearances
NOTE
Important - Save for the use of the local electrical inspector.
3" (7.6 cm)
24"
(61 cm)
36"
(91.4 cm)
29
7
/
8
"
(75.9 cm)
25"
(63.5 cm)
36"
(91.4 cm)
3" (7.6 cm)
Acceptable
electrical
outlet area
Normal countertop
depth
Countertop
height
Cabinet
opening
15" (38 cm)
6"
(15.2 cm)
3"
(7.6 cm)
24"
(61 cm)
2
1
/
2
"
(6.3 cm)
Wall
Center
Cabinet
46
1
/
2
"
(118.1 cm)
Depth with door closed
(includes door handle)
28
29
/
32
"
(73.4 cm)
Depth with
door open
48
1
/
2
"
(123.3 cm)
A = 30" (76.2 cm) For U.S.A
= 30" (76.2 cm) ~ 31" (78.7 cm) For CANADA
For installation in Canada, a free-standing range is not to be installed closer than
15
/
32
" (12 mm) from any
adjacent surface.
30"
(76.2 cm)
36"
(91.4 cm)
**15"
(38.1 cm)
*30" (76.2 cm)
Minimum
Minimum Dimensions
* 30" (76.2 cm) minimum clearance between the top of the cooking surface and the bottom of an unprotected
wood or metal cabinet; or 24" (60.9 cm) minimum when bottom of wood or metal cabinet is protected by not less
than
1
/
4
" (6.4 cm) flame retardant millboard covered with not less than no. 28 MSG sheet steel, 0.015" (0.381 mm)
stainless steel, 0.024" (0.610 mm) aluminum or 0.020" (0.508 mm) copper.
** 15" (38.1 cm) minimum between countertop and adjacent cabinet bottom.
