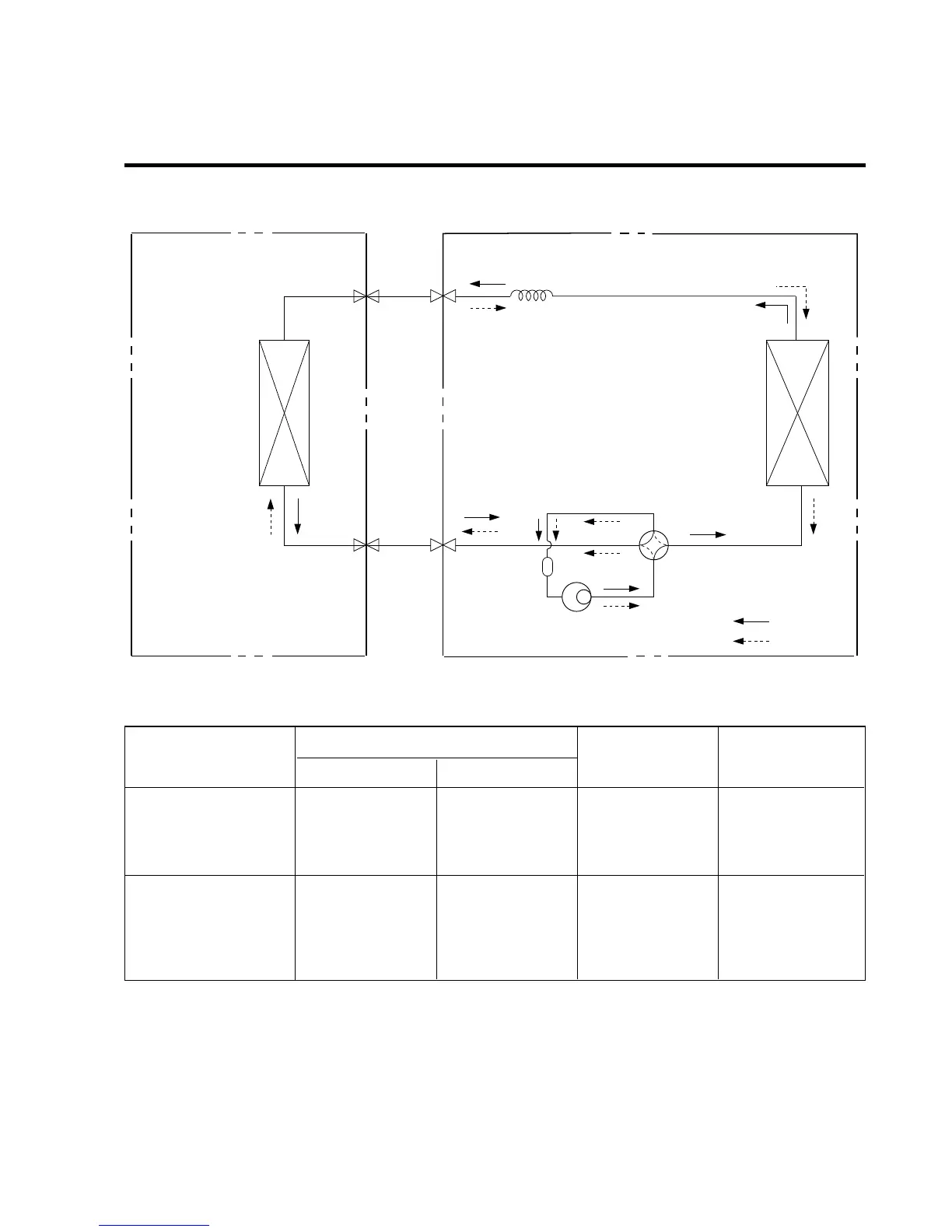

Refrigeration Cycle Diagram
ƒ¡10ƒ¡
Pipe size(Diameter:§j)
MAX. Max
MODEL Piping length Elevation
Gas Liquid
(m) (m)
LS-P0760CL/P0760HL
LS-P0820CL 3/8" 1/4" 7 5
LS-P0960CL/P0960HL
LS-S0960CL/S0960HL
LS-S1120CL
LS-S1260CL/S1260HL
LS-S1420CL/S1421CL
INDOOR UNIT OUTDOOR UNIT
HEAT
EXCHANGE
(EVAPORATOR)
HEAT
EXCHANGE
(CONDENSOR)
COMPRESSOR
ACCUMU
LATOR
GAS SIDE
3-WAY VALVE
LIQUID SIDE
2-WAY VALVE
CAPILLARY TUBE
COOLING
HEATING
REVERSING
VALVE
(Heating Model Only)
1/2" 1/4" 7 5
