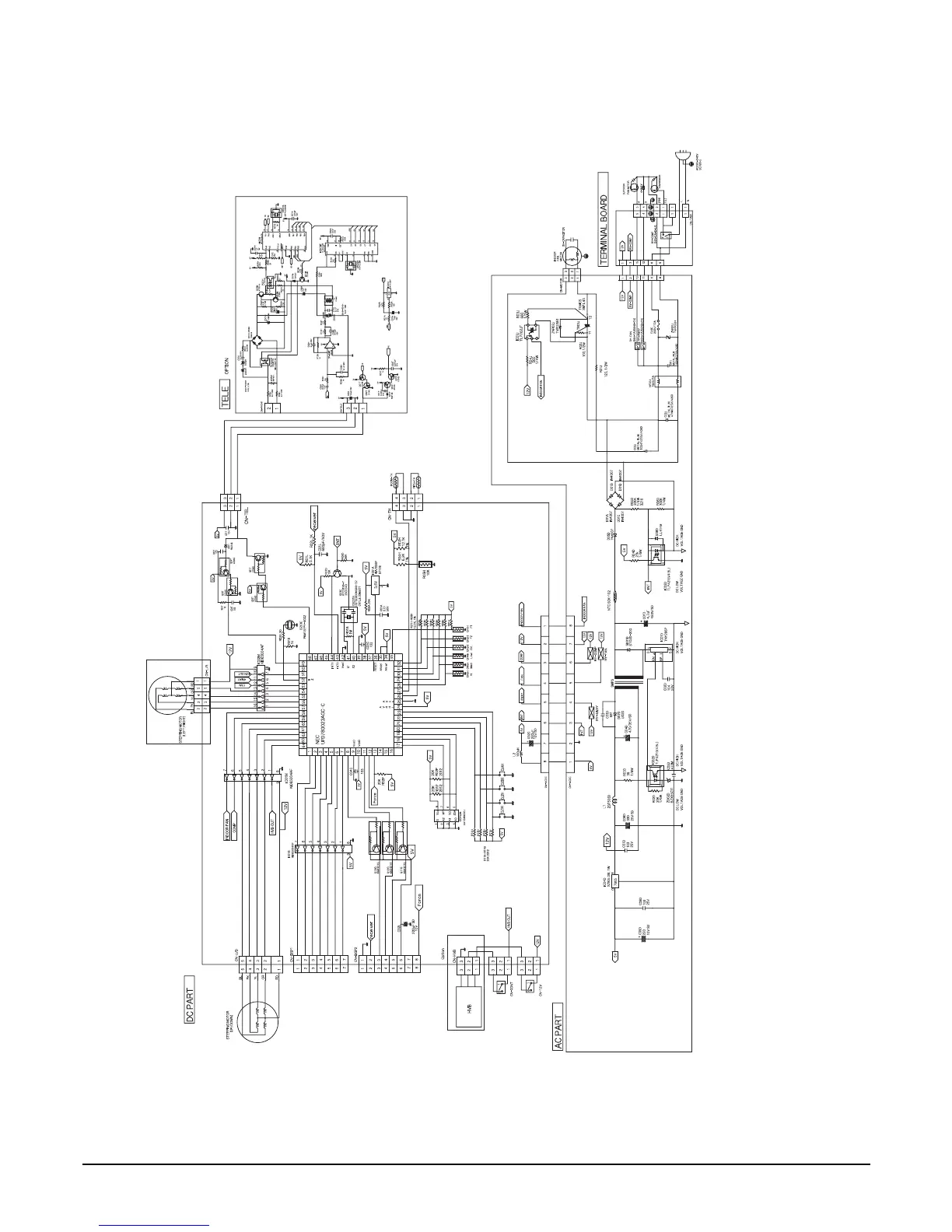

LG LS-T246AAL - Schematic Diagrams (Continued); Cooling Model Schematic (HVB Type)

- 57 -
Copyright ©2009 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
• HVB TYPE(PLASMA)
