LG LS-T246AAL - Schematic Diagrams; Cooling Model Schematic (LED Type)

- 56 -
Copyright ©2009 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only

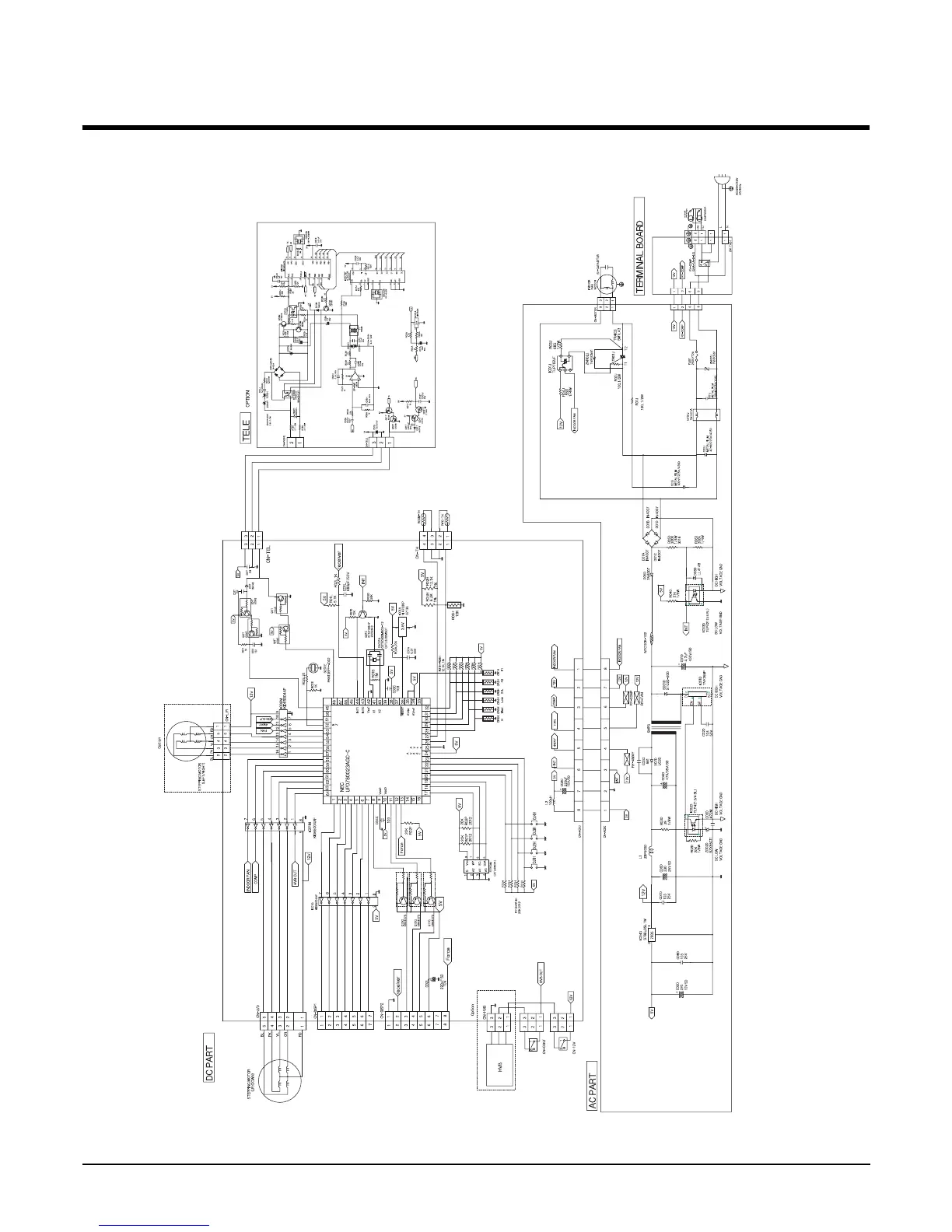

Schematic Diagram
Cooling Model
• LED TYPE
