- 58
-
Cop
yright ©2009 LG Electronics. Inc. All right reser
ved.
Only f
or training and ser
vice pur
poses
LGE Internal Use Only

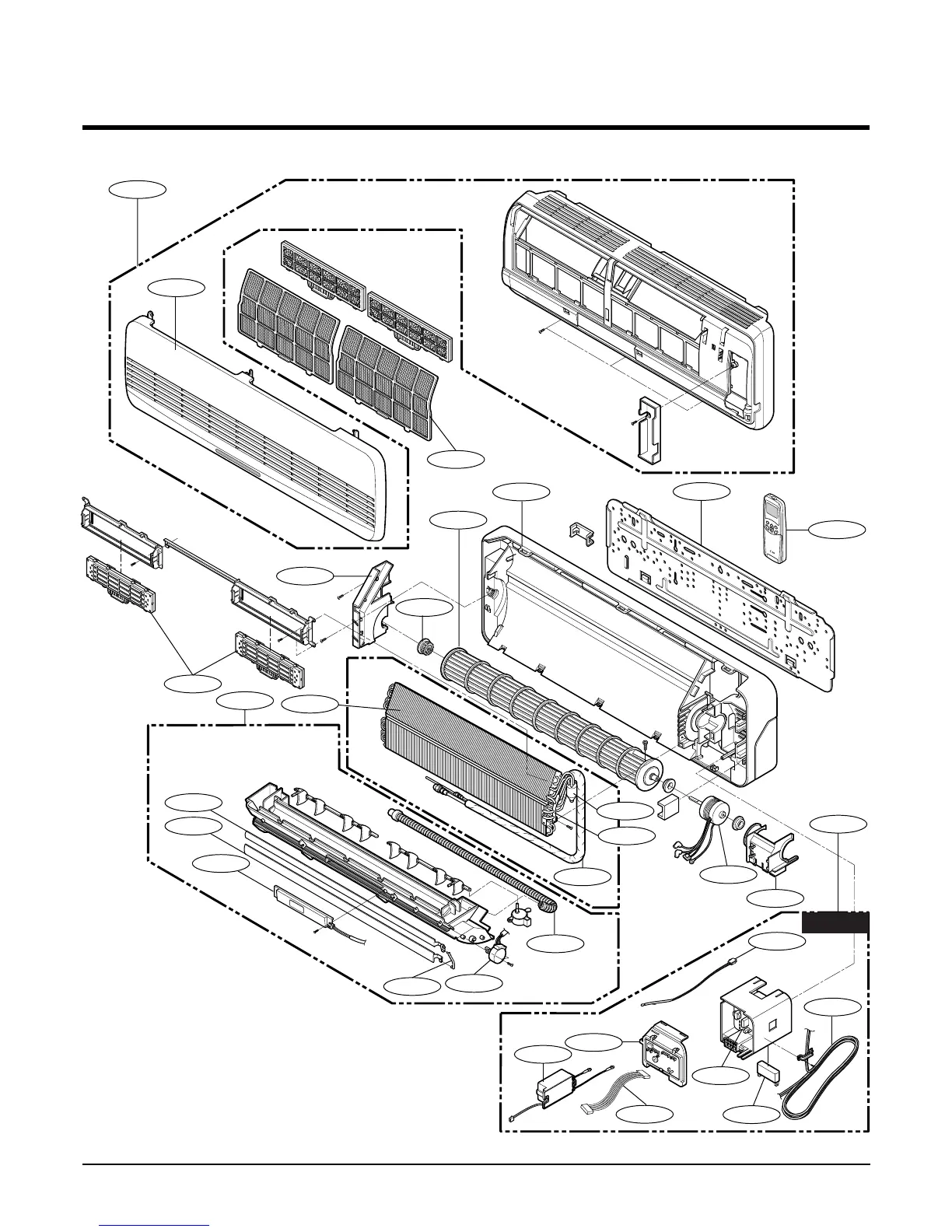

Exploded Vie
w and Replacement P
ar
ts List
1. Indoor Unit
346810
35211B
135516
W0CZZA
263232
352150
266090
146811
145200
354210
263230
264110
268711C
131410
149304
359011
342800
147581A
147581B
268711A
159830
135311
135316
267110
249951
733010
Option Parts
135314
152302
268711B
TYPE A
Part For
Plasma Model
Part For
Plasma Model
352116
352115
57
59
Table of Contents
Room Air Conditioner
1
Table of Contents
2
Details of LG Model Name(2002)
3
Details of LG Model Name(2003~)
4
Functions
5
Remote Control
6
Product References
8
Dimensions
9
Refrigeration Cycle Diagram
11
Wiring Diagram
12
Operation Details
13
Defrost Control
14
Sleep Timer Operation
17
Forced Operation
18
Test Operation
18
Auto Restart
18
Display Function
20
Self-Diagnosis Function
20
Installation
21
Flaring Work and Connection of Piping
23
Connecting the Cable between Indoor Unit and Outdoor Unit
28
Checking the Drainage and Forming the Pipings
30
Test Running
31
Pump down
31
Operation
32
Disassembly of the Parts (Indoor Unit)
34
Caution Label
35
2-Way, 3-Way Valve
37
Air Purging
38
Pumping down
39
Gas Charging
43
Cycle Troubleshooting Guide
44
Electronic Parts Troubleshooting Guide
45
Electronic Control Device
52
Schematic Diagram
56
Exploded View
58
