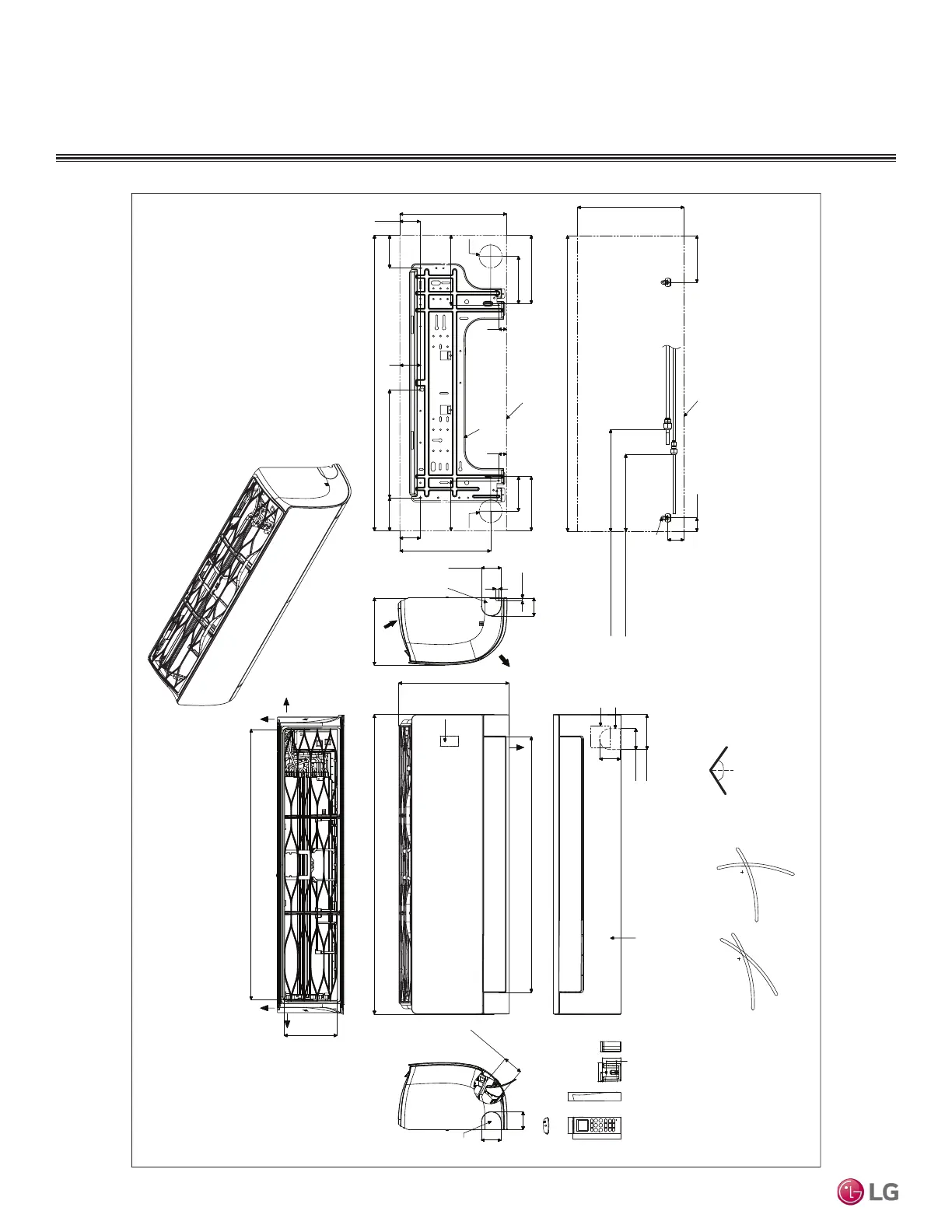

INDOOR UNIT DIMENSIONS
LSN090HFV3, LSN120HFV3, LSN090HEV2, LSN120HEV2,
LSN090HXV2, LSN120HXV2
Unit : Inch (mm)
[30-3/16 (767)]
32-15/16 (837)
3-5/8 (92)
2-3/8 (60)
2-5/16
(59)
12-1/8 (308)
7-7/16 (189)
32-15/16 (837)
1-1/2 (38)
Approx. 11-11/32 (288) to gas pipe
Approx. 8-19/32 (218) to liquid pipe
1-27/32(47)
5-3/16 (132)
In Case of Left Side Piping
Unit Outline
Connecting Gas/Liquid Pipe
12-1/8 (308)
Decoration Cover
Display
and
Remote
Controller
Signal
Receiver
Terminal Block
for Power
Supply and
Communication
Drain Hose Connection
2-7/32(56)
11/32 (9)
Installation Plate
Knock-Out
Refrigerant,
Drain Pipe
and Cable
Routing Hole
5/16 (8)
2 (51)
Air Intake
Air Outlet
Bottom
28-5/32 (715)
Air Outlet Hole
* If airflow direction control is available,
Cooling Heating
Up & Down Left & Right
Air Outlet Hole
Air Intake Hole
[5-29/32 (150)]
Air Intake Hole
Rear
Rear
Right
Left
55°
15°
15°
85°
45°
55°
32-15/16 (837)
2-15/32
(63)
12-1/16 (306)
3-21/32 (93)
10-11/32 (263)
5-31/32 (152)
3-27/32 (98)
5-9/32 (134)
12-1/8 (308)
3-11/16 (94)
7-5/8 (194)
Unit Outline
Fixing the Installation Plate, Drilling Hole
29/32 (23)
Ø2-9/16 (65)
1-3/32 (50.2)
1-1/16 (26.2)
2-7/16 (61.5)
1-7/16(33.5)
1/4(6) x 1/8(3)
1/8(3) x 1/4(6)
5/8(15.3)
1-9/32(32.7)
2-13/32(61)
5-31/32 (152)
1-1/4 (31)
2-7/32 (56)
2 (51)
2-7/32 (56)
5-19/32 (142)
Ø2-9/16 (65)
7-27/32 (199)
29/32 (23)
2-15/32 (63)
2-17/32 (64)
Knock-Out
Refrigerant,
Drain Pipe
and Cable
Routing Hole
Knock-Out
Refrigerant,
Drain Pipe
and Cable
Routing Hole
To Next Page
