ELECTRICAL CONNECTIONS

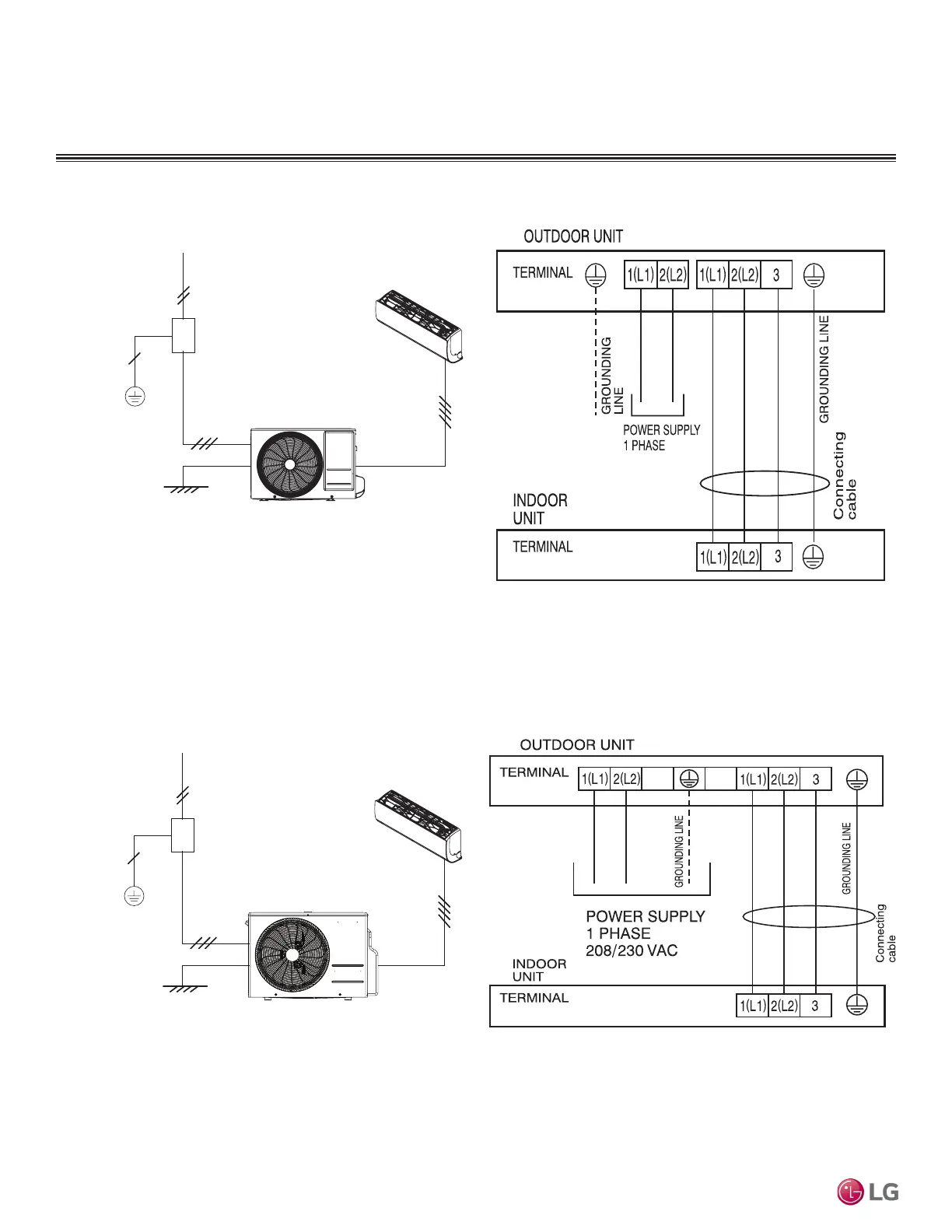

Figure 18: LS090HEV2, LS120HEV2, LS090HFV3, LS120HFV3
General Power / Communications System Schematic.
Figure 19: Terminal Block Wiring Diagram LS090HEV2, LS120HEV2,
LS090HFV3, LS120HFV3
Figure 20: LS180HEV2, LS240HEV2, LS180HFV3, LS240HFV3
General Power / Communications System Schematic. .
Power Supply
Circuit Breaker
Ground Wiring
Outdoor Unit
Indoor Unit
Power Supply
Circuit Breaker
Ground Wiring
Outdoor Unit
Indoor Unit
Figure 21: Terminal Block Wiring Diagram LS180HEV2, LS240HEV2,
LS180HFV3, LS240HFV3
208/230 VAC
