Single Zone Mega Wall Mounted Engineering Manual
Due to our policy of continuous product innovation, some specications may change without notication.
©
LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG ” is a registered trademark of LG Corp.
LSU180HEV1

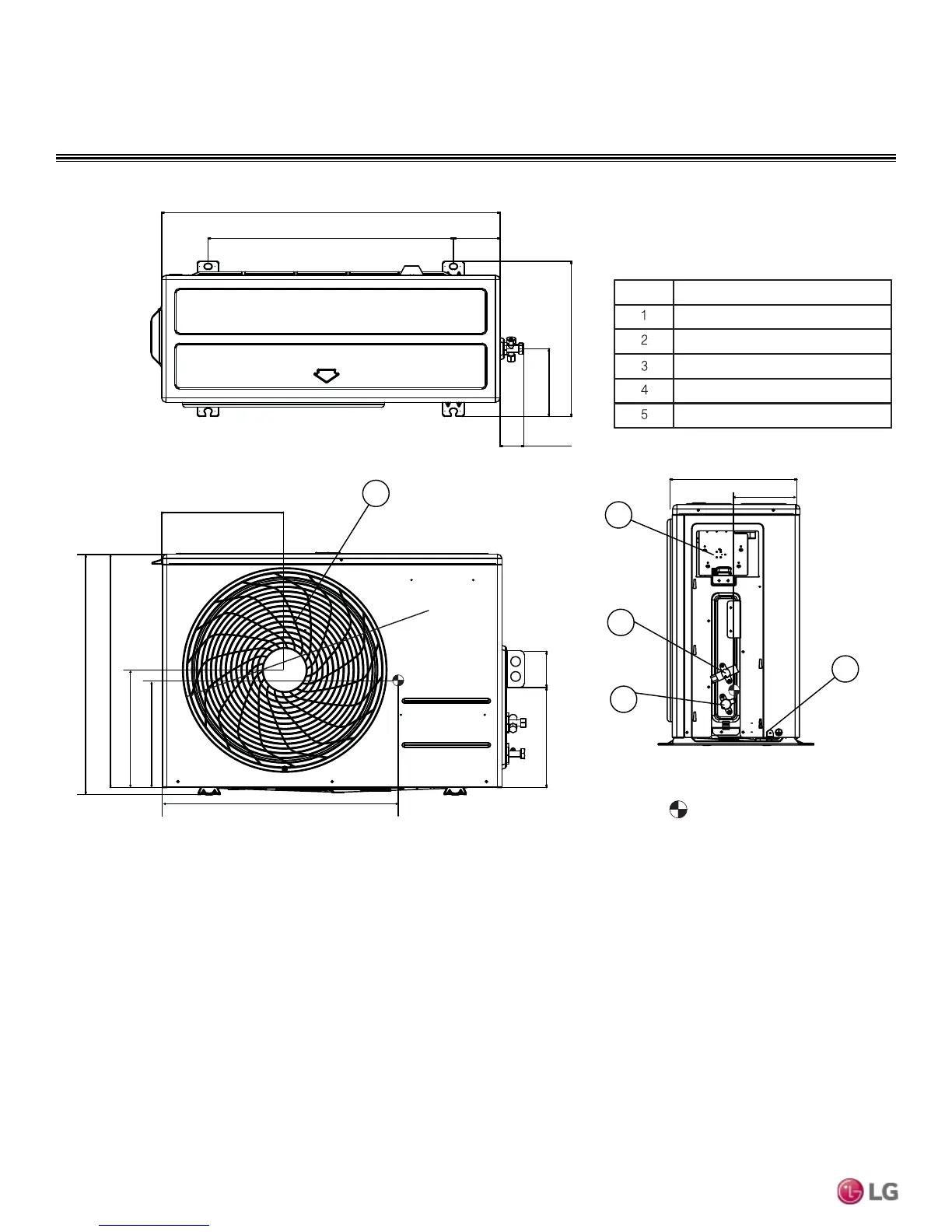

OUTDOOR UNIT DIMENSIONS
30-5/16
22
4-3/16
13-15/16
6-1/8
2-1/8
10-15/16
1
20-15/16
21-1/2
10-1/2
8 -1/8
4
3
2
5
11-5/16
Item No. Part Name
2-13/16
Ø
18-5/16
Unit: Inch
Center of Gravity
9-3/8
20
5-3/4
Discharge Air Grille
Gas Pipe Connection Port
Liquid Pipe Connection Port
Control Box
Ground Terminal
