ELECTRICAL WIRING

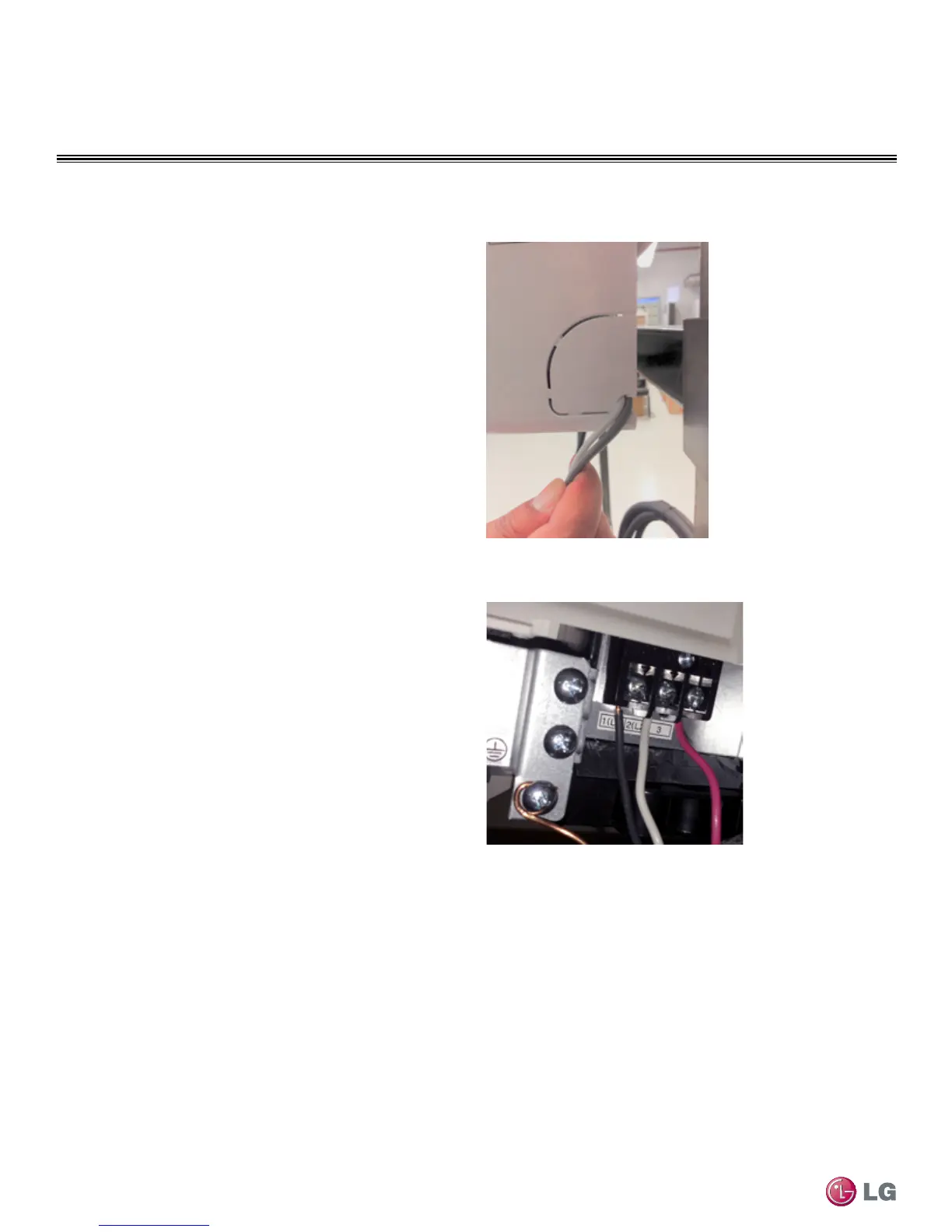

Figure 83: Indoor Unit Knockout (Communication Wires)
Figure 84: Indoor Unit Terminal Block with Grounding Cable
(Example Only)
Indoor Unit Electrical Connections
Connecting Indoor Unit Electrical Wiring - Continued
5. When done, reattach the bottom panel to the indoor unit, being
careful to align panel using the rear tabs.
• You might need to give the panel a gentle tap with the palm of your
hand to be sure it engages at the bottom.
6. Using a phillips screwdriver, reattach the screws to the bottom
panel and secure.
7. Once screws are in place, re-snap the latches over the screws.
• Refer back to Figure 80 as an example.
8. If all other piping and electrical wiring to the outside unit has been
completed at this stage, you can turn the system on to test.
• If you have not completed the piping connections, do not turn pow-
er on at this time and proceed to complete all other piping, (along
with drain hose) and wiring to the system.
