LG LS240HSV3 Installation Manual

69
Electrical Wiring
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
ELECTRICAL WIRING
Control Cover
Bottom Panel
Electrical Wiring
Knockout
Indoor Unit
HLV
1(L1) 2(L2)
3
1(L )2(N )
3
Power Connection Cable
Grounding Cable

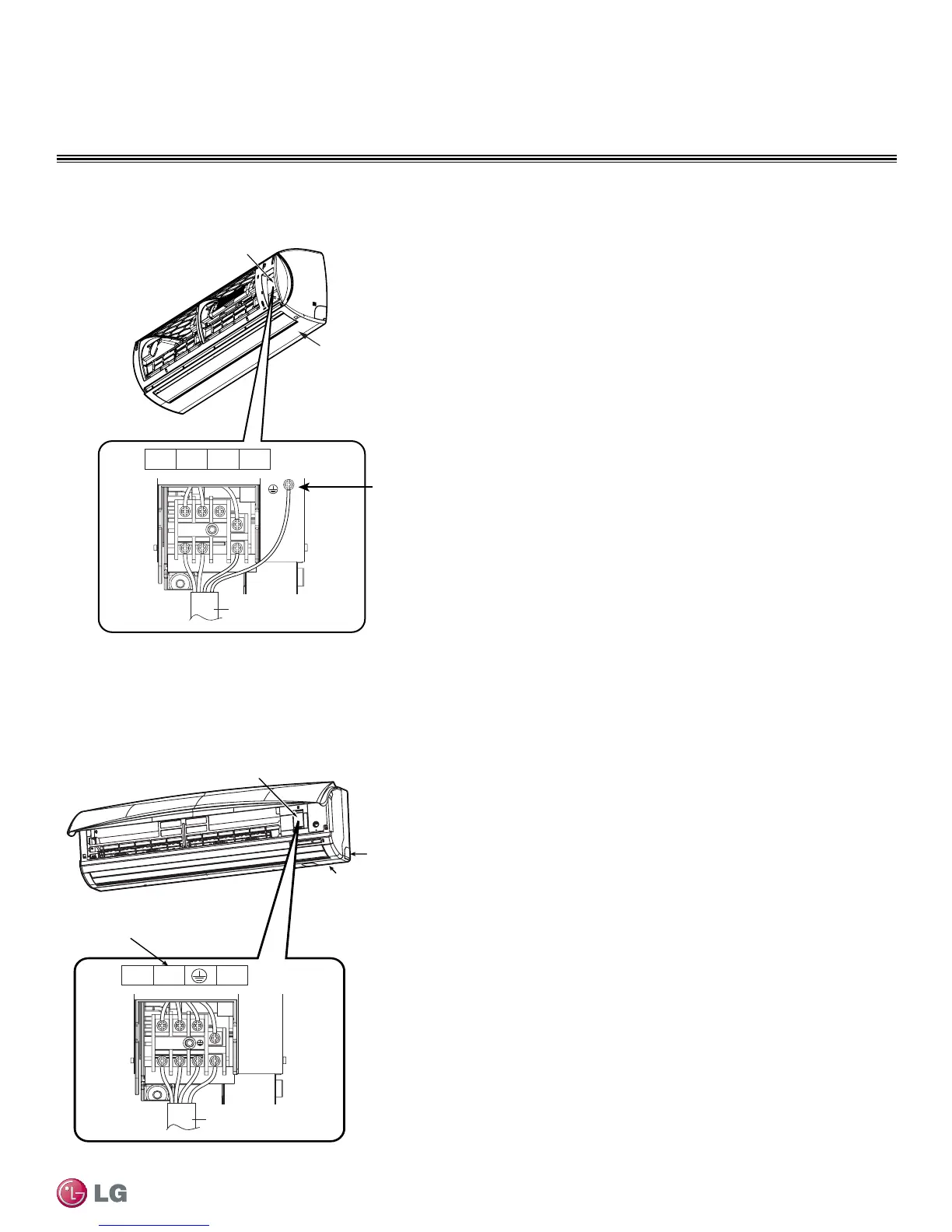

Figure 85: HLV Indoor Units - Terminal Block Connections
Figure 86: HV3 and 240HSV3 Indoor Units - Terminal Block Connections
Indoor Unit Electrical Connections
Terminal Block Connection for HLV
See Figure 85 for specific terminal block wiring for all following
Single Zone models:
LSN240HLV
LSN300HLV
LSN360HLV
Terminal Block Connection for HV3
See Figure 86 for specific terminal block wiring for all following
Single Zone models:
LSN307HV3
LSN360HV3
Terminal Block Connection for
240HSV3
See Figure 86 for 240HSV3 Single Zone terminal block connection.
The connections are also identical for LSN307HV3 and LSN360HV3
Single Zone models.
1(L1) 2(L2) 3
1(L1) 2(L2 )
3
Power Connection Cable
Control Cover
307HV3, 360HV3
240HSV3
Knockout Cover
Bottom Panel
Terminal Block Connections
