Single Zone High Efciency, Standard, Extended Pipe and Mega Wall Mount Installation Manual
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
ELECTRICAL WIRING
Terminal Block Connection for
091HSV3, 121HSV3, 181HSV3
See Figure 87 for specific terminal block wiring for all following
Single Zone models:
LSN091HSV3
LSN121HSV3
LSN181HSV3
Terminal Block
Terminal Block
Expanded View
Grounding
Cable
Connecting Cables
Cable Restrainer
091HSV3,121HSV3
181HSV3
Indoor Unit Electrical Connections

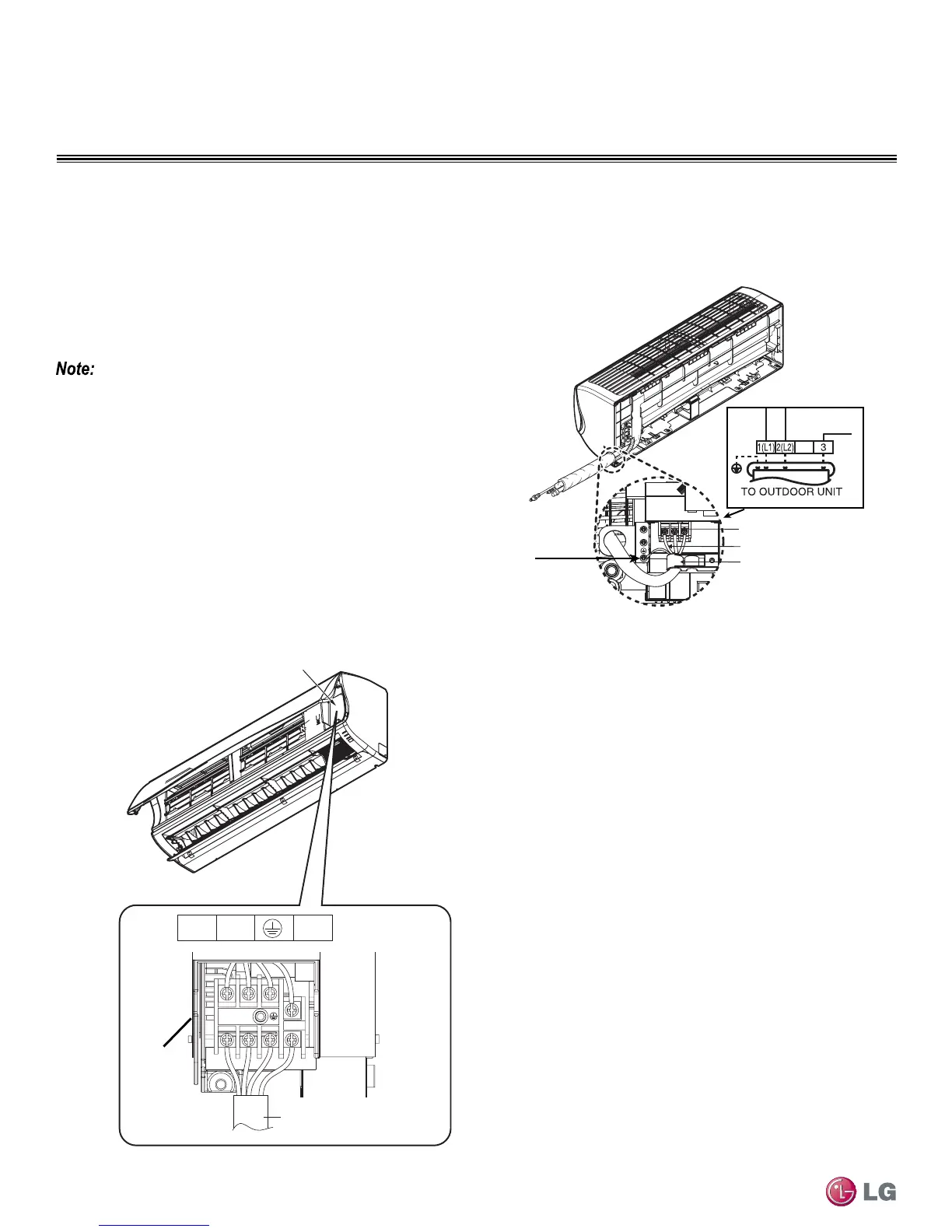

Figure 87: 091HSV3, 121HSV3, 181HSV3 Indoor Units - Terminal
Block Connections
Figure 88: Mega 090HEV, 120HEV, 180HEV, 240HEV Indoor Units
- Terminal Block Connections
• Pay special attention to the location of the grounding cable and the
cable restrainer around the other electrical/communication cables
when connecting.
• Note that the terminal block is located behind the drain hose and
bundled piping on these units.
Terminal Block Connection for Mega
090HEV, 120HEV, 180HEV, 240HEV
See Figure 88 for specific terminal block wiring for all following
Single Zone models:
LSN090HEV
LSN120HEV
LSN180HEV
LSN240HEV
Control Cover
1(L1) 2(L2) 3
1(L1) 2(L2)
3
Power connecting cable
Terminal
Block
090HEV, 120HEV
180HEV, 240HEV
