LG LS240HSV3 Installation Manual

74
Single Zone High Efciency, Standard, Extended Pipe and Mega Wall Mount Installation Manual
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
ELECTRICAL WIRING
Outdoor Unit Electrical Connections
Terminal Block Connection for
090HEV, 120HEV
See Figure 93 for specific terminal block wiring for all following
Single Zone outdoor unit models:
LSU090HEV
LSU120HEV
Conduit panel
cover
Tu bing cover
Terminal block
Outdoor Unit
090HEV, 120HEV
1(L1) 2(L2)1(L1) 2(L2)
3
Power
connecting
cable
Power
cord
Cord clamp

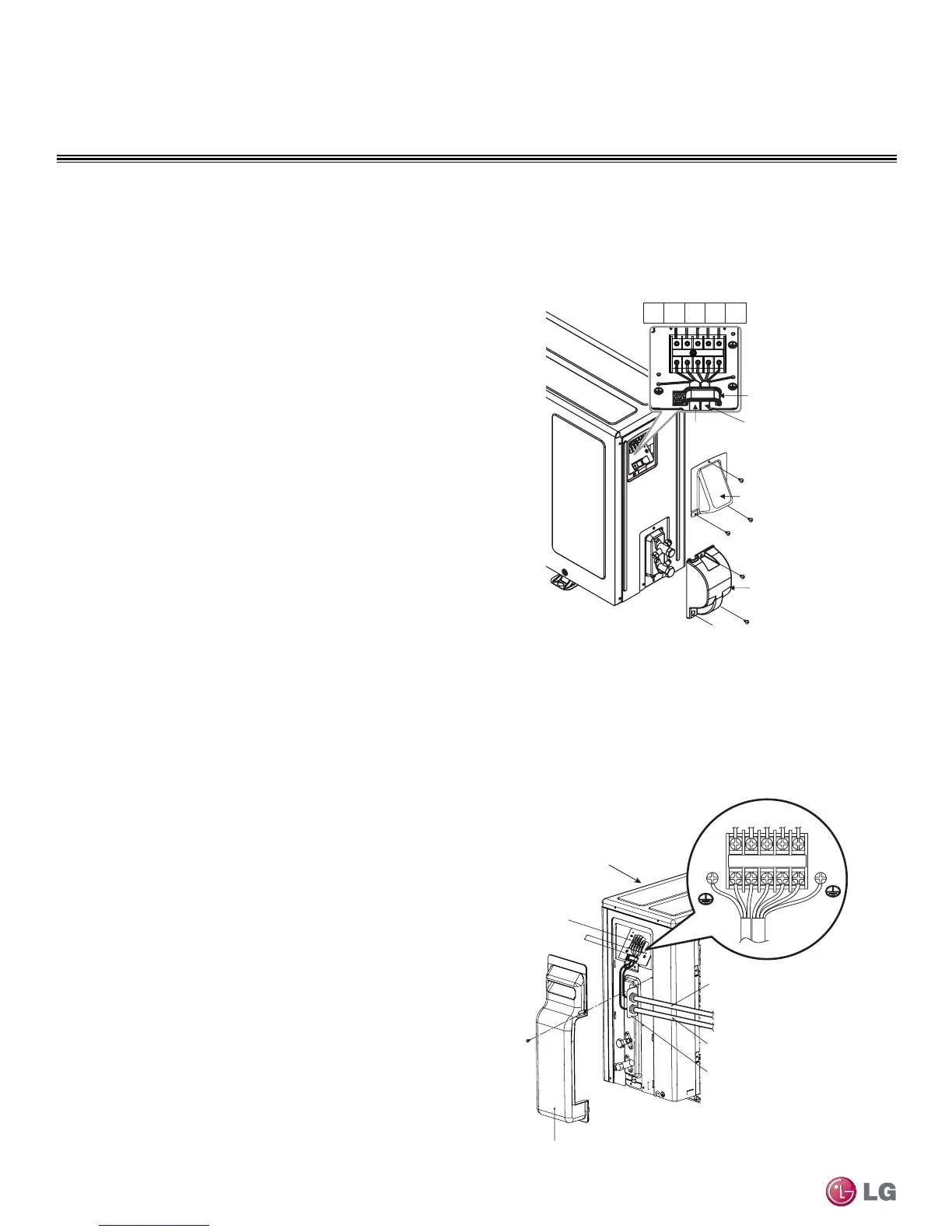

Figure 93: 090HEV, 120HEV Outdoor Unit - Electrical Connections
Figure 94: 180HEV Outdoor Unit - Electrical Connections
Terminal Block Connection for
180HEV
See Figure 94 for specific terminal block wiring for all following
Single Zone outdoor unit models:
LSU180HEV
Terminal block
Conduit panel
Outdoor unit
Tubing cover
Over 0.2"
Power supply cord
Connecting cable
1(L1) 2(L2) 1(L1) 2(L2) 3
180HEV
Connecting Outdoor Unit Electrical Wiring - Continued
