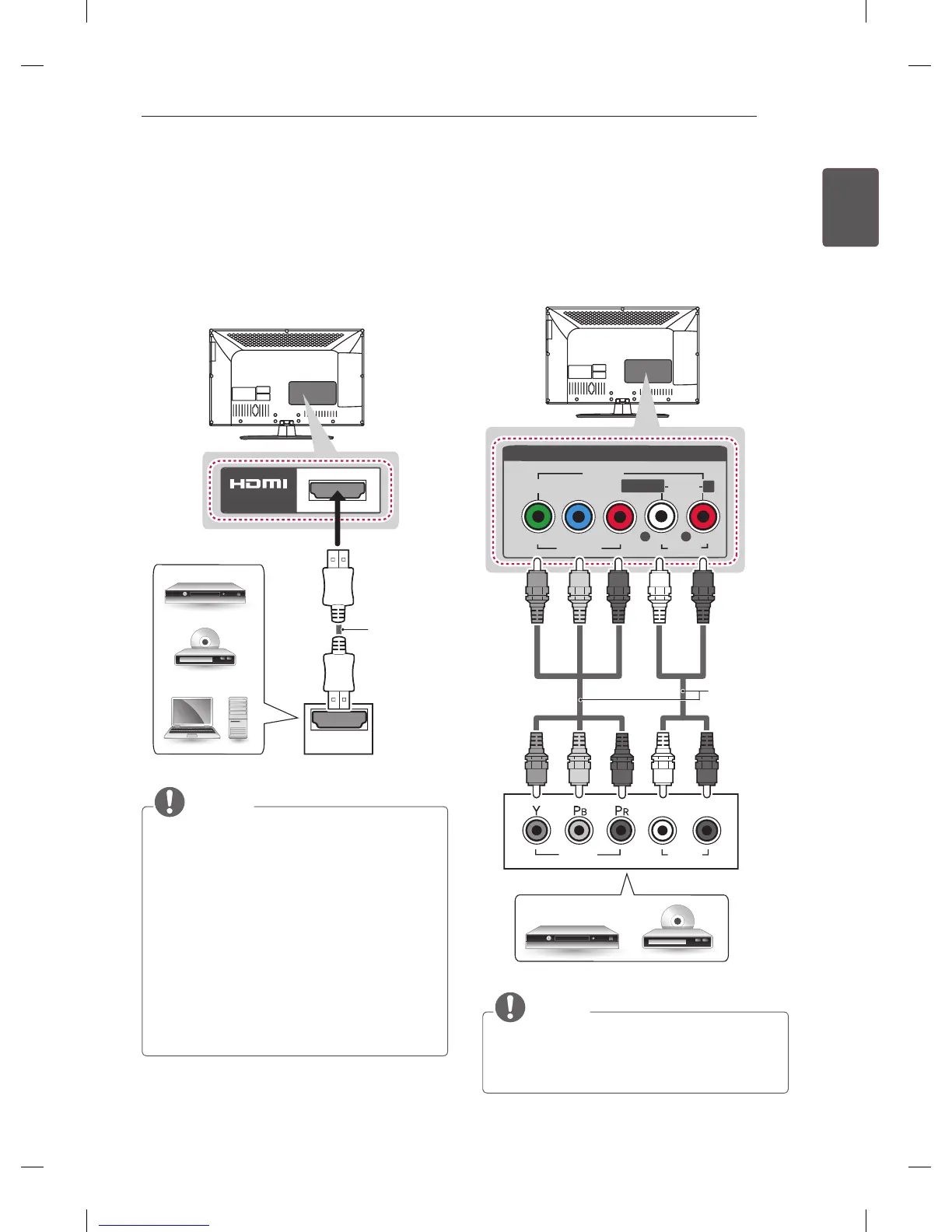

MAKING CONNECTIONS
HDMI connection
Transmits the digital video and audio signals from
an external device to the TV. Connect the external
device and the TV with the HDMI cable as shown.
Choose any HDMI input port to connect. It does
not matter which port you use.
HDMI
IN
(*Not Provided)
DVD/ Blu-Ray / HD Cable
Box / HD STB / PC
NOTE

It is recommended to use the TV with the
HDMI connection for the best image quality.

Use the latest High Speed HDMI™ Cable
with CEC (Customer Electronics Control)
function.

High Speed HDMI™ Cables are tested to
carry an HD signal up to 1080p and higher.

Supported DTV Audio: MPEG, Dolby Digital,
Dolby Digital Plus, HE-AAC

Supported HDMI Audio format : Dolby
Digital, PCM (Up to 192 KHz, 32k/44.1k/48k
/88k/96k/176k/192k, DTS Not supported.)
Component connection
Transmits analog video and audio signals from an
external device to the TV. Connect the external
device and the TV with a component cable as
shown.
VIDEO
PB
PR
Y
L
R
AUDIO
R
L/MONO
AV IN
VIDEO
AUDIO
COMPONENT
IN
AUDIO
VIDEO
L R
DVD/ Blu-Ray / HD Cable Box
GREEN
GREEN
BLUE BLUE
RED
RED
RED
RED
WHITE
WHITE
(*Not Provided)
NOTE

If cables are installed incorrectly, it could
case the image to display in black and white
or with distorted colour.
