MAKING CONNECTIONS

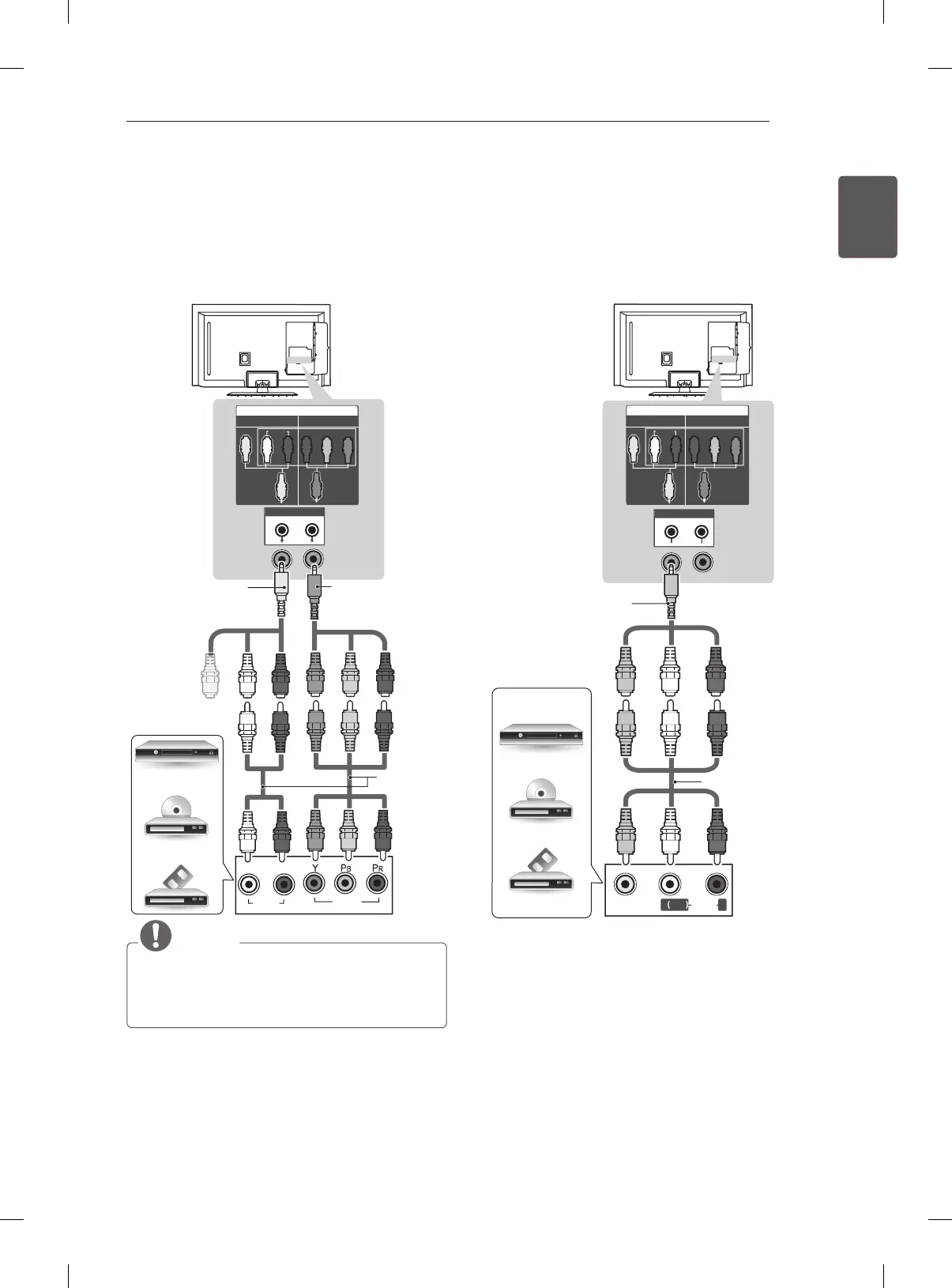

Composite connection
Transmits analog video and audio signals from an
external device to the TV. Connect the external
device and the TV with the composite cable as
shown.
VIDEO
MONO
( )
AUDIOL R
IN
COMPONENT
AV
PB
PR Y
VIDEO
AUDIO
RED
RED
RED
WHITE
WHITE
WHITE
YELLOW
YELLOW
YELLOW
VCR / DVD / Blu-Ray
/ HD Cable Box
(Use the composite video
cable provided.)
(*Not Provided)
Component connection
Transmits analog video and audio signals from an
external device to the TV. Connect the external
device and the TV with a component cable as
shown.
VIDEO
AUDIO
L R
IN
COMPONENT
AV
PR
PB Y
VIDEO
AUDIO
NOTE
y
If cables are installed incorrectly, it could
cause the image to display in black and
white or with distorted colour.
RED RED RED
BLUE BLUE BLUE
GREEN GREEN GREEN
RED RED RED
WHITE WHITE WHITE
YELLOW
DVD / Blu-Ray /
HD Cable Box
(Use the composite
video cable provided.)
(Use the component
video cable provided.)
(*Not Provided)
GREENYELLOW
YELLOW
