LG LSC27931SB Service Manual

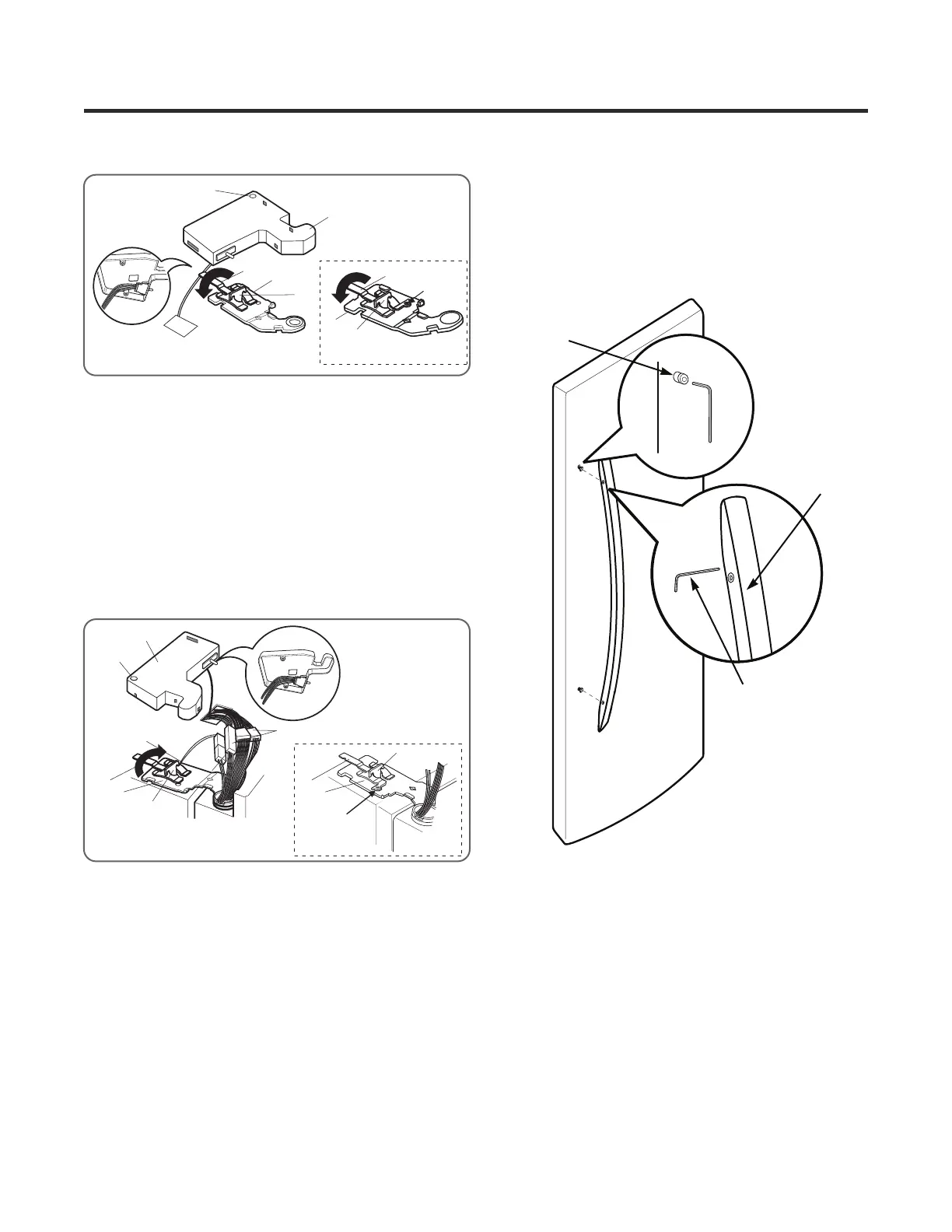

Reinstalling the rigth (Refrigerator) door
(1)
(2)
(3)
(4)
(5)
Type 2
Type 1
(3
)
(4)
(5)
Rivet
2. Fit top hinge (4) over hinge lever latch (5) into
place. Rotate lever (3) counterclockwise to secure
3. Hook tab on switch side of corner under edge of wire
opening in cabinet top. Position cover (2) into place.
Insert and tighten cover screw (1).
hinge.
1. Place the door onto the lower hinge pin.
NOTE: Regardless the type of hinge lever (3);
type1: without rivet or type 2: with rivet the
removal process is the same.
Reinstalling the left (Freezer) door
(1)
(2)
(3)
(5)
(6)
(7)
(4)
Type 2
Type 1
(5)
(6)
(7)
Rivet
2. Fit top hinge (6) over hinge lever latch (7) and into
place. Rotate lever (5) clockwise to secure hinge
3. Install the grounding screw (4) and connect all the
wire harnesses (3).
4. Hook tab on door switch side of cover (2) under edge
of wire opening in cabinet top. Position cover into
place. Insert and tighten cover screw (1).
1. Feed the water tubes through the lower hinge pin and
place the door onto the lower hinge pin.
5. Reconnect the water tubes by inserting the tubes into
the connectors.
NOTE: Regardless the type of hinge lever (5);
type1: without rivet or type 2: with rivet the
removal process is the same.
2. HANDLE REMOVAL
- 10 -
•
NOTE: If
Loosen the set screws with a 3/32” (2.38 mm) Allen
wrench and remove the handle.
the handle mounting fasteners need to be
tightened or moved, use a 1/4” (6.35 mm) Allen wrench.
Mounting
fasteners
Set screw
Allen Wrench

LG LSC27931SB Specifications

General

Brand	LG
Model	LSC27931SB
Category	Refrigerator
Language	English
