LG LSC27931SB - Icemaker and Dispenser Working Principles and Repair

1. OPERATION PRINCIPLE

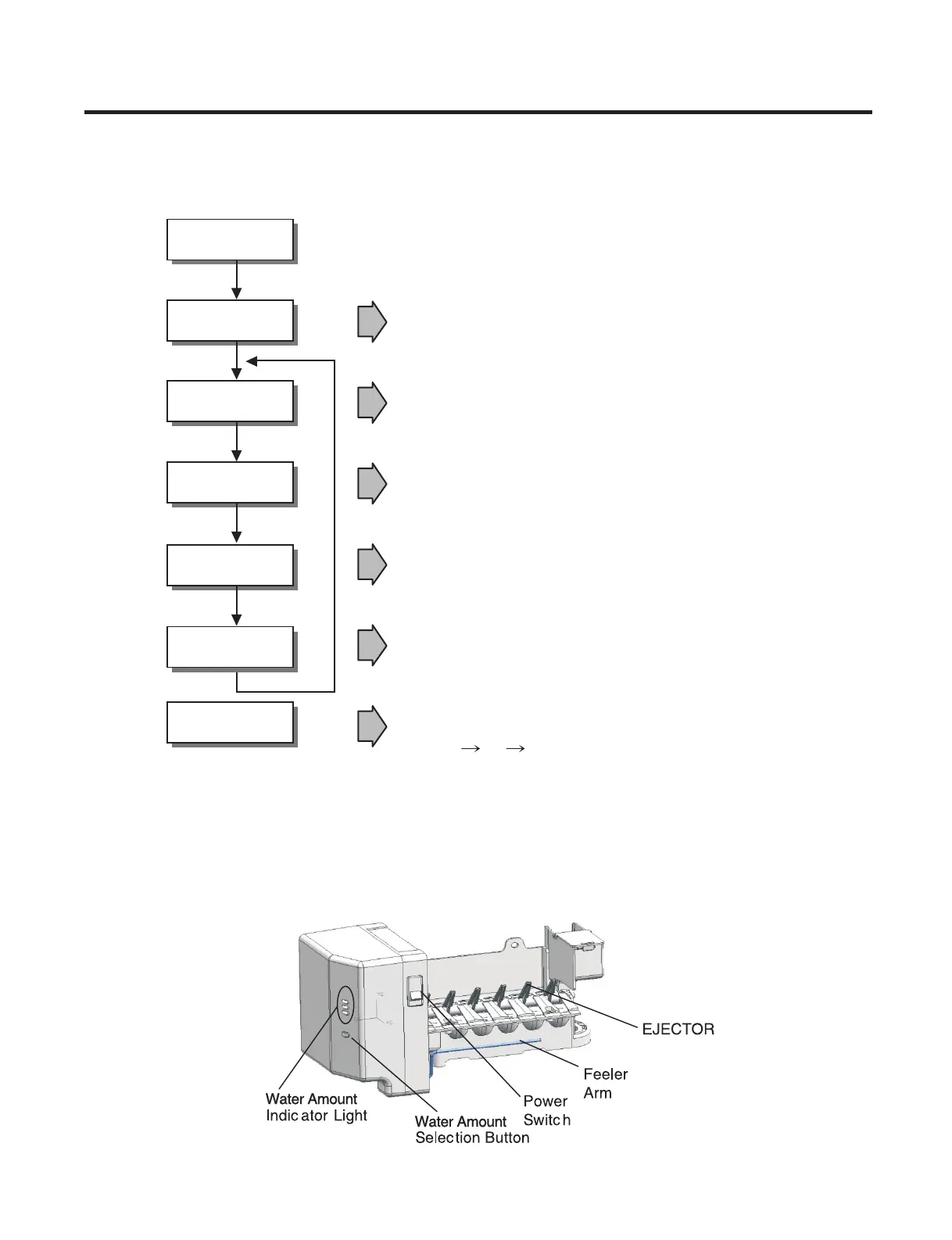

1-1. Operation Principle of Icemaker
1. Turning the Icemaker stop switch off (O) stops the ice making function.
2. Setting the Icemaker switch to OFF and then turning it back on will reset the icemaker control.
Start Position
Icemaking
Mode
Harvest
Mode
Park Position
Fill
•
Test Mode
Waits until water becomes cold after starting the
• Adjust EJECTOR to Start Position with power on.
icemaking operation.
• Runs MOTOR to drop ice from the tray into the ICE BIN.
(During harvest mode, check if the ice bin is full)
• Performs Ice Making Mode after supplying water by operating
the SOLENOID in ICE VALVE.
• To operate LINE and SERVICE, press and hold the Fill Key
for 3 seconds. The icemaker will run through 3 stages:
Harvest Fill Icemaking.
• With the detect lever, checks if the ICE BIN is full.
7.ICEMAKER AND DISPENSER WORKING PRINCIPLES AND REPAIR
- 37 -
Power On
