4. DISPENSER
1)Disconnect funnel and button assembly by pulling down
and forward.
2) Pull out the Drain
3) Grasp the lower part of the dispenser firmly, pull it out.
1
2
4) Hold the inner side of Cover Dispenser with both
hands at the handle side to pull it out forward.
1. Loose one screw with a screwdriver blade.

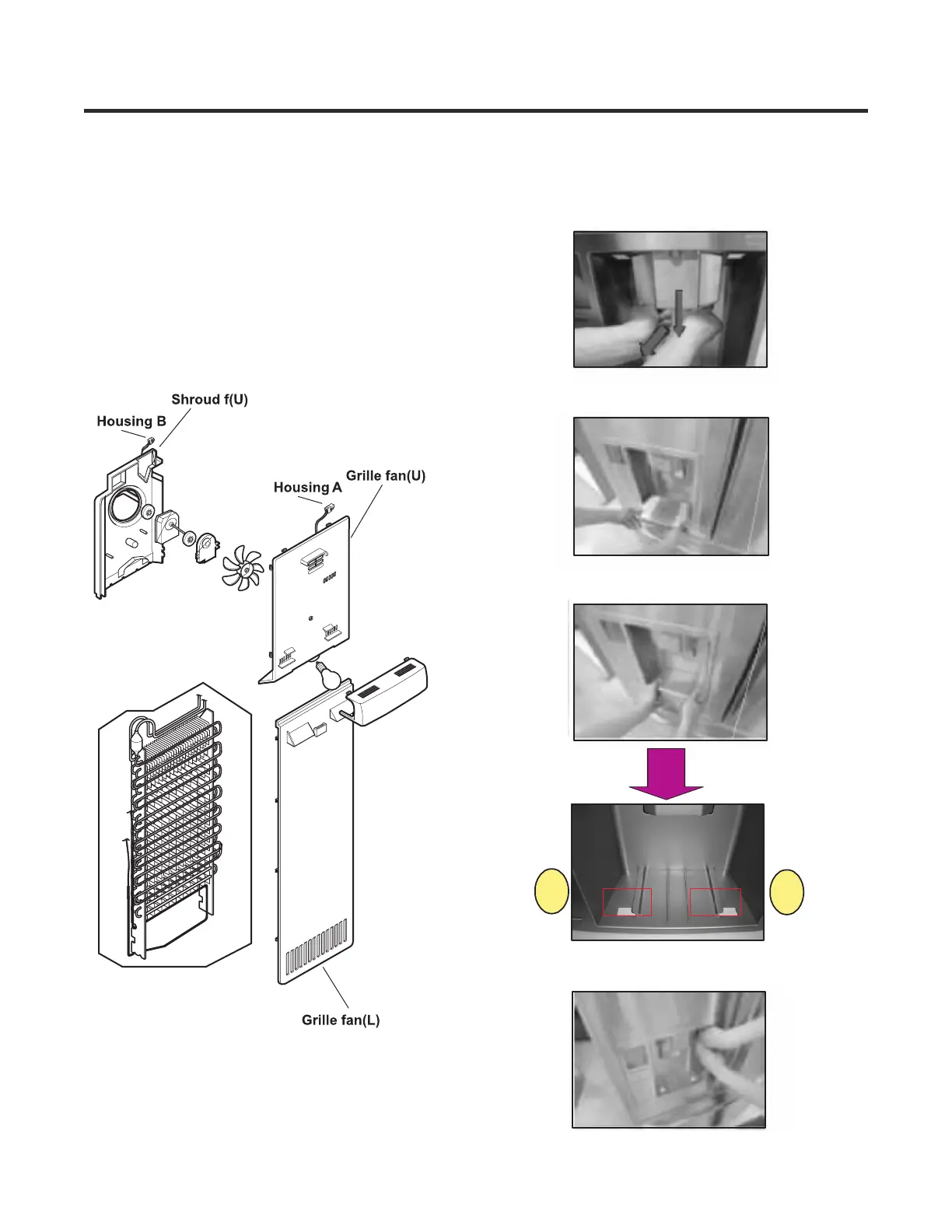

2. Disassembly of an upper grille fan: Hold upper part of an
upper grille fan (U) and pull forward carefully.
3. Disassembly of a lower grille fan: Hold upper part of a
lower grille fan and pull forward carefully.
4. Disassembly of an upper freezer shroud: Hold lower part,
oull forward and disconnect housing A and B.
5. Check foam sticking conditions around a shroud, upper
freezer and lower freezer during assembling. If damaged
torn, or badly stuck, assemble with a new one afer sealing
well.
3. FAN SHROUD GRILLE
- 11 -
